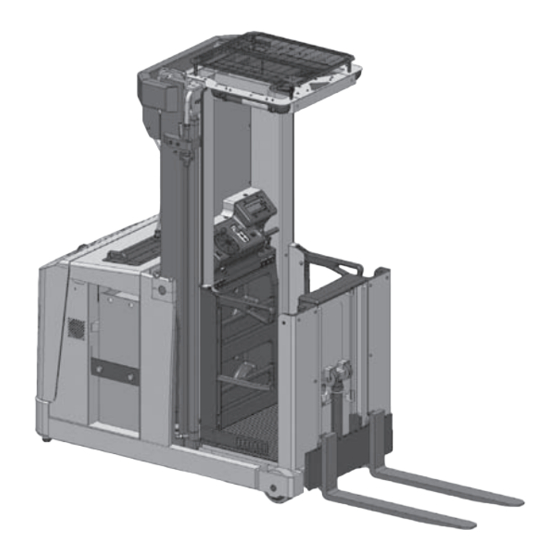

Part No.: 1657374 Revision: 0 (06/2008) Technical information for Hyster customer care centres This manual is addressed to the skilled technicians of Hyster service network K1.0M B460..K1.0H...
Page 3
IMPORTANT This manual contains detailed information about the routine and preventive maintenance, troubleshooting, disassembly/assembly of components, adjustment procedures for the following Hyster models: K1.0M - K1.0H. These procedures require specific technical knwoledge and they must be carried out only by qualified and trained staff.
Page 4
SERVICE PREFACE HOW TO USE THE MANUAL ENCLOSED MANUALS Motors (Part no.1641577) EPS-AC / wire guidance (Part no.1641566) ETACC (2200 SRM 1058) Industrial battery (2240 SRM 1) SECTIONS This manual is divided in the following sections: Section1: Presentation Section : Installation and settings Section : Diagnostic...
Page 5
SERVICE PREFACE GENERAL SAFETY STANDARDS PERSONAL SAFETY • Always use the personal protective equipment when it is required. • Pay attention to the squashing risks due to moving parts, oscillations, not correctly fastened materials when lifting operations are carried out or when the loads are moved. •...
Page 6
Thanks very much for your reading, Want to get more information, Please click here, Then get the complete manual NOTE: If there is no response to click on the link above, please download the PDF document first, and then click on it. Have any questions please write to me: admin@servicemanualperfect.com...
Page 7
SERVICE PREFACE • Before using the batteries, make sure that the cables are connected to the terminals as described: (+) with (+) and (-) with (-). • Do not short-circuit the terminals. The gas emanated during a recharge is higly flammable. During the recharge of the battery leave the •...
Page 8
SERVICE PREFACE Rope capacity table Colour violet 1000 000 1400 green 000 4000 800 1600 yellow 000 6000 400 400 grey 4000 8000 5600 00 5000 10000 7000 4000 brown 6000 1000 8400 4800 Working blue 8000 16000 1100 6400 capacity (kg) orange 10000...
Page 9
SERVICE PREFACE Hanging rope capacity table Colour violet 1000 1400 100 100 green 000 800 400 400 Working yellow 000 800 600 600 capacity (kg) grey 4000 5600 8400 8400 5000 6600 9800 10500 Coefficient Working capacity: the working capacity is calculated with an angle in the centre of 90°.
Page 10
SERVICE PREFACE DRIVING TORQUE OF SCREWS, NUTS AND CONNECTORS Before the disassembly of the various parts DRIVING TORQUE Nm and of the bolts and screws, read carefully Nominal the instructions below. diameter Class 8 Class 10 To tighten the screws use the product LOCTITE 70 in 9.15 order to ensure the safety of the threaded couplings.
Page 11
SERVICE PREFACE CORRECT METHOD TO APPLY THE FEMALE CONNECTORS To ensure an optimum connection between the female connectors and the adapters mentioned in this ma- nual, it is necessary to carry out the following procedure, which is different from the one for the assembly of the rigid pipes.
Page 12
SERVICE PREFACE INSTRUCTIONS FOR THE MAINTENANCE OF THE HYDRAULIC SYSTEM Before proceeding with the maintenance of the hydraulic system, it is necessary to remove any possible residual pressures inside it. Open valve “A” by using the supplied hexagonal “T” wrench in order to discharge the residual pressure in the fork lifting circuit.
Page 13
SERVICE PREFACE INSTRUCTIONS FOR THE INSTALLATION OF HOSES AND CONNECTORS Visual check of hoses and connectors: if one of the following conditions occurs, the hose must be im- mediately disconnected and replaced: • movement of the connector on the hose; •...
Page 15
SERVICE PREFACE SECTION INDEX Presentation Installation and settings Diagnostic Electric system Hydraulic system Frame mechanics Mast mechanics Cabin mechanics Reduction unit Braking system End of aisle slow-down and stop Routine maintenance...
SERVICE PRESENTATION presentation trUCK presentation ������������������������������������������������������������������������������������������������������������������������������������������� 2 TRUCK VIEWS ������������������������������������������������������������������������������������������������������������������������������������������������������������ 3 trUCK anD LoaD iDentiFiCation Data ������������������������������������������������������������������������������������������������������������ 4 TRUCK IDENTIFICATION DATA PLATE ��������������������������������������������������������������������������������������������������������������������� 4 RESIDUAL LOAD PLATE ������������������������������������������������������������������������������������������������������������������������������������������� 4 TRUCK AND MAST SERIAL NUMBER STAMP ��������������������������������������������������������������������������������������������������������� 5 DATA POSITION ��������������������������������������������������������������������������������������������������������������������������������������������������������� 5 GeneraL speCiFiCations ������������������������������������������������������������������������������������������������������������������������������������...
SERVICE PRESENTATION trUCK presentation The range of lift trucks for medium/high level load collection consists of two models, with a nominal load capacity of 1000 kg: K1�0M • • K1�0H electrical system All the motors benefit from the use of three phase AC alternate current technology: traction motor, steering motor and pump motor.
SERVICE PRESENTATION trUCK anD LoaD iDentiFiCation Data trUCK iDentiFiCation Data pLate The truck identification data plate is located in the cab. • • Manufacturer's name. Max. weight battery • • Model Min weight battery • • Serial number Battery voltage •...
SERVICE PRESENTATION always refer to the load plate to be sure to lift an admissible load to a suitable height� trUCK anD Mast seriaL nUMBer staMp The mast serial number is located on the side The truck serial number is located beneath the of the external mast.
Page 23
SERVICE INSTALLATION AND SETTINGS INSTALLATION AND SETTINGS BEFORE INSTALLATION ������������������������������������������������������������������������������������������������������������������������������������������� 2 WEIGHT TABLES �������������������������������������������������������������������������������������������������������������������������������������������������������� 2 MACHINE ASSEMBLY ����������������������������������������������������������������������������������������������������������������������������������������������� 4 LIST OF MATERIALS RECEIVED FROM THE DEALER ������������������������������������������������������������������������������������������� 4 UNLOADING FROM THE TRUCK AND BRINGING TO THE UPRIGHT POSITION �������������������������������������������������� 6 UNLOADING FROM THE TRUCK (WHEN THE TRUCK IS TRANSPORTED IN VERTICAL POSITION) �����������������...
Page 24
SERVICE INSTALLATION AND SETTINGS BEFORE INSTALLATION Depending on the size of the mast and the kind of transportation (container, truck, etc�), the carriage may be sent: • complete in vertical position (option A) • complete in horizontal position with forks dismantled (option B)� In the second instance one must check in advance that one is equipped with all the tools necessary to bring it to the vertical position (crane hire, forklift truck, belts, etc)�...
