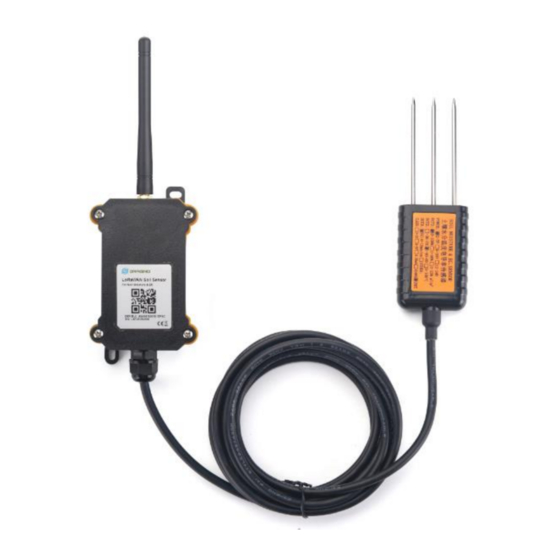

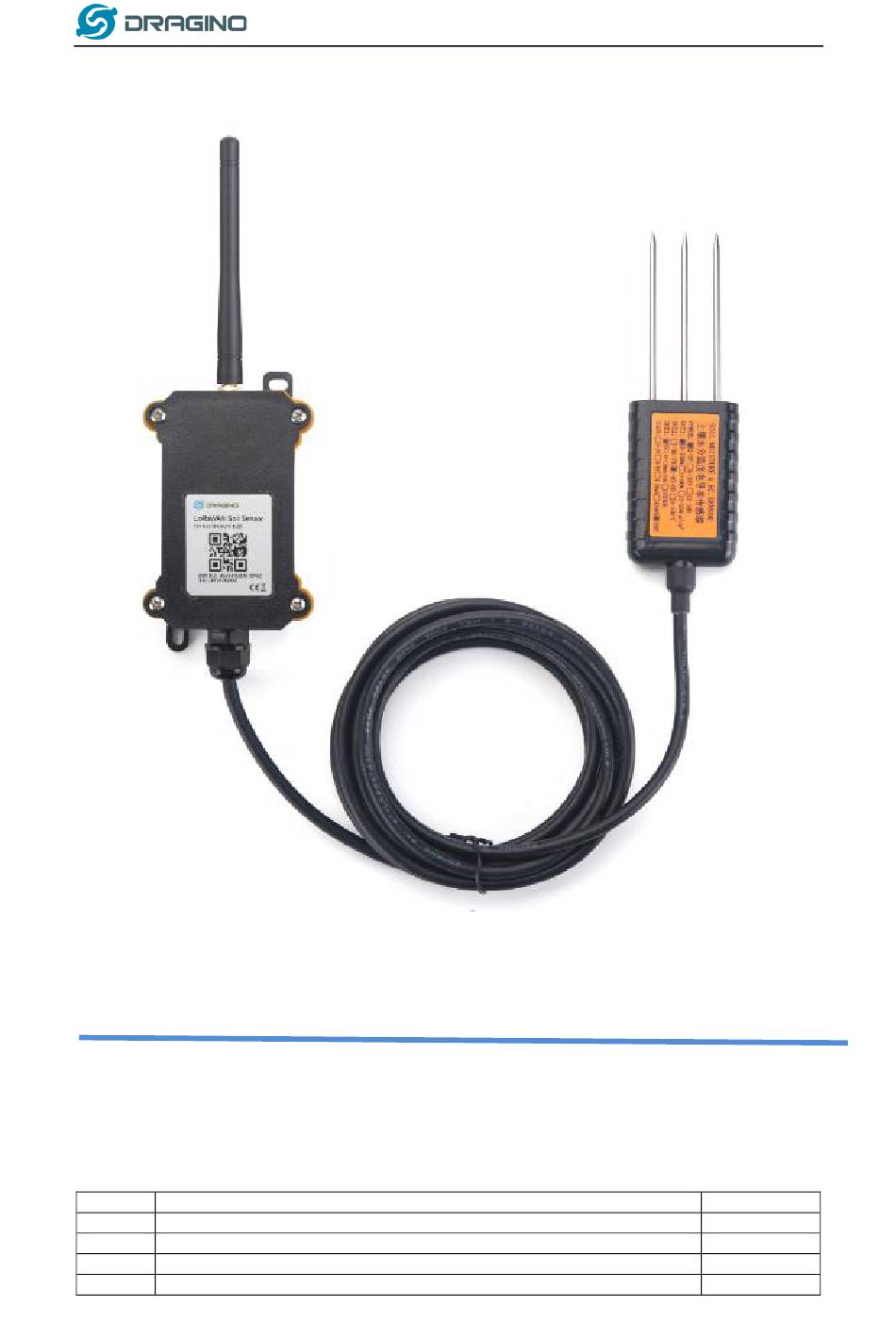

LoRaWAN Soil Moisture & EC Sensor User Manual
Document Version: 1.4
Image Version: v1.0
Version
Description
1.0
Release
1.1
Add fix for rejoin issue on second packet (trouble shooting)
1.2
Fix typo on v2.3.3, add measure volume info
1.3
Add different hardware connection
LSE01 LoRaWAN Soil Moisture & EC Sensor User Manual
www.dragino.com
Date
2020-Apr-24
2020-May-30
2020-Sep-16
2020-Nov-5
1
/
30

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LSE01 and is the answer not in the manual?

Questions and answers

Related Manuals for Dragino LSE01

Summary of Contents for Dragino LSE01

  • Page 1 Image Version: v1.0 Version Description Date Release 2020-Apr-24 Add fix for rejoin issue on second packet (trouble shooting) 2020-May-30 Fix typo on v2.3.3, add measure volume info 2020-Sep-16 Add different hardware connection 2020-Nov-5 LSE01 LoRaWAN Soil Moisture & EC Sensor User Manual...
  • Page 2 Add Battery Option 2021-Mar-17 LSE01 LoRaWAN Soil Moisture & EC Sensor User Manual...

  • Page 3: Table Of Contents

    Why I can’t join TTN in US915 / AU915 bands? AT Command input doesn’t work Device rejoin in at the second uplink packet. 6. Order Info 7. Packing Info 8. Support LSE01 LoRaWAN Soil Moisture & EC Sensor User Manual...
  • Page 4 LSE01 LoRaWAN Soil Moisture & EC Sensor User Manual...

  • Page 5: Introduction

    10 years. Each LES01 is pre-load with a set of unique keys for LoRaWAN registrations, register these keys to local LoRaWAN server and it will auto connect after power on. LSE01 LoRaWAN Soil Moisture & EC Sensor User Manual...
  • Page 6 LSE01 LoRaWAN Soil Moisture & EC Sensor User Manual...

  • Page 7: Features

    All other: <0.6℃ Measure FDR , with Conductivity , with RTD, and calibrate Method temperature &EC temperature compensate compensate 1.4 Applications  Smart Agriculture 1.5 Firmware Change log LSE01 v1.0: ➢ Release LSE01 LoRaWAN Soil Moisture & EC Sensor User Manual...

  • Page 8: Configure Lse01 To Connect To Lorawan Network

    2. Configure LSE01 to connect to LoRaWAN network 2.1 How it works The LSE01 is configured as LoRaWAN OTAA Class A mode by default. It has OTAA keys to join LoRaWAN network. To connect a local LoRaWAN network, you need to input the OTAA keys in the LoRaWAN IoT server and power on the LSE0150.

  • Page 9: Quick Guide To Connect To Lorawan Server (Otaa)

    Step 1: Create a device in TTN with the OTAA keys from LSE01. Each LSE01 is shipped with a sticker with the default device EUI as below: You can enter this key in the LoRaWAN Server portal. Below is TTN screen shot:...
  • Page 10 LSE01 LoRaWAN Soil Moisture & EC Sensor User Manual...
  • Page 11 Put a Jumper on JP2 to power on the device. ( The Jumper must be in FLASH position). Step 3: The LSE01 will auto join to the TTN network. After join success, it will start to upload messages to TTN and you can see the messages in the panel.

  • Page 12: Uplink Payload

    2.3 Uplink Payload LSE01 will uplink payload via LoRaWAN with below payload format: Uplink payload includes in total 11 bytes. Size (bytes) Value Temperature Soil Soil Soil Conductivity Digital Interrupt (Reserve, Moisture Temperature (EC) (Optional) Ignore now) 2.3.1 Battery Info Check the battery voltage for LSE01.

  • Page 13: Soil Conductivity (Ec)

    The payload decoder function for TTN is here: LSE01 TTN Payload Decoder: http://www.dragino.com/downloads/index.php?dir=LoRa_End_Node/LSE01/Payload_Decod 2.4 Uplink Interval The LSE01 by default uplink the sensor data every 20 minutes. User can change this interval by AT Command or LoRaWAN Downlink Command. See this link: http://wiki.dragino.com/index.php?title=End_Device_AT_Commands_and_Downlink_Comm ands#Change_Uplink_Interval 2.5 Downlink Payload...
  • Page 14 Payload: 01 00 00 1E TDC=30S Payload: 01 00 00 3C TDC=60S Reset If payload = 0x04FF, it will reset the LSE01 Downlink Payload: 05000001, Set AT+CFM=1 or 05000000 , set AT+CFM=0 LSE01 LoRaWAN Soil Moisture & EC Sensor User Manual...

  • Page 15: Show Data In Mydevices Iot Server

    Step 1: Be sure that your device is programmed and properly connected to the network at this time. Step 2: To configure the Application to forward data to Mydevices you will need to add integration. To add the Mydevices integration, perform the following steps: LSE01 LoRaWAN Soil Moisture & EC Sensor User Manual...

  • Page 16: Frequency Plans

    After added, the sensor data arrive TTN, it will also arrive and show in Mydevices. Frequency Plans The LSE01 uses OTAA mode and below frequency plans by default. If user want to use it with different frequency plan, please refer the AT command sets.

  • Page 17: Us902-928(Us915)

    507.3 - SF7BW125 to SF12BW125 507.5 - SF7BW125 to SF12BW125 507.7 - SF7BW125 to SF12BW125 507.9 - SF7BW125 to SF12BW125 508.1 - SF7BW125 to SF12BW125 505.3 - SF12BW125 (RX2 downlink only) LSE01 LoRaWAN Soil Moisture & EC Sensor User Manual...

  • Page 18: Au915-928(Au915)

    923.8 - SF7BW125 to SF10BW125 924.0 - SF7BW125 to SF10BW125 924.2 - SF7BW125 to SF10BW125 924.4 - SF7BW125 to SF10BW125 924.6 - SF7BW125 to SF10BW125 Downlink: Uplink channels 1-8 (RX1) 923.2 - SF10BW125 (RX2) LSE01 LoRaWAN Soil Moisture & EC Sensor User Manual...

  • Page 19: Kr920-923 (Kr920)

    Downlink: Uplink channels 1-3 (RX1) 866.550 - SF10BW125 (RX2) LED Indicator The LSE01 has an internal LED which is to show the status of different state. ➢ Blink once when device power on. ➢ Solid ON for 5 seconds once device successful Join the network.
  • Page 20 Dig a hole with diameter > 20CM. Horizontal insert the probe to the soil and fill the hole for long term measurement. LSE01 LoRaWAN Soil Moisture & EC Sensor User Manual...

  • Page 21: Firmware Change Log

    2.10 Firmware Change Log Firmware download link: http://www.dragino.com/downloads/index.php?dir=LoRa_End_Node/LSE01/Firmware/ Firmware Upgrade Method: http://wiki.dragino.com/index.php?title=Firmware_Upgrade_Instruction_for_STM32_base_ products#Introduction V1.0. Release LSE01 LoRaWAN Soil Moisture & EC Sensor User Manual...

  • Page 22: Battery Analysis

    2.11.3 Replace the battery You can change the battery in the LSE01.The type of battery is not limited as long as the output is between 3v to 3.6v. On the main board, there is a diode (D1) between the battery and the main circuit.

  • Page 23: Using The At Commands

    3. Using the AT Commands 3.1 Access AT Commands LSE01 supports AT Command set in the stock firmware. You can use a USB to TTL adapter to connect to LSE01 for using AT command, as below. Or if you have below board, use below connection:...
  • Page 24 : Confirm Mode AT+CFS : Confirm Status AT+JOIN : Join LoRa? Network AT+NJM : LoRa? Network Join Mode AT+NJS : LoRa? Network Join Status AT+RECV : Print Last Received Data in Raw Format LSE01 LoRaWAN Soil Moisture & EC Sensor User Manual...
  • Page 25 : Factory Data Reset AT+PORT : Application Port AT+CHS : Get or Set Frequency (Unit: Hz) for Single Channel Mode AT+CHE : Get or Set eight channels mode, Only for US915, AU915, CN470 LSE01 LoRaWAN Soil Moisture & EC Sensor User Manual...

  • Page 26: Faq

    When downloading the images, choose the required image file for download. How to set up LSE01 to work in 8 channel mode By default, the frequency bands US915, AU915, CN470 work in 72 frequencies. Many gateways are 8 channel gateways, and in this case, the OTAA join time and uplink schedule is long and unpredictable while the end node is hopping in 72 frequencies.
  • Page 27 924.6 Channel 40-47 924.8 925.2 925.4 925.6 925.8 926.2 Channel 48-55 926.4 926.6 926.8 927.2 927.4 927.6 927.8 Channel 56-63 Channels(500KHz,4/5,Unit:MHz,CHS=0) 915.9 917.5 919.1 920.7 922.3 923.9 925.5 927.1 Channel 64-71 LSE01 LoRaWAN Soil Moisture & EC Sensor User Manual...

  • Page 28: Trouble Shooting

    In the case if user can see the console output but can’t type input to the device. Please check if you already include the ENTER while sending out the command. Some serial tool doesn’t send ENTER while press the send key, user need to add ENTER in their string. LSE01 LoRaWAN Soil Moisture & EC Sensor User Manual...

  • Page 29: Device Rejoin In At The Second Uplink Packet

    Cause for this issue: The fuse on LSE01 is not large enough, some of the soil probe require large current up to 5v 800mA, in a short pulse. When this happen, it cause the device reboot so user see rejoin.

  • Page 30: Order Info

    ● Provide as much information as possible regarding your enquiry (product models, accurately describe your problem and steps to replicate it etc) and send a mail to support@dragino.com LSE01 LoRaWAN Soil Moisture & EC Sensor User Manual...
