DM100 GENERAL INFORMATION
1.1 GC0 Board Type Physical Interfaces

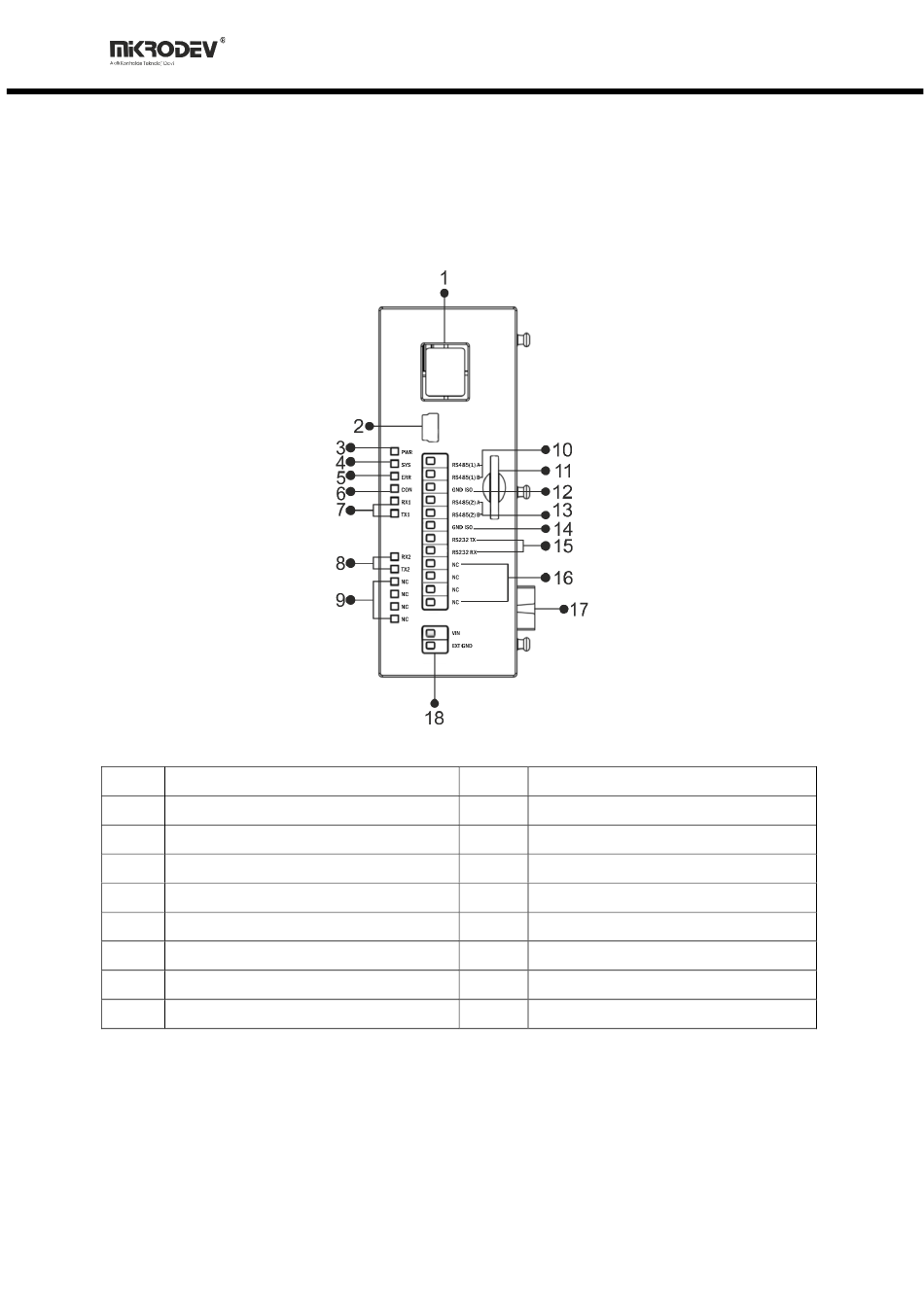

Figure 1 GC0 Board Type Connector and Physical Interface
1
Ethernet Port
2
USB Port
3
System Power LED
4
System Running LED
5
System Error LED
6
System Connection Status LED
7
RS485 Port 1 Data Transfer LED
8
RS485 Port 2 Data Transfer LED
9
N/A
6
10
RS485 Port 1 Connections
11
SD Card Slot
12
Serial Port GND Connections
13
RS485 Port 2 Connections
14
Serial Port GND Connections
15
RS232 Connections
16
N/A
17
Expansion Connector
18
Device Power (V+/V-) Connection
DM100 SERIES – HARDWARE MANUAL
