3.2 RS485 Serial Port

Board Type:

RS485 Port Count:

Maximum Slave Counts:

Isolation:

Communication Distance:

Data Bits:

Stop Bits:

Parity:

Baudrate:

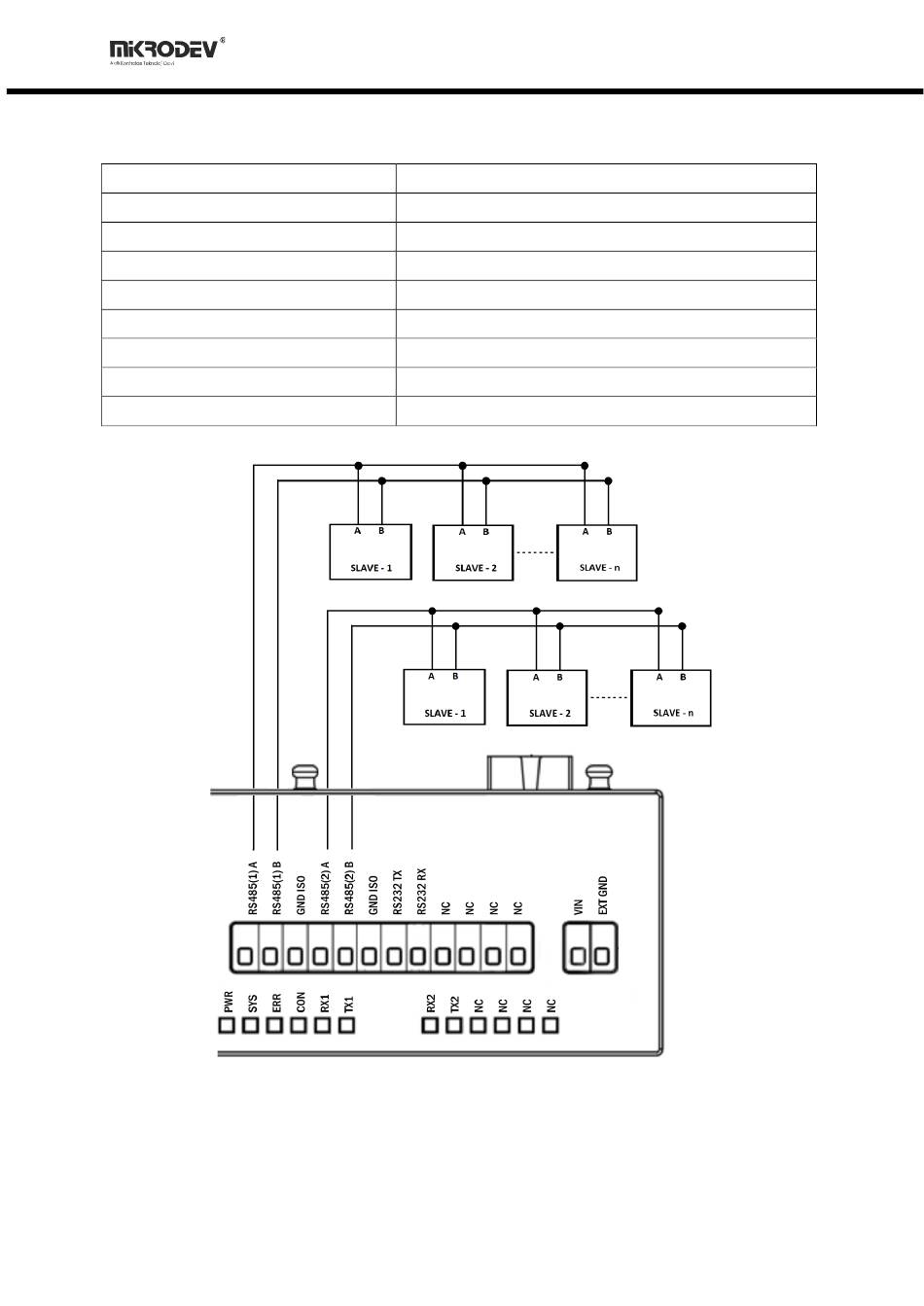

Figure 6 RS485 Serial Port Connection Diagram

GC0, GC3

2 Port

Limited to Hardware

ESD Protection, 8 kV Direct, 25 kV Air Discharge

1000 m

7-8

1-2

None-Even-Odd

300 bps to 200 kbps

DM100 SERIES – HARDWARE MANUAL
