2.2 Expansion Installation

The DM100 product and its extensions are mounted by sliding over the rail in such a way
that the connectors correponds.

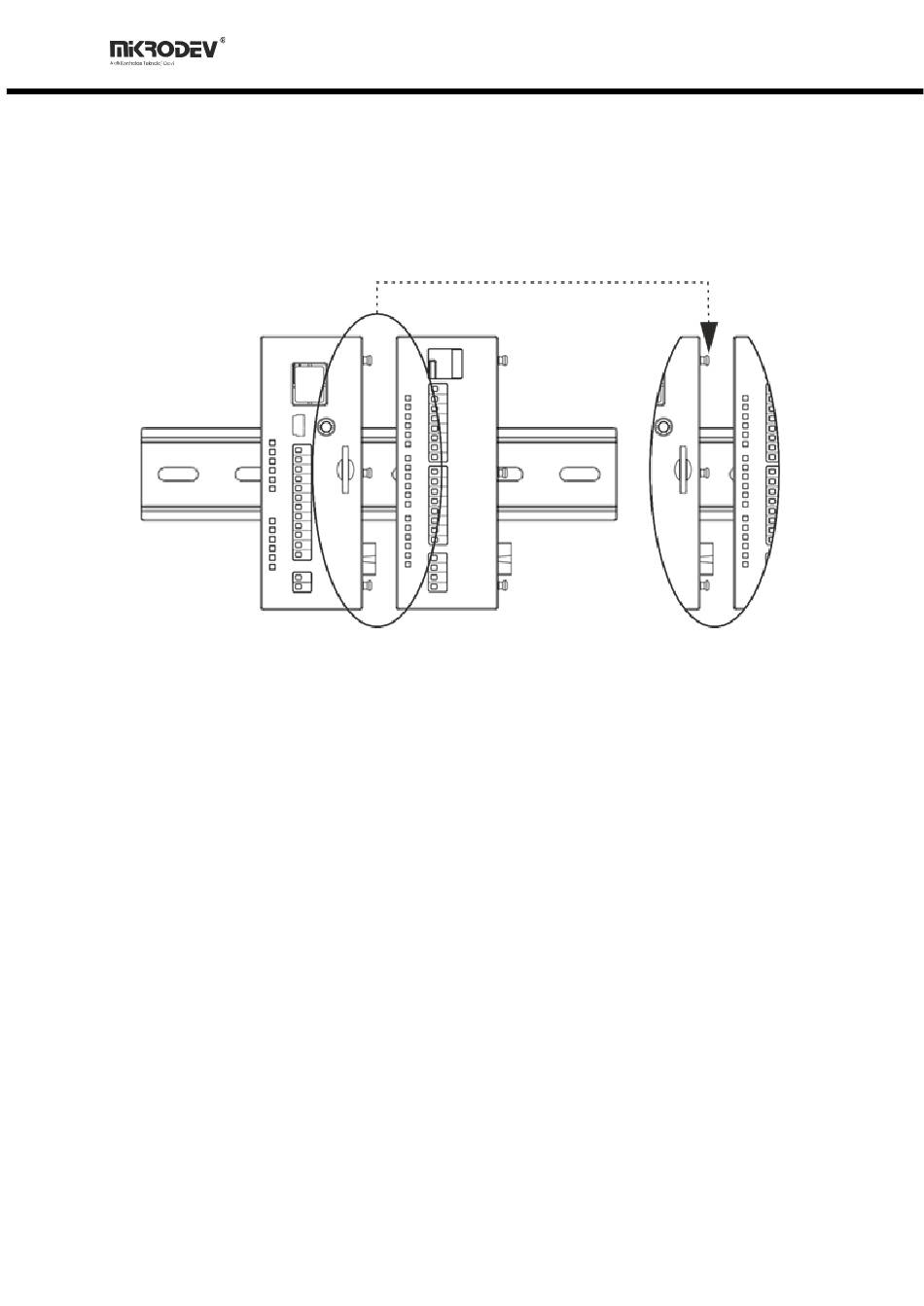

Figure 4 Expansion Installation
10
DM100 SERIES – HARDWARE MANUAL
