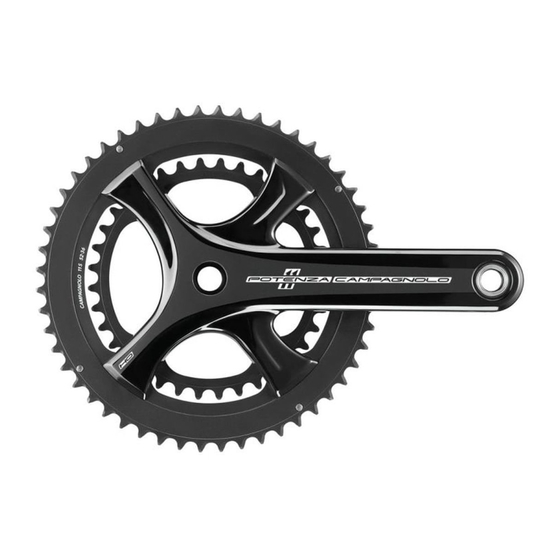

CAMPAGNOLO 11s CRANKSET ULTRA-TORQUE Quick Start Manual

Hide thumbs Also See for 11s CRANKSET ULTRA-TORQUE:

Advertisement

Quick Links

Download this manual
1 1 s CRAN K S E T
ULT RA - TOR Q UE
( F R O M M Y 20 15 )
C A M PA G N O L O. CO M

Advertisement

loading
Need help?

Need help?

Do you have a question about the 11s CRANKSET ULTRA-TORQUE and is the answer not in the manual?

Questions and answers

Related Manuals for CAMPAGNOLO 11s CRANKSET ULTRA-TORQUE

Summary of Contents for CAMPAGNOLO 11s CRANKSET ULTRA-TORQUE

  • Page 1 1 1 s CRAN K S E T ULT RA - TOR Q UE ( F R O M M Y 20 15 ) C A M PA G N O L O. CO M...
  • Page 2 WARNING! Always wear protective gloves and glasses while working on the bicycle. CRA N KS ET - Rev. 0 4/ 06 - 20 22 CA M PA G NO L O C O M PO NE NT S - T E C H NIC A L M A NUA L...

  • Page 3: Technical Specifications

    1 1 s C R A N K SE T (2015 / 2019) (2018 / 2019) (2018 / 2019) (a partire dal 2018) WARNING! THIS TECHNICAL MANUAL IS INTENDED FOR USE BY PROFESSIONAL MECHANICS. Anyone who is not a qualified professional for bicycle assembly must not attempt to install and operate on the components independently due to the risk of carrying out incorrect operations which could cause the components to malfunction, resulting in accidents, physical injury or even death.
  • Page 4 To make using the right performance components even simpler, Campagnolo has introduced a distinctive marking system (a letter in a square border) on the components to indicate compatibility.
  • Page 5 Super Record 11s EPS Super Record 11s EPS Record 11s EPS Record 11s EPS Campagnolo H11 EPS Campagnolo H11 EPS WARNING! The HO (Hydraulic Optimisation) cranksets and Centaur 11, with the 8 mm chainring wheelbase, are only compatible with the Ergopower H11 commands, Ergopower Potenza 11™...
  • Page 6 2 . 1 - PIVOT PE DAL CO MPAT I B I LI T Y WARNING! MIN. 11,5 mm Min. 11,5 mm Do not put washers between the pedal axle and hand crank as they would give rise to abnormal tensions in the interface area. Such ten- sions could lead to premature breaks and be the cause of accidents, physical injuries or even death.
  • Page 7 3 . 2 - OVERAL L D IM E N S I O N S FO R T HE 1 1 s U LTR A - TOR Q U E C R A N KS E T S 23,5 91,5 12,3 N.B.
  • Page 8 3 . 3 - OVERAL L D IM E N S I O N S FO R T HE 1 1 s U LTR A - TOR Q U E C R A N KS E T S 91,5 23,5 12,8 N.B.
  • Page 9 • Insert the wave washer (Fig.4 ) in the space for the left bottom bracket cup bearing. • Insert the left hand crank in the bottom bracket shell. • Using the Campagnolo UT-BB110 tool or a suitable 10 ® mm hexagonal insert with a length of at least 65 mm, engage the fastening screw (Fig.
  • Page 10 Observe SUPER RECORD 11s SUPER RECORD 11s CHORUS 11s CHORUS 11s the tightening direction that the arrow on the head of the CAMPAGNOLO H11 CAMPAGNOLO H11 central screw shows (Fig. 6). POTENZA 11s POTENZA 11s CENTAUR 11s CENTAUR 11s •...

  • Page 11: Maintenance

    Remember, EACH TIME you change the chainrings, to also replace the chainring fixing screws. • Contact a Campagnolo Service Centre to replace the bearings. This delicate operation requires an extractor to remove them (and a great deal of attention to prevent damaging the teeth of the central joint) and the tool (Cyclus Tools “720263”) to press fit the new bearings.

  • Page 12: Pe Riodic Ma I Ntena Nce Table

    6 - PE RIODIC MA I NTENA NCE TABLE Maintenance intervals are strictly approximate and may vary significantly in relation to the intensity and conditions of use (for example: competitions, rain, winter roads with salt, weight of the athlete, etc.). Schedule the appropriate maintenance with your customer.
