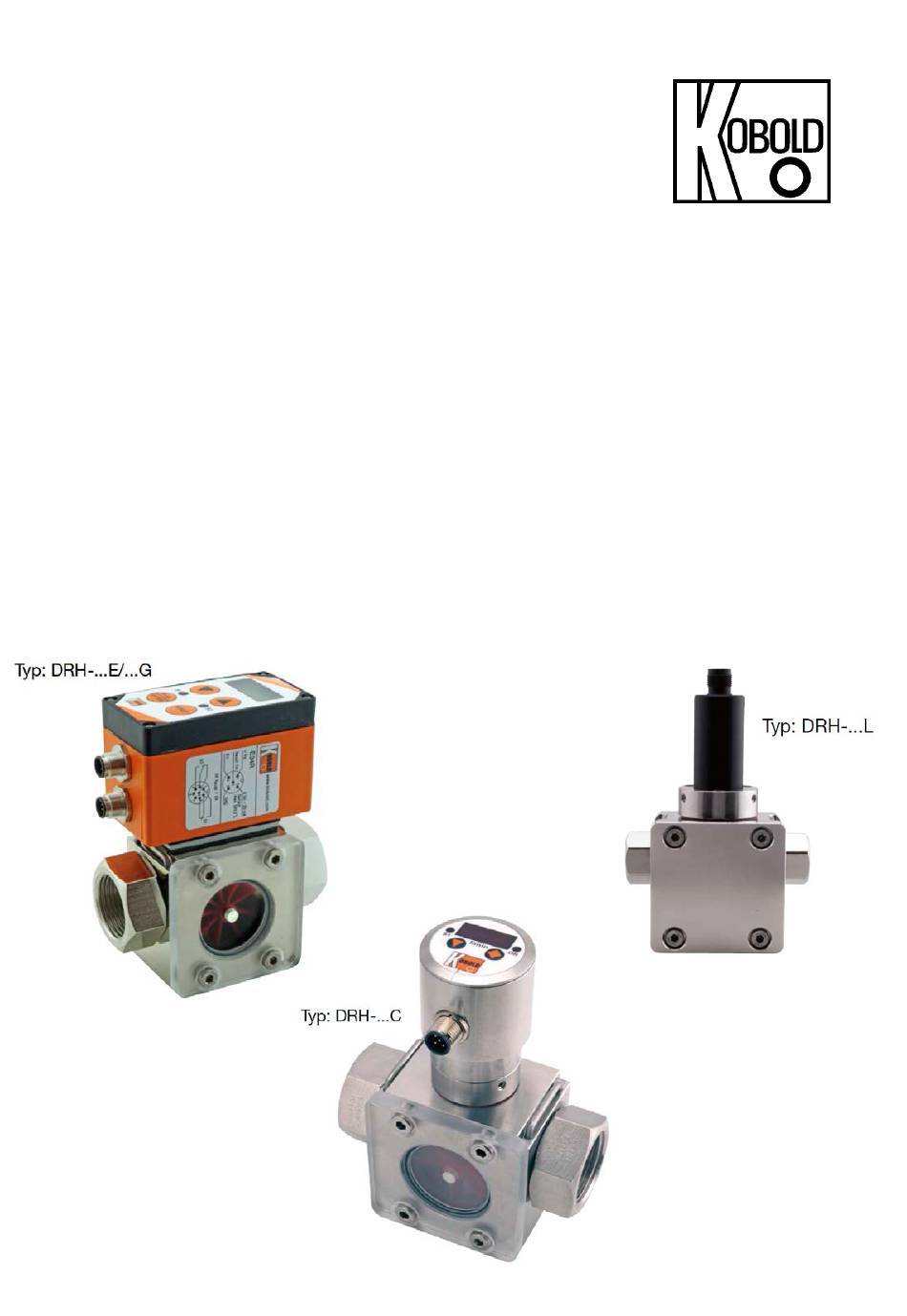

- Page 1 Operating Instructions Rotating Vane Flow Meter Model: DRH-...
-
Page 2: Table Of Contents
10. Technical Information ..................9 10.1. Sensor Data ..................9 10.2. Output electronics ................10 11. Order Codes ....................11 12. Dimensions ....................12 KOBOLD Instruments Inc. Manufactured and sold by: 1801 Parkway View Drive Pittsburgh PA 15205-1422 Tel.: 412-788-2830 Fax: 412-788-4980 E-Mail: info@koboldusa.com... -
Page 3: Note
2. Note Please read these operating instructions before unpacking and putting the unit into operation. Follow the instructions precisely as described herein. The instruction manuals on our website www.koboldusa.com are always for currently manufactured version of our products. Due to technical changes, the instruction manuals available online may not always correspond to the product version you have purchased. -
Page 4: Operating Principle

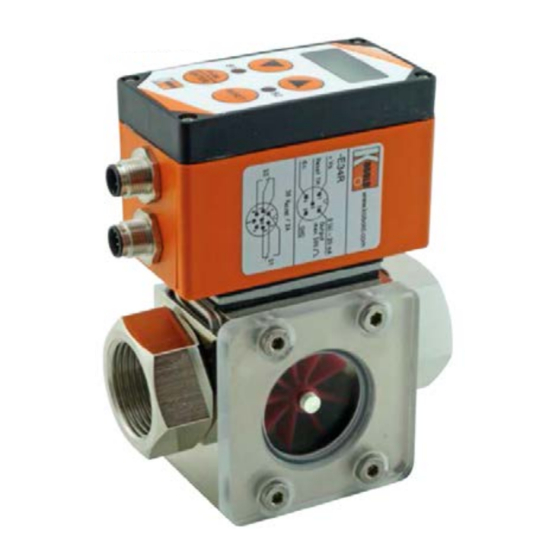

5. Operating Principle KOBOLD Rotating Vane Flow Meters series DRH are used for measuring and monitoring low viscous liquids. Series DRH flow meters are working according the well-known rotating vane principle. A magnet fitted in the vane and hermetically sealed from the medium transfers non-contacting the rotary motion to a Hall-effect sensor mounted in the housing. -
Page 5: Electrical Connection
7. Electrical Connection 7.1. General Attention! Make sure that the voltages in your plant correspond with the flow meter voltages. Make sure that all electrical supply lines are de-energised. Connect supply voltage and output signal to the plug connector pins as shown below. -
Page 6: Output Electronics: Analogue Output
7.3. Output electronics: Analogue output (..L303, ..L342, ..L343, ..L442) 3-wire (..L303, ..L343) n.c. Signal 2-wire (..L342) n.c. n.c. DRH 01/0422 page 6... -
Page 7: Cable Outlet With M12X1 Angle Plug Electronic Options F3X And L3X
2-wire, DIN plug connector (..L442) n.c. 7.4. Cable outlet with M12x1 angle plug electronic options F3x and L3x When using a pre-assembled M12x1 connection cable with angled plug, the cable outlet is always aligned opposite to the flow direction. DRH 01/0422 page 7... -
Page 8: Compact Electronics
7.5. Compact electronics: (..C30R, ..C30M, ..C34P, ..C34N) 7.5.1. General Attention! Make sure that the voltages in your plant correspond with the flow meter voltages. Make sure that all electrical supply lines are de-energised. Connect supply voltage and output signal to the plug connector pins as shown below. -
Page 9: Commissioning - Output Electronics
If the medium to be measured is clean, the Model DRH is virtually maintenance- free. It is particularly important to guard against contamination by ferritic (iron metal) contaminants. These can be eliminated by using e.g. the KOBOLD magnetic filter, model MFR. -
Page 10: Output Electronics
10.2. Output electronics Frequency output (…F300)* Power supply: 12-28 VDC Power consumption: 10 mA Pulse output: PNP, open collector, max. 25 mA Electrical connection: plug connector M12x1 * uncalibrated signal output Frequency output with frequency divider Power supply: 24 VDC ±20% Power consumption: 15 mA Pulse output:... -
Page 11: Order Codes
DRH-...Gxxx (Dosing electronics) Display: LCD, 2x8 digits, illuminated dosing, total- and flow quantities, units selectable Quantity meter: 8 digit Dosage: 5-digit Analogue output: (0)4...20 mA adjustable Load: max. 500 Ω Switching output: 2 relays, max. 30 V /2 A/60 VA AC/DC Settings: via 4 buttons... -
Page 12: Dimensions
12. Dimensions DRH 01/0422 page 12...
