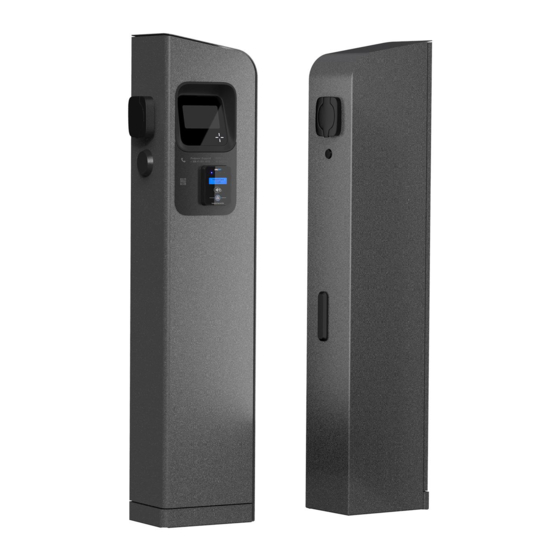

- Page 1 Ver. 2021-3-EN Etrel INCH DUO QUICK START GUIDE...
-
Page 3: Safety Instructions
SAFETY INFORMATION Etrel INCH DUO charging station has been designed and tested in accordance with current and past versions of international standards. The charging station is compliant with IEC 61851 (Part 1, Part 21-2, Part 22) - Page 4 I N T E N D E D U S E • Etrel INCH DUO charging station is intended only for charging of electric vehicles and should not be used to charge other appliances or for any other purpose. •...
-
Page 5: Base Specifications
• Do not operate the charging station with wet hands. • The charging station manufacturer cannot be made liable for damage or injury caused by improper handling, installation, or use of the product. • Any usage of the product not covered in this document is not allowed and could cause injury or death. - Page 6 G R O U N D I N G I N S T R U C T I O N S Etrel INCH DUO charging station needs to be properly grounded to allow safe use. In the case of malfunction or breakdown, grounding provides protective measure to reduce the risk of electric shock.
-
Page 7: Installation Procedure
INSTALLATION PROCEDURE The following descriptions are intended to be read together with appropriate image at the beginning of the document. The bold number at the left side of the description represents the image number. Foundation Excavation The first step of the construction works is to prepare an excavation with the minimum basic dimensions of 42 cm x 55 cm and at least 60 cm in depth. - Page 8 If the station will be part of a cluster of stations, the installation pipe must be wide enough to allow the insertion of two sets of power cables or use two installation pipes. When inserting the foundation anchor, care must be taken to ensure that the anchor is aligned, which ensures that the charging station will stand straight.
- Page 9 Preparation for the Installation Once the foundation is dry and the power cables are introduced into the installation pipe, the installation of the charging station can begin. • Clean the foundation, its surroundings and anchor bolts. • Cut the installation pipe containing the power cables.
- Page 10 Removing the Power Supply Cover The safety cover protects against accidental direct contact with live parts. Turn off the main power before removing the cover. Unscrew the screws and then remove the cover. Earthing Attach earthing cable to the screw of the foundation and tighten it tightly with a sixth nut.
- Page 11 Remove approximately 2.5 cm of insulation from the cable. Insert the twisted pairs into the RJ45 connector in the correct order and crimp the connector firmly. Connecting the Communication Cable Plug the cable into the router socket. If the network router is not part of the charging station equipment, connect the cable directly to the main controller located at the top of the charging station port.
- Page 12 WEEE: Dispose of the device only at the recycling centre. 2020 Etrel. All rights reserved. Etrel, the Etrel logo and other marks are owned by Etrel and may be registered. All other trademarks are the property of their respective owners. Etrel assumes no responsibility for any errors that may appear in this manual.
