- Page 1 Ver. 2018-40 Etrel INCH Installation procedure...
-
Page 3: Warning Signs

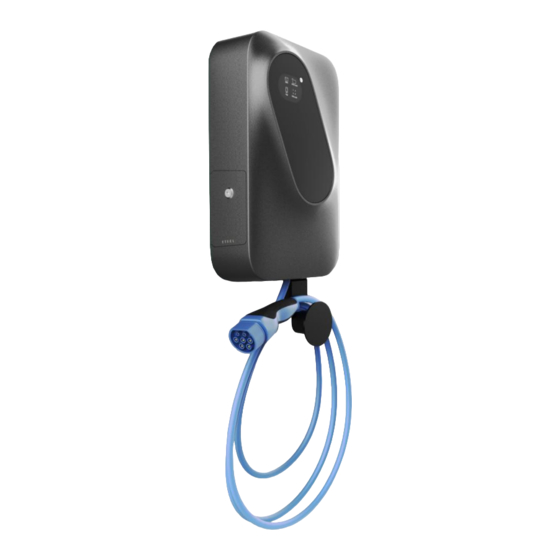

SAFETY INFORMATION Etrel INCH charging station has been designed and tested with international standards. The charging station is compliant with IEC 61851-1 international standard which defines conductive AC electric... - Page 4 I N T E N D E D U S E Etrel INCH charging station is intended only for charging of electric vehicles and should not be used to charge any other appliances or devices or for any other purposes. The manufacturer accepts no...
-
Page 5: Base Specifications
5 W – 15 W G R O U N D I N G I N S T R U C T I O N S Etrel INCH charging station needs to be properly grounded to allow safe use. In the case of malfunction or breakdown, grounding provides protective measure to reduce the risk of electric shock. - Page 6 with a qualified electrician or serviceperson if you are in doubt as to whether the product is properly grounded. E L E C T R I C I T Y P R O T E C T I O N E L E M E N T S Overvoltage protection: the device must be protected with an upstream voltage protection.
-
Page 7: Installation Procedure
*PLC LAN module, *Load Guard device, *Magnetic cable holder (different version for longer cables > 3 m) E Q U I P M E N T N E E D E D Phillips screwdriver, *Hex screwdriver, ... - Page 8 cables after they are pulled through. Drill 9 holes for screws and insert the anchor screws in each hole. Power supply cable preparation Pull the power supply cable through the drilled hole in the wall if the cables need to go through the wall. If cables are connected to the charging station from above or below, enough length of the cable should be provided.
- Page 9 dimensions up to 5x6 mm use the tighter rubber seal. For the cables with dimension of 5x10 mm and 5x16 use a looser rubber seal which should be already inside the gland by default. You can change the rubber seal with removal of the gland plastic top (unscrew it) and by simply pushing the rubber seal out of the gland.
- Page 10 Insert the UTP cable through the gland and remove the cable jacket from the cable. About 17 cm of UTP cable should be pulled out of the gland. You can also remove the jacket before putting the cable through the gland. After the cable is pulled through the gland put the UTP plug on the UTP cable without cable jacket.
- Page 11 important. In the top connector, which is phase one (L1) of the charging station, wire that will be used to charge single-phase EVs should be connected. It is advisable that the least loaded phase of the facility is used. The order of second and third phase is especially important when charging station is part of a cluster.
- Page 12 Etrel d.o.o. Pod jelšami 6, 1290 Grosuplje, Slovenia 2018 Etrel. All rights reserved. Etrel, the Etrel logo and other marks are owned by Etrel and may be registered. All other trademarks are the property of their respective owners. Etrel assumes no responsibility for any errors that may appear in this manual.
