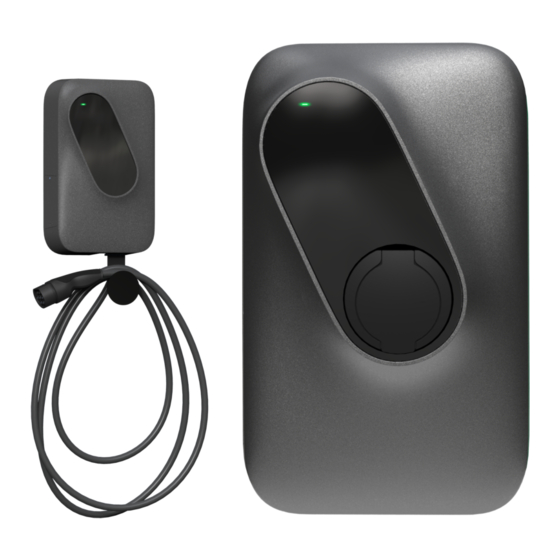

- Page 1 ELECTRIC VEHICLE CHARGING STATION ETREL INCH LITE USER MANUAL Document version: 1.2 Document date: 18. 8. 2020...
-
Page 2: Table Of Contents
Etrel Inch Lite | User Manual TABLE OF CONTENTS FOREWORD ................2 General Information ................3 Intended Use .................. 3 Operation ..................3 Maintenance .................. 4 Procedure in Case of Irregularity or Interference at Operation ..4 Design Considerations ..............4 Fire Safety Measures .............. -
Page 3: Foreword
Etrel Inch Lite | User Manual FOREWORD Etrel INCH LITE charging station has been designed and tested in accordance with current and past versions of international standards. The charging station is compliant with IEC 61851 (Part 1, Part 21-2, Part... -
Page 4: General Information
GENERAL INFORMATION INTENDED USE Etrel INCH LITE charging station is intended only for charging of electric vehicles and should not be used to charge other appliances or for any other purpose. •... -
Page 5: Maintenance
Etrel Inch Lite | User Manual • Do not operate the charging station with wet hands. • The charging station manufacturer cannot be made liable for damage or injury caused by improper handling, installation, or use of the product. •... -
Page 6: Fire Safety Measures
Etrel Inch Lite | User Manual device that switches off electricity automatically if there is a fault. The ingress protection class of IP54 proves, that the enclosure of the charging station is protecting the internals against ingress of solid objects, permits only limited ingress of dust and is protected against water splashes from all directions. -
Page 7: Environmental Safety Measures
Etrel Inch Lite | User Manual • If possible, disconnect the station from the power supply by pressing the fire protection switch (if present) or another switch responsible for cutting off the power supply to the station. • Retreat from fire area. -
Page 8: Safety Risk Analysis
Etrel Inch Lite | User Manual and recycle them responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling. - Page 9 Etrel Inch Lite | User Manual DANGER OR RISK RELEVANT PROTECTIVE MEASURES IN ACCORDANCE WITH Protection against other hazards Explosion Hazards arising from electric, Our charging stations are subjected to tests and certification to ensure safe operation from the view of...
-
Page 10: Product Description
Etrel Inch Lite | User Manual PRODUCT DESCRIPTION BASIC FUNCTIONALITIES Etrel INCH LITE is a smart charging station that can predict EV charging habits and help charge the car by the time it is needed, at the lowest possible cost. -
Page 11: Optional And Extra Equipment
Etrel Inch Lite | User Manual Figure 4: Dimensions of the charging station OPTIONAL AND EXTRA EQUIPMENT CONTENT AND ACCESSORIES • Charging station (with Type 2 cable or Type 2 socket), • Wall mounting bracket, • 9 × wall plugs for securing the mounting bracket using screws to the wall, •... -
Page 12: Circuit Diagram
Etrel Inch Lite | User Manual CIRCUIT DIAGRAM... -
Page 13: Operation And Charging Procedure
Etrel Inch Lite | User Manual OPERATION AND CHARGING PROCEDURE FIRST POWER UP Before starting the station, it is absolutely necessary to read this manual and the technical specification of the device. When the charging station is power up for the first time it can take several minutes for station to get ready to start using it to charge EV. - Page 14 Etrel Inch Lite | User Manual protection. If nothing helps call the support or installer. Green light is Charging station Charging station Try resetting the blinking is ready to be is unresponsive. charging station. used. If the problem repeats there...
-
Page 15: First Charging Session
Etrel Inch Lite | User Manual FIRST CHARGING SESSION CHECK WHETHER THE CHARGING STATION IS WORKING PROPERLY AND SETTING OF MAXIMAL CHARGING CURRENT • When the charging station has either overcurrent or RCD protection installed, check whether the protection element is in ON position. -
Page 16: Regular Maintenance
Etrel Inch Lite | User Manual REGULAR MAINTENANCE Etrel charging station does not require any periodic maintenance. However, it is recommended to perform a visual check and test of the protection elements once per year. Detailed descriptions of security checks and their intervals are included in the service manual. -
Page 17: Troubleshooting
Side maintenance area is protected by the side maintenance doors. Depending on the type of Etrel INCH LITE charging station, two different doors are available. One with the regular key lock and one with hex screw (2.5 mm). -
Page 18: Reseting The Charging Station
Etrel Inch Lite | User Manual Figure 6: Doors with keylock Figure 7: Doors with hex screw There is a sticker on the inside of maintenance doors, with technical information including basic charging station information, model type and serial number. When support is contacted it is important that the charging station model type is known so the support can quickly help solve the issue. -
Page 19: Contact Information
Etrel Inch Lite | User Manual CONTACT INFORMATION TECHNICAL SUPPORT DEPARTMENT e-mail: support@etrel.com phone: +386 1 601 0127 CUSTOMER SUPPORT DEPARTMENT e-mail: sales@etrel.com phone: +386 1 601 0175 AUTHORISED SERVICE CENTRES e-mail: support@etrel.com phone: +386 1 601 0075 Etrel d.o.o.
