QUICK USER MANUAL
1. LCD screen
2. Status light
3. Settings button

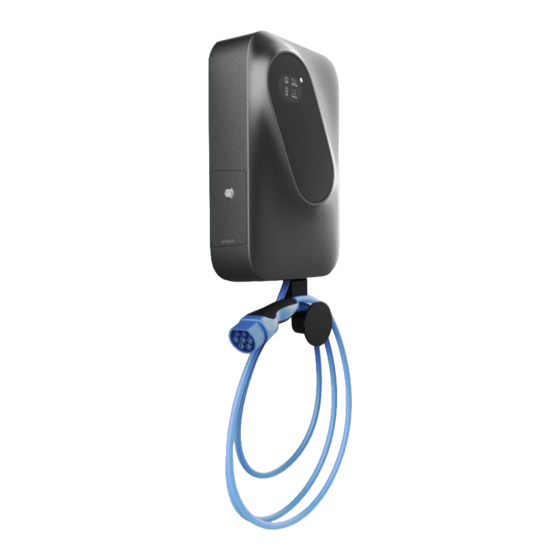

Etrel INCH is a smart charging station that can predict your EV charging habits and
help you charge the car by the time you need it, at the lowest possible cost.
Charging station comes with the LCD screen that guides you through the charging
process and provides important charging information.
Step 1: WAKE - touch the screen.
Step 2: AUTHORISE - swipe the RFID card below the LCD touch screen.
Step 4: CONNECT THE CABLE – plug in charging cable into the socket and car
Step 5: STOP CHARGING – end the charging session directly in your car
Step 6: AUTHORISE - swipe the RFID card below the LCD touch screen.
Step 7: DISCONNECT THE CABLE – plug out charging cable from the socket.
str. 1
ETREL INCH

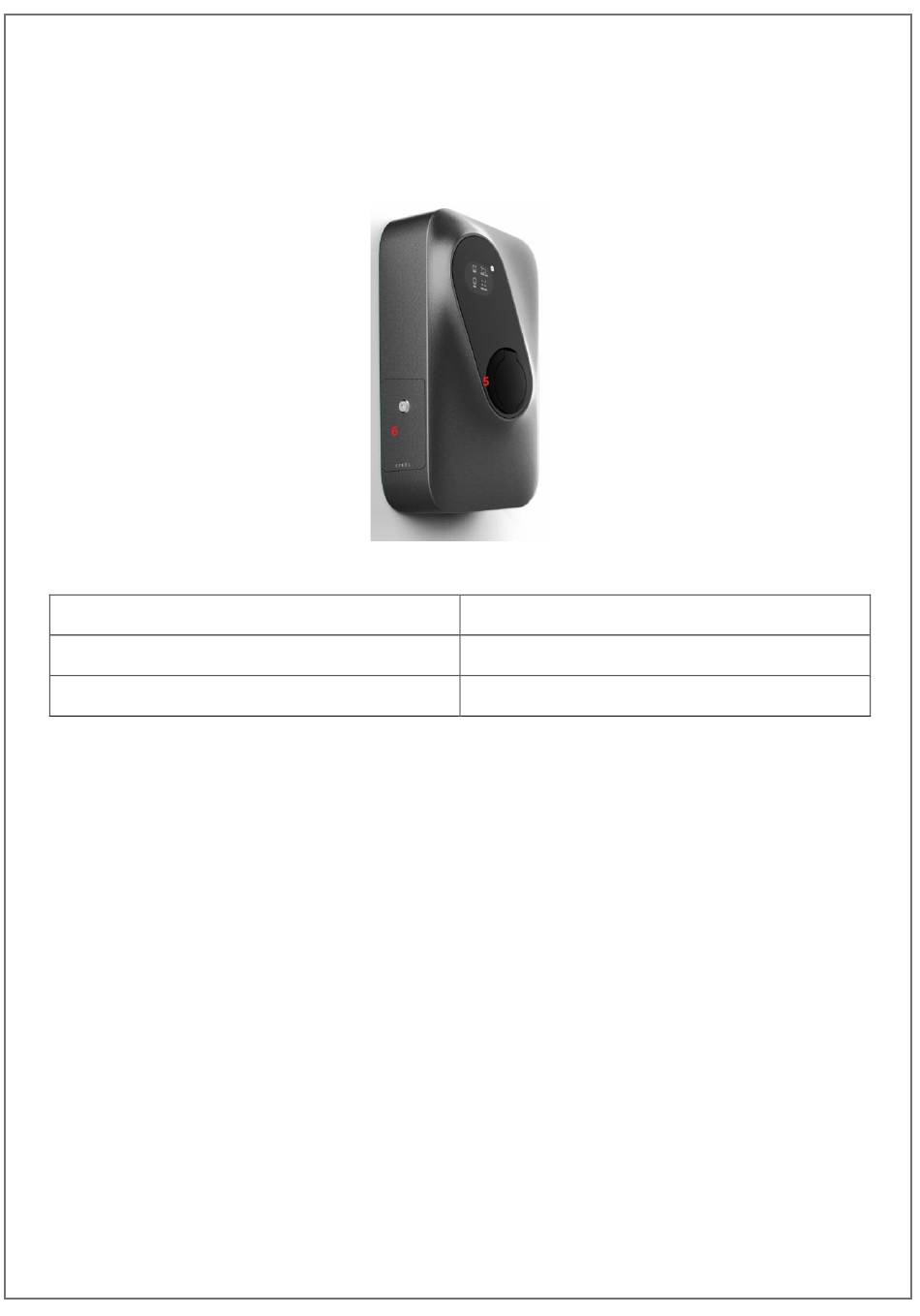

Figure 2: Etrel INCH with socket
ETREL INCH DESCRIPTION
QUICK GUIDE
4. Confirmation button
5. Socket
6. Maintenance doors
