DXV Modulus D19035075 Series Installation Instructions

INSTALLATION INSTRUCTIONS
DXV Modulus

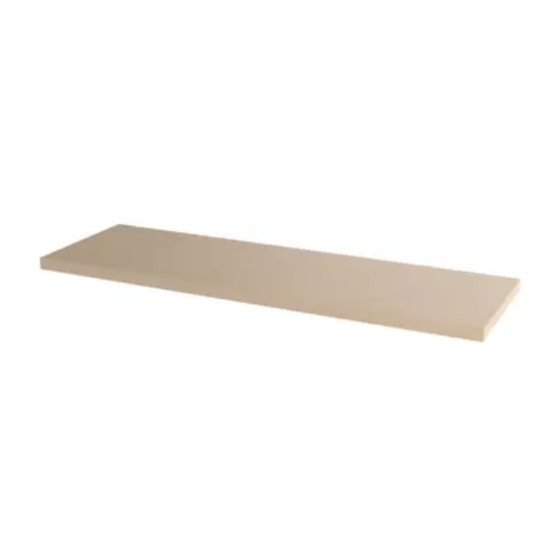

Countertop Slab Single/Double
75" Model D19035075 Series
90" Model D19040090 Series
Thank you for selecting DXV. To ensure this product is installed properly, please read these instructions carefully before you begin.
(Certain installations may require professional help.) Also be sure your installation conforms to local codes.
To maintain the beauty of the finish, avoid placing the furniture in direct sunlight, as sunlight causes fading. Also avoid extreme
changes in temperature by arranging furniture away from radiators, heat and air vents, and air conditioning units. Avoid placing
furniture directly under windows.
CAUTION: PRODUCT IS FRAGILE. TO AVOID BREAKAGE AND POSSIBLE INJURY HANDLE WITH CARE!
!
RECOMMENDED TOOLS AND MATERIALS
Most of the procedures require the use of common tools and materials, which are available from hardware and plumbing
supply stores. It is essential that the tools and materials be on hand before work has begun.
Square
ROUGHING-IN DIMENSIONS:
• For reference
Product names listed herein are trademarks of AS America, Inc.
© AS America, Inc. 2015
™
Level
22-3/4"
(578 mm)
90"
(2286 mm)
22-3/4"
(578 mm)
75"
(1905 mm)
10'
Electric
Drill
Tape Measure
- 1 -
#10 x 3/4" Flat #14 1-1/2"
Phillips Screws Lag Screw
2"
(51 mm)
2"
(51 mm)
7302267-100 (4/17)
