INSTALLATION INSTRUCTIONS
Oak Hill
™

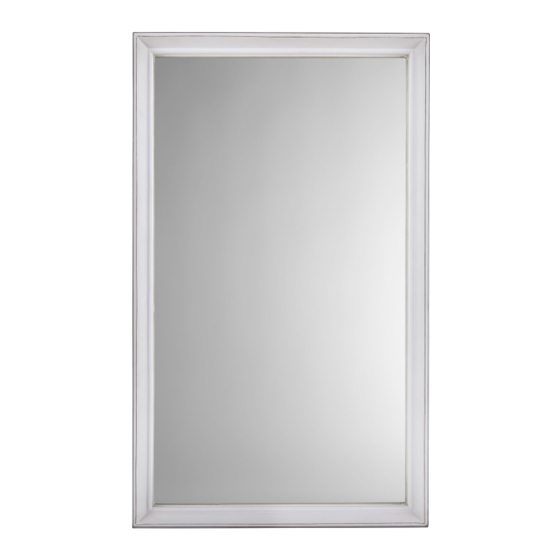

Mirror
Models D19005000.620
D19005000.238
Thank you for selecting DXV. To ensure this product is installed properly, please read these instructions carefully before you begin.
(Certain installations may require professional help.) Also be sure your installation conforms to local codes.
CAUTION: PRODUCT IS FRAGILE. TO AVOID BREAKAGE AND POSSIBLE INJURY HANDLE WITH CARE!
!
NOTE: Pictures may not exactly define contour of mirror and components.
RECOMMENDED TOOLS AND MATERIALS
Most of the procedures require the use of common tools and materials, which are available from hardware and plumbing
supply stores. It is essential that the tools and materials be on hand before work is begun.
Level
ROUGHING-IN DIMENSIONS:
• For reference
(457 mm)
30"
(762 mm)
MIRROR
FRONT VIEW
In the United States:
DXV
One Centennial Avenue
Piscataway, New Jersey 08855
Attention: Director of Customer Care
For residents of the United States, warranty
information may also be obtained by calling
the following toll free number: (800) 227-2734
www.DXV.com
Product names listed herein are trademarks of AS America, Inc.
© AS America, Inc. 2017
Hammer
18"
2"
(51 mm)
10'
Tape Measure
Phillips Screwdriver
2"
(51 mm)
ITEM
1
2
SIDE VIEW
3
4
In Canada:
DXV
5900 Avebury Road
Mississauga, Ontario
L5R 3M3
Canada
Toll Free: 1-800-387-0369
Local: 905-306-1093
Fax: 1-800-395-1498
www.DXV.ca
- 1 -
Regular Screwdriver
1
3
2
4
DESCRIPTION
Mirror
6 x 1-1/2 Screw
Wall Bracket
Wall Anchor
In Mexico:
DXV
Via Morelos 330
Col. Santa Clara Coatitla
Ecatepec, Estado de México 55540
Toll Free: 01-800-8391200
www.DXV.mx
770234-100 Rev. A (6/17)
Drill
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for DXV Oak Hill D19005000.620
Summary of Contents for DXV Oak Hill D19005000.620
- Page 1 Models D19005000.620 D19005000.238 Thank you for selecting DXV. To ensure this product is installed properly, please read these instructions carefully before you begin. (Certain installations may require professional help.) Also be sure your installation conforms to local codes. CAUTION: PRODUCT IS FRAGILE. TO AVOID BREAKAGE AND POSSIBLE INJURY HANDLE WITH CARE! NOTE: Pictures may not exactly define contour of mirror and components.
- Page 2 • Using a level, draw a 6" horizontal line 3-3/4" down from Note: The mirror must be hung on a wall. It is not the point marked in Step 1 as shown in Figure 2. designed to rest on the floor or on any type of furniture.
