DXV Wyatt D21460 Installation Instructions

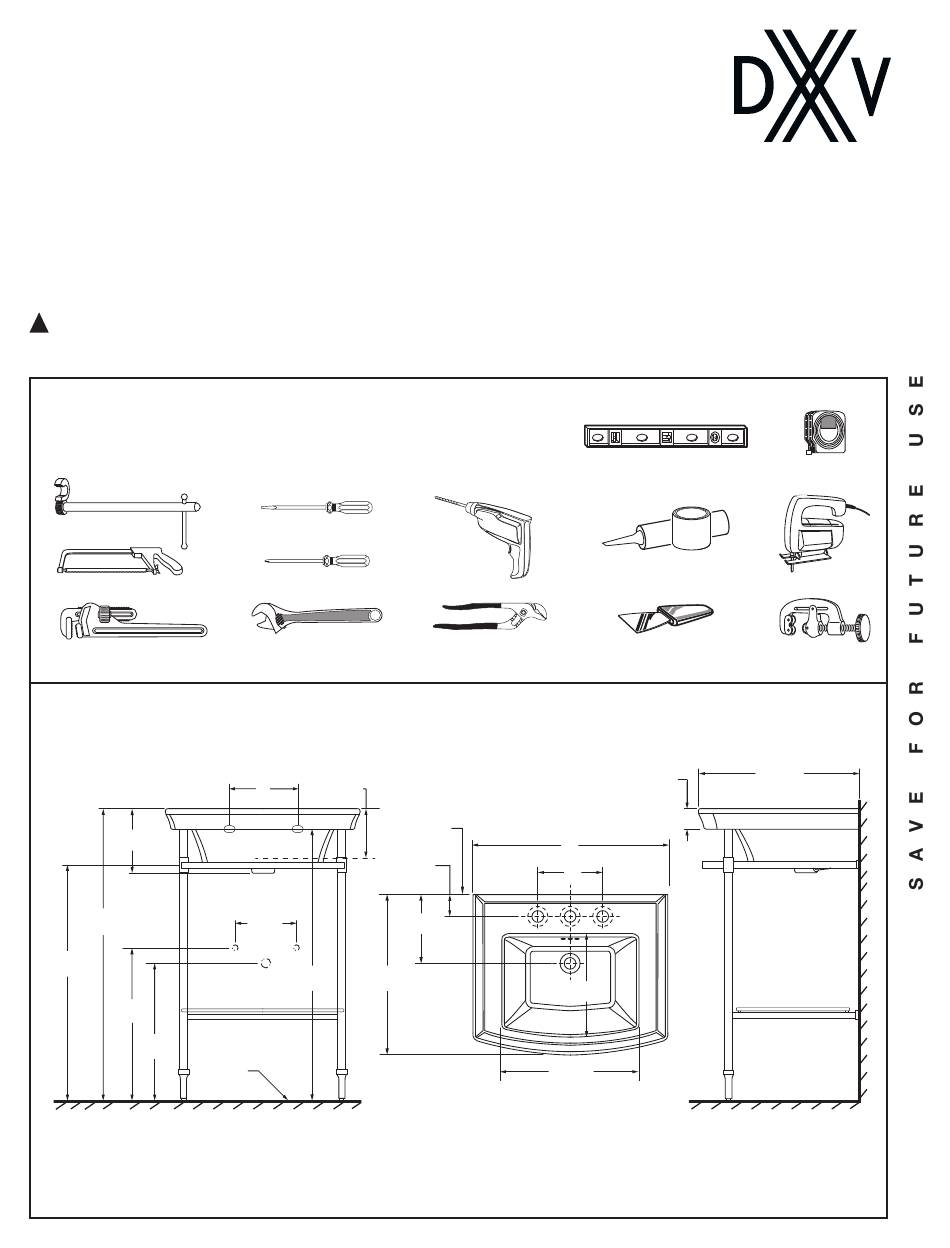

INSTALLATION INSTRUCTIONS

Wyatt
®
Console Lavatory Kit
Model D21460
Thank you for selecting DXV. To ensure this product is installed properly, please read these instructions carefully before you begin.
(Certain installations may require professional help.) Also be sure your installation conforms to local codes.
CAUTION: PRODUCT IS FRAGILE. TO AVOID BREAKAGE AND POSSIBLE INJURY HANDLE WITH CARE!
!
NOTE: Pictures may not exactly define contour of china and components.
RECOMMENDED TOOLS AND MATERIALS
Most of the procedures require the use of common tools and materials,
which are available from hardware and plumbing supply stores. It is
essential that the tools and materials be on hand before work is begun.
Basin Wrench
Hacksaw
Pipe Wrench
ROUGHING-IN DIMENSIONS:
• For reference
7-15/16"
(201 mm)
35-5/8"
(905 mm)
28-13/16"
(732 mm)
20"
(508 mm)
18"
(457 mm)
FINISHED
NOTE: Locate supplies and "P" trap in open area.
Product names listed herein are trademarks of AS America, Inc.
© AS America, Inc. 2017
Regular Screwdriver
Phillips Screwdriver
Adjustable Wrench
8"
5-1/2"
(203 mm)
(140 mm)
Supplies
as Required
33-1/2" 19-11/16"
(850 mm) (500 mm)
FLOOR
Drill
Channel Lock
FINISHED
WALL
24"
(610 mm)
2-11/16"
8"
(68 mm)
(203 mm)
8-1/2"
(215 mm)
(305 mm)
16-15/16"
(414 mm)
- 1 -
Level
Plumbers' Putty or
Caulking
Putty Knife
19-11/16"
2-9/16"
(500 mm)
(65 mm)
12"
770187-100 Rev. E (6/17)
10'
Tape Measure
Saber Saw
Tubing Cutter
