DXV Modulus D19075036LH Series Installation Instructions

INSTALLATION INSTRUCTIONS

DXV Modulus
Wall-Hung Vanity -
Model D19075036LH Series
Thank you for selecting DXV. To ensure this product is installed properly, please read these instructions carefully before you begin.
(Certain installations may require professional help.) Also be sure your installation conforms to local codes.
To maintain the beauty of the finish, avoid placing the furniture in direct sunlight, as sunlight causes fading. Also avoid extreme
changes in temperature by arranging furniture away from radiators, heat and air vents, and air conditioning units. Avoid placing
furniture directly under windows.
CAUTION: PRODUCT IS FRAGILE. TO AVOID BREAKAGE AND POSSIBLE INJURY HANDLE WITH CARE!
!

RECOMMENDED TOOLS AND MATERIALS

Most of the procedures require the use of common tools and materials, which are available from hardware and plumbing
supply stores. It is essential that the tools and materials be on hand before work has begun.
Square

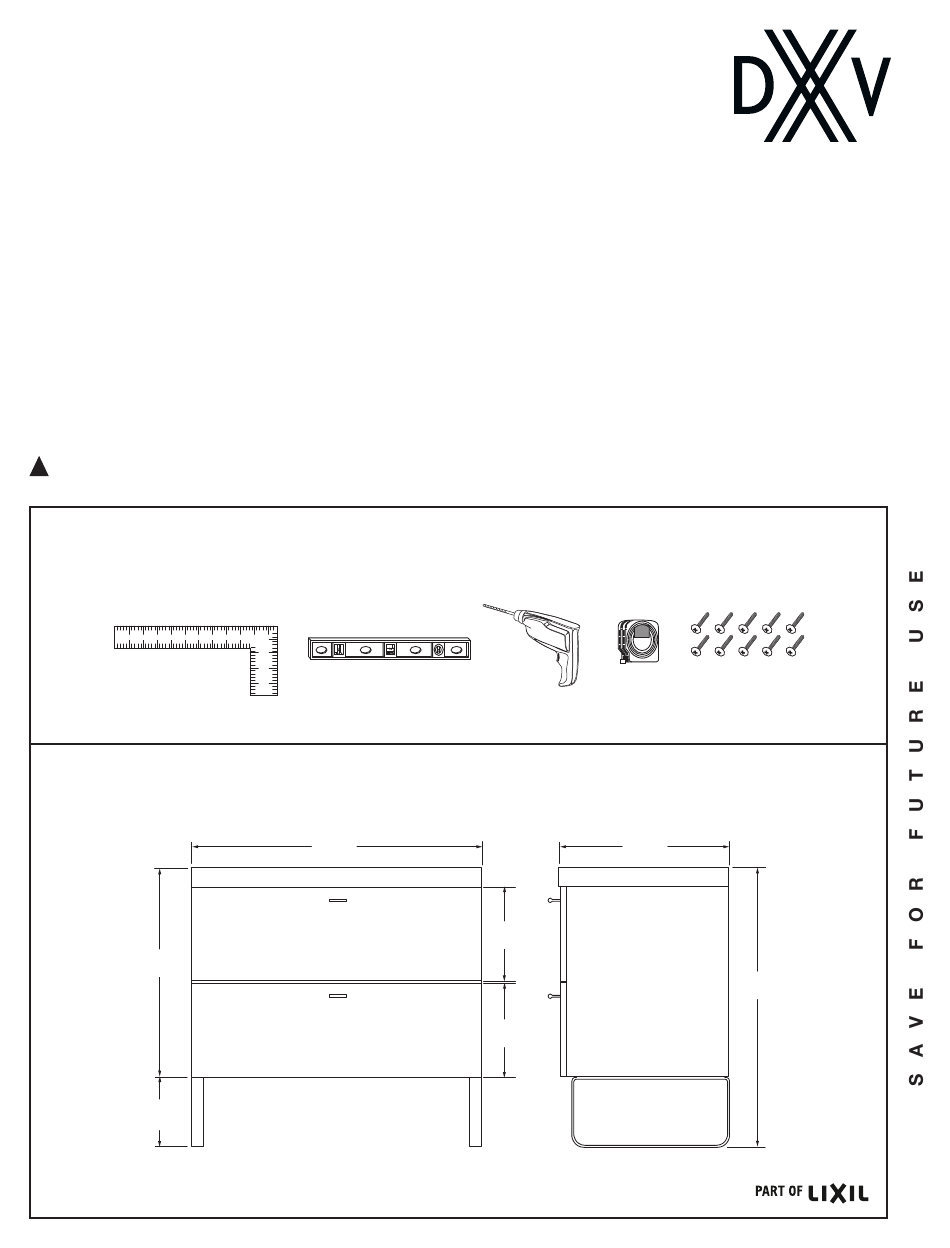

ROUGHING-IN DIMENSIONS:

• For Reference
25-15/16"
(658 mm)
XX"
(XX mm)
Product names listed herein are trademarks of AS America, Inc.
© AS America, Inc. 2017
™
Left Hand
Level
36"
(914 mm)
10'
Electric
Drill
Tape Measure
21"
(533 mm)
11-3/4"
(298 mm)
11-3/4"
(298 mm)
- 1 -
#10 x 2" Flat
Phillips Screws
34-5/8"
(880 mm)
7302327-100 (4/17)
