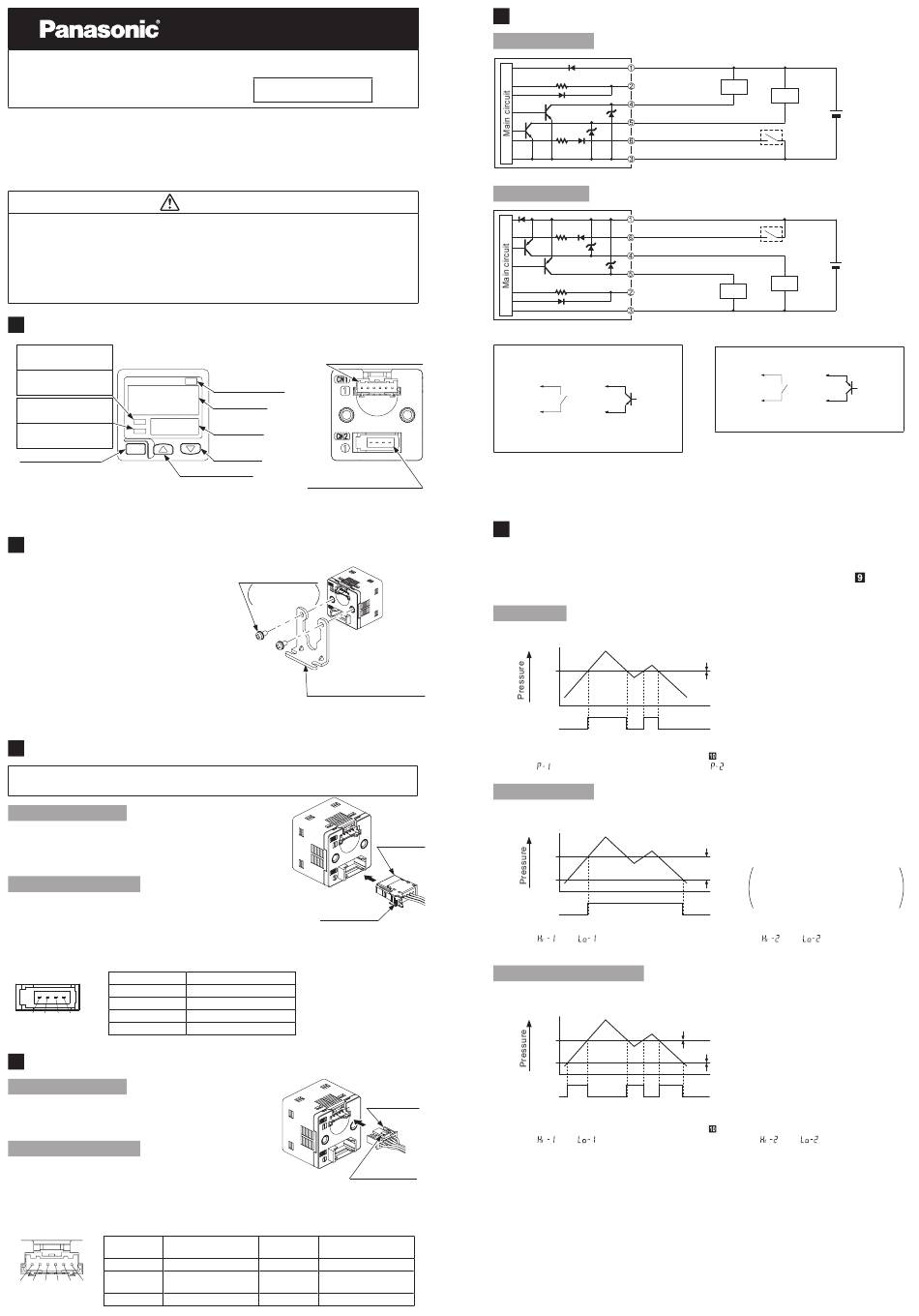

Panasonic DPH-L100 Instruction Manual

Separate type · digital sensor controller
DPC-L100 Sereis
Thank you very much for purchasing Panasonic products.
Read this Instruction Manual carefully and thoroughly for the correct and optimum
use of this product.
Kindly keep this manual in a convenient place for quick reference.
● Never use this product as a device for personnel protection.
● In case of using devices for personnel protection, use products which
meet laws and standards, such as OSHA, ANSI or IEC etc., for personnel
protection applicable in each region or country.
● The product for use inside Japan complies with Japanese Measurement
Laws. Avoid using the product model for outside of Japan within Japan.
1 PART DESCRIPTION
Output 1 operation
indicator
Lights up when com-
parative output 1 is ON
Output 2 operation
indicator
Lights up when com-
parative output 2 is ON
Mode selection key
Set value UP key
Notes: 1) Attach the unit switch plate corresponds to the set pressure unit.
2) The product for use inside Japan can be set only to "MPa" or "kPa."
2 MOUNTING
● T h e s e n s o r m o u n t i n g b r a c k e t
MS-DP1-6 is available as an option.
When mounting the sensor onto the
sensor mounting bracket, etc., the tight-
ening torque should be 0.5N·m or less.
● T h e p a n e l m o u n t i n g b r a c k e t
MS-DP1-2 (optional), as well as the
front cover MS-DP1-3 (optional) are
also available.
● For mounting of the panel mounting
bracket, refer to the Instruction Manual
enclosed with MS-DP1-2.
3 CONNECTION OF PRESSURE SENSOR HEAD
● In case of initial set up or reset, select pressure range.
● incase changing pressure sensor head, check pressure range.
Connection method
1. Insert the pressure sensor head cable into the
product's connector area for the pressure sen-
sor head as shown in the right figure.
Disconnection method
1. Pressing the release lever of the pressure sen-
sor head cable, pull out the connector.
Note: Do not pull by holding the cable without pressing the re-
lease lever, as this can cause cable break or connector
break.
<Terminal pin arrangement>
Terminal pin No.
1
2
3
1 2 3 4
4
4 WIRING
Connection method
1. Insert cable with connector CN-66A-C□ into
the product's connector area for a power / I-O
cable as shown in the right figure.
Disconnection method
1. Pressing the release lever of the cable with con-
nector, pull out the connector.
Note: Do not pull by holding the cable without pressing the release
lever, as this can cause cable break or connector break.
<Terminal pin arrangement>
Terminal pin
No.
1
Analogue voltage
2
1 2 3 4 5 6
/ current output
3
INSTRUCTION MANUAL
For liquid / gas
MJE-DPCL100 No. 0081-79V
WARNING
Connector area for a
power supply / I-O cable
Attach area for
unit switch plate
(Note 1, 2)
Main display
Sub display
Set value
DOWN key
Connector area for a
pressure sensor head
M3 (length 6mm)
screws with washers
Accessory with
MS-DP1-6
Sensor mounting bracket
MS-DP1-6 (Optional)
Release lever
<Connector area of the pressure sensor head cable>
e-con: 1473562-4
[Tyco Electronics AMP G.K.]
Terminal name
Sensor head supply voltage
Analogue input
0V
Not used
<Connector area of the cable with connector>
Housing: PAP-06V-S
[JST Mfg. Co., Ltd.]
Terminal pin
Terminal name Terminal name
No.
+V 4 Comparative output 1
5 Comparative output 2
0V 6 External input
I/O CIRCUIT DIAGRAMS
5
NPN output type
PNP output type
*1
Non-voltage contact, NPN transistor or
DC 2-wire output
High (5 to 30V DC or Open): Invalid
Low (0.4V DC or less): valid
Notes: 1) When the analogue current is output, the output load resistance should be 250Ω max.
2) Take care that when the analogue current is output, 5V or more voltage generates.
3) When using the analogue voltage output, be careful to the input impedance of the connected device.
6 OUTPUT MODE AND OUTPUT OPERATION
● The EASY mode, hysteresis mode or window comparator mode can be se-
lected as the output mode for comparative output 1 and comparative output
2. Refer to <Comparative output 1 / 2 output mode setting> in "
SETTING MODE" for details.
EASY mode
● ON / OFF of the comparative output is controlled in this mode.
Comparative
output
Notes: 1) Hysteresis can be fixed in 8 steps.
2) "
Hysteresis mode
● The comparative output ON / OFF state can be controlled with randomly set
Pressure
hysteresis in this mode.
sensor
head cable
Comparative
output
Notes: 1) "
Window comparator mode
● In this mode, the ON or OFF state of the comparative output is controlled with
a pressure in the set range.
Cable with
Comparative
connector
output
CN-66A-C□
Notes: 1) Hysteresis can be fixed in 8 steps.
2) "
3) Set the interval between the Lo side and Hi side to hysteresis fixed value or more.
Release lever
(Brown) +V
(Gray) Analogue
voltage / current
output (Note 1, 2, 3)
(Black) Comparative output 1
(White) Comparative output 2
(Pink) External input
(Blue) 0V
(Brown) +V
(Pink) External input
(Black) Comparative output 1
(White) Comparative output 2
(Gray) Analogue
voltage / current
output (Note 1, 2, 3)
(Blue) 0V
or
Furthermore, note that if the cable is extended, the cable resistance will cause the voltage to drop.
H (Hysteresis)
P
0
ON
OFF
Refer to <Hysteresis fixed value selection> in "
" is displayed for comparative output 1 and "
Hi
H (Hysteresis)
Lo
ON
OFF
" or " " is displayed for comparative output 1 and "
parative output 2 on the sub display.
H (Hysteresis)
Hi
H (Hysteresis)
Lo
ON
OFF
Refer to <Hysteresis fixed value selection> in "
" or " " is displayed for comparative output 1 and "
parative output 2 on the sub display.
Load
Load
+
12 to 24V DC
±10%
-
(*1)
(*2)
+
12 to 24V DC
±10%
-
Load
Load
*2
Non-voltage contact, PNP transistor or
DC 2-wire output
or
High (5 to +V DC or Open): valid
Low (0.6V DC or less): Invalid
MENU
H: Hysteresis fixed (Note 1)
PRO MODE" for setting.
" for comparative output 2 on the sub-display.
H: 1 digit or more
When using psi unit model for out-
side of Japan, it is 2 digits or more.
However, the 50MPa pressure
range model is 20 digits or more.
" or " " is displayed for com-
H: Hysteresis fixed (Note 1)
PRO MODE" for setting."
" or " " is displayed for com-
