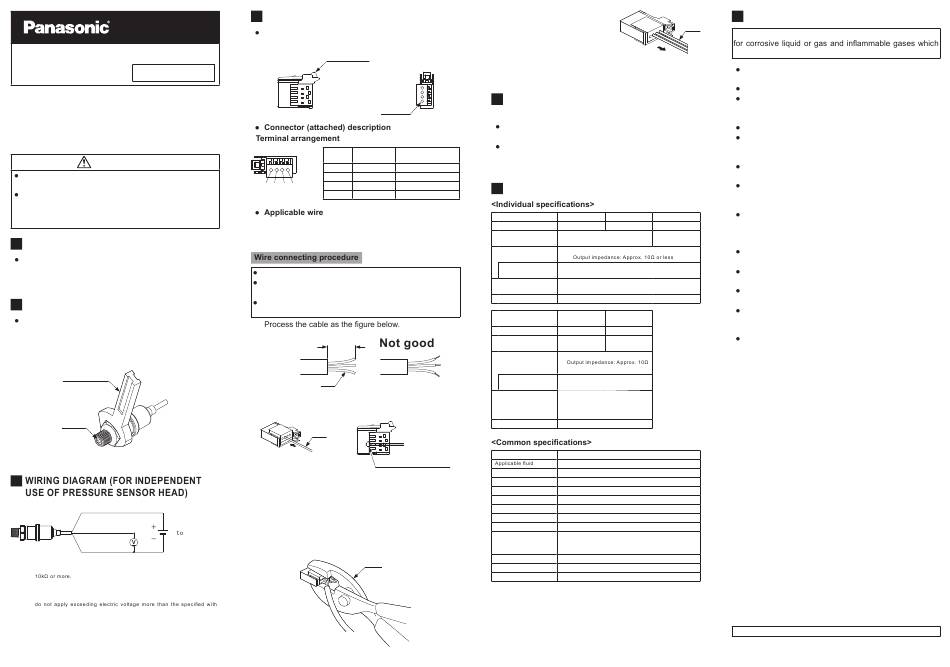

Panasonic DPH-L100 Series Instruction Manual

INSTRUCTION
MANUAL
Pressure Sensor Head
DPH-L100 Sereis
For liquid / gas
MJE-DPHL100 No.0094-21V
Thank you very much for purchasing Panasonic products.
Please read this Instruction Manual carefully and thor-
oughly for the correct and optimum use of this product.
Kindly keep this manual in a convenient place for quick
reference.
WARNING
Never use this product as a sensing device for per-
sonnel protection.
In case of using sensing devices for personnel protec-
tion, use products which meet laws and standards,
such as OSHA, ANSI or IEC etc., for personnel pro-
tection applicable in each region or country.
1 OUTLINE
This product is a pressure sensor head which can be
connected to the pressure controller DPC-L100 series.
It can also be used independently.
2 PIPING
In case connecting a ferrule to the pressure port, set
22mm wrench to the hexangular part of the ferrule and
tighten it.
Also, use leak prevent seal on the male thread to avoid
leak and connect.
22mm spanner
Throttle
Note: Do not remove the throttle.
3
(Brown / 1) +V
(Black / 2) Analog voltage
output (Note 1, 2)
9 36V DC
(Blue / 3) 0V
Notes: 1) When the pressure sensor head is used independently, devices con-
nected to the analogue output must have an input impedance set at
2) The analogue output is not incorporated with a short-circuit protection
circuit. Do not directly connect a power supply or a capacitive load.
3) The pressure port and internal circuit are connected by capacitor. Thus,
standing voltage value between the pressure port and wire.
4) Transparent tube on the cable is not used. Cut the transparent tube from
base.
4 WIRE CONNECTION
When using this product with the pressure controller
DPC-L100 series, use the attached connector.
Release laver
Wire inlet
< >
Terminal
Color code
No.
1 Brown
2 Black
1 2 3 4 3 Blue
4 -
2
• 0.1 to 0.5mm (AWG27 to 20)
However, the diameter of the wire sheath should be ø1.0
to ø1.15mm.
Do not strip the wire sheath.
Connect correctly after confirming the terminal ar-
rangement of the device to which it is connected.
Transparent tube on the cable is not used. Cut the
transparent tube from base.
1.
20mm or more
Wire
2. Insert the wires into the wire inlets of the connector till
the wire tips touch the hole ends.
Wire
Insert the wire till it stops
3. Hook-up the connector with pliers, etc.
• Make sure to hook-up by holding the pliers parallel to
the connector from the direction shown in the figure
below.
• Take care not to damage the wires with the pliers dur-
ing hook-up.
• Take care that the wires are not pulled out during hook-
up.
Pliers
-
4. Slightly pull the wire to ensure
that the wire is not loose.
Note: Do not reuse the connector which
has been hooked-up once,as its per-
formance cannot be guaranteed.
Purchase the optional connector CN-EP2
(5 pcs./set) or the recommended product.
e-CON: 1473562-4
[Tyco Electronics Japan G.K.]
5 INDEPENDENT USE OF PRESSURE
SENSOR HEAD
When the pressure sensor head is used independently,
prepare the cable end with a stripper, etc.
Take care of the impedance of the connected device.
Terminal name
Further, in case of cable extension, note that a voltage
drop will occur depending on the cable resistance.
+V
Analogue output
0V 6 SPECIFICATIONS
Not used
Type DPH-L113V
Rated pressure range -0.1 to 1MPa
Pressure
withstandability
• Output voltage: 1 to 5V DC
Analogue output
•
Total accuracy
(Note1)
-20°C to +70°C (No dew condensation allowed.)
Ambient temperature
Storage: -30°C to +70°C
Medium temperature
DPH-L114
Type
(Note 2)
Rated pressure range 0 to 10MPa
Pressure
20MPa
withstandability
• Output voltage: 1 to 5V DC
Analogue output •
or less
Total accuracy ±1.0% F.S. (+23 ±2°C)
(Note 1) ±2.0% F.S. (-20 to +125°C)
-20 to +80°C
(Pressure port: -20 to +125°C)
Ambient temperature
(no dew condensation allowed.)
Storage: -30 to +100°C (Note 3)
Medium temperature
Type of pressure
Liquid or gas which adapt material of pressure receiving part
Supply voltage
Current consumption
Response time
Protection
Ambient humidity 35 to 85% RH, Storage: 35 to 85%RH
Withstanding voltage 1 minuets with AC150V (all live part and between cases)
Pressure port R1/4 male thread (Including throttle)
Diaphragm: Stainless steel (SUS630)
Material Pressure port: Stainless steel (SUS304)
Throttle: Stainless steel (SUSXM7)
Cable 0.2mm
Weight
accessory
Notes: 1) Total accuracy includes zero point, span, and linearity.
2) Oil is used to inspect for DPH-L114 and DPH-L154, so it may remain on
the pressure receiving part.
3) Ambient temperature for e-CON (accessory) is -20 to +75°C. (Storage:
-30 to +75°C.)
4) Inside of the sensor is hermetically-sealed. In factory setting, the standard
for atmospheric pressure is 1,013hpa.
5) 9 to 32V DC when using e-CON (accessory).
7 CAUTIONS
Wire
This product is designed for liquid / gas. It cannot be used
do not match with material of pressured parts.
Slightly pull the wire
This product has been developed / produced for indus-
trial use only.
Use within the rated pressure range.
Do not apply pressure exceeding the pressure with-
standability value. The diaphragm will get damaged
and correct operation shall not be maintained.
Make sure that the power supply is OFF while wiring.
Verify that the supply voltage variation is within the
rating. If excessive voltage is applied, the product may
get burnt or damaged.
Take care that wrong wiring may burn or damage the
sensor.
If power is supplied from a commercial switching regu-
lator, ensure that the frame ground (F.G.) terminal of
the power supply is connected to an actual ground.
In case noise generating equipment (switching regula-
DPH-L113 DPH-L133
tor, inverter motor, etc.) is used in the vicinity of this
0 to 1MPa 0 to 3.5MPa
product, connect the frame ground (F.G.) terminal of
2MPa 7MPa
the equipment to an actual ground.
Do not use during the initial transient time (approx.
50ms) after the power supply is switched ON.
±1.0% F.S. (+23 ±2°C)
Extension up to total 10m, or less, is possible with
±2.0% F.S. (-20 to +70°C)
0.2mm
Make sure that stress by forcible bend or pulling is not
-20 to +70°C applied to the cable joint.
Do not run the wires together with high-voltage lines or
DPH-L154
power lines or put them in the same raceway. This can
(Note 2)
cause malfunction due to induction.
0 to 50MPa
Do not insert wires, etc. into the pressure port. The
75MPa
diaphragm will get damaged and correct operation
shall not be maintained.
-20 to +125°C
Shield gauge pressure (Note 4)
9 to 36V DC (Note 5)
20mA or less
1ms or less
IP67 (IEC)
2
3-core heat-resistant PVC cable 2m
Approx. 100g
e-CON: 1 pc.
Panasonic Industry Co., Ltd.
1006, Oaza Kadoma, Kadoma-shi, Osaka 571-8506, Japan
https://industry.panasonic.com/
Please visit our website for inquiries and about our sales network.
Panasonic Industry Co., Ltd. 2024
April, 2024
2
, or more, conductor area cable.
PRINTED IN JAPAN
