- Page 1 Smart Tag Device User Guide Information about features and functionality of the devices 11/2022 www.elko.no...
- Page 2 Legal Information The ELKO brand and any trademarks of ELKO AS and its subsidiaries referred to in this guide are the property of ELKO AS or its subsidiaries. All other brands may be trademarks of their respective owners. This guide and its content are protected under applicable copyright laws and furnished for informational use only.
-
Page 3: Table Of Contents
Table of Contents Safety information ..................4 Smart Tag Energy ..................5 For your safety ...................5 About the device..................6 Installing the device ..................6 Supported mounting positions..............7 Pairing the device ..................8 Pairing device manually.................8 Pairing device with auto scan...............10 Configuring the device ................11 Setting Smart Tag as Grid.............. -
Page 4: Safety Information
Safety information Safety information Important information Read these instructions carefully and look at the equipment to become familiar with the device before trying to install, operate, service, or maintain it. The following special messages may appear throughout this manual or on the equipment to warn of potential hazards or to call attention to information that clarifies or simplifies a procedure. -
Page 5: Smart Tag Energy
Smart Tag Energy Smart Tag Energy EKO01824 EKO01825 EKO01826 EKO01951 EKO01952 For your safety DANGER HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH Safe electrical installation must be carried out only by qualified electrical personnel. Qualified electrical personnel must prove profound knowledge in the following areas: •... -
Page 6: About The Device
Compact and cost effective. Installing the device It is recommended to install the Smart Tag within 3 meters of the ELKO SmartHub for best results. This provides good network signal strength and helps to prevent online/offline issues, which might result in corrupt data. Refer to the installation instruction supplied with this product. -
Page 7: Supported Mounting Positions

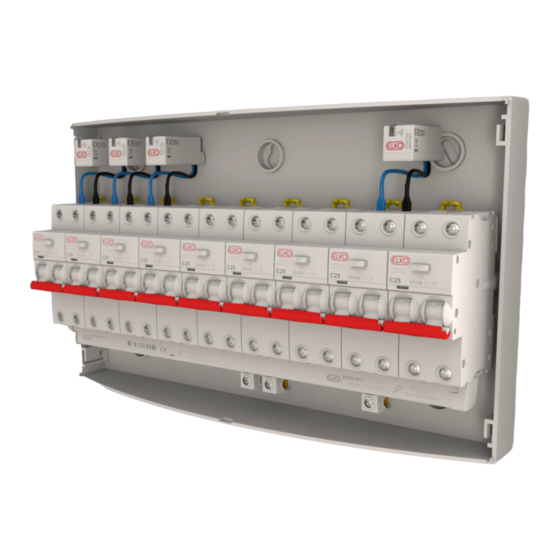

Smart Tag Energy Supported mounting positions Mounting position Smart Tag Model number Smart Tag 1P+N 230 V EKO01824 Top or bottom Smart Tag 3P 230 V EKO01825 Smart Tag 3P+N 400 V EKO01826 Top or bottom Smart Tag Flex 1P+N 230 V... -
Page 8: Pairing The Device
Smart Tag Energy Pairing the device Pair your Smart Tag with the ELKO SmartHub to access and control the Smart Tag using the ELKO smart app. • We recommend to configure your main Smart Tag as Grid on the main incomer of the house. - Page 9 Smart Tag Energy 4. To pair the device with install code, tap Add Device with Install Code to display the slide-up menu. Select any one of the options (B): – Scan Install Code - you can scan the device for the install code. Position your camera to scan the QR code or barcode available on the Smart Tag.
-
Page 10: Pairing Device With Auto Scan
3. If you have one hub proceed with step 5, if you have multiple hubs proceed with step 4. 4. Tap Select hub and select the ELKO SmartHub from the slide-up menu. 5. Tap Next and select Smart Tag. Auto Scan... -
Page 11: Configuring The Device
Smart Tag Energy Configuring the device Setting Smart Tag as Grid It is mandatory to configure the main Smart Tag as Grid on the main incomer of the house. This helps to record the overall consumption and to display recorded data in Energy Dashboard tab. -
Page 12: Tariff Information
Smart Tag Energy Tariff information You can view and update tariff information in the ELKO Smart app to access your energy cost and billing data. To access tariff information: 1. Tap on the home page. 2. Select Home Management and select your home where the energy device is installed, to view Home Settings. - Page 13 Smart Tag Energy Setting contract options You can update flat and peak rate based on your contract option in the ELKO Smart app. To set the contract option: 1. Tap My Contract Options on Electricity page. 2. In the slide-up menu, select any one of the following (A): –...
- Page 14 Setting subscription type Based on your electricity subscription, you can update subscription period and price in the ELKO Smart app. To set the subscription type: 1. Tap Subscription Type on Electricity page. 2. Select the subscription period (A).
- Page 15 Smart Tag Energy Adding tariff rate You can add flat and peak rate value in the ELKO Smart app. To add a rate: 1. Tap Add a Rate on Electricity page. 2. Enter name and rate per kWh (A). 3. Tap Add (B).
-
Page 16: Checking Currency Type
Smart Tag Energy Checking currency type You can view the currency type in the ELKO Smart app. NOTE: Default currency is set based on the home location. To view currency type: 1. Tap on the home page. 2. Select Home Management and select your home where the energy device is installed, to view Home Settings. -
Page 17: Identifying The Device
Smart Tag Energy Identifying the device Using the ELKO Smart app, you can identify the device. To identify the Smart Tag: 1. On the Home page, select the desired Smart Tag from the list of available devices. 2. Tap Settings (A) and then tap Identify (B). -
Page 18: Changing The Device Icon
Smart Tag Energy Changing the device icon You can change the device icon using the ELKO Smart app. 1. On the Home page, select the device for which you wish to change the icon. 2. At the top-right corner of the screen, tap 3. -
Page 19: Using The Device
Smart Tag Energy Using the device Identifying the signal strength The signal strength is an indicator of the wireless range that is received by the device. To check the signal strength: 1. On the Home page, select the Smart Tag for which you want to check the signal strength. - Page 20 Smart Tag Energy 3. In the History window, select required time frame: – Day: to view the daily consumption. NOTE: Hourly information is only available for last 7 days. – Week: to view the weekly consumption. – Month: to view the monthly consumption. –...
-
Page 21: Creating An Automation
Creating an automation An automation allows you to group multiple actions that are usually done together, triggered automatically or at scheduled times. By using the ELKO Smart app, you can create automations based on your needs. NOTE: Automation is only possible with the Smart Tag assigned as Grid. - Page 22 Smart Tag Energy 6. In the Add Condition menu, you can do either or all of the following options (C): – When weather changes: select various weather settings. – Schedule: set the time and day. – When device status changes: select the device and its function. NOTE: You can add one or more conditions using Automation settings Automation settings...
- Page 23 Smart Tag Energy 9. In the Add task menu, you can do either or all of the following options (E): – Run the device: select the devices that you want to trigger. – Moment or Automation: select the moment which you want to trigger or select the automation that you want to enable or disable.
- Page 24 Smart Tag Energy Example of an Automation This demonstration shows you how to create an automation to switch off the load and receive notification when total active power consumption is more than set value. 1. Go to Automation > + to create an automation. 2.
-
Page 25: Removing The Device
NOTE: After deleting an automation, the device action can no longer be triggered. Removing the device Using the ELKO Smart app, you can remove a device from the device list. To remove a Smart Tag: 1. On the Home page, tap All devices and select the Smart Tag to be removed. -
Page 26: Led Indications
LED indications Behavior Communication indicator light Smart Tag switched off. Smart Tag is searching a ELKO SmartHub in pairing mode. Smart Tag is in identification mode. Smart Tag is in network. Normal communication with the ELKO SmartHub. Occasional loss of communication. -
Page 27: Troubleshooting
Signal strength is bad. Poor signal between the ELKO SmartHub Move the ELKO SmartHub closer to the and Smart Tag. thermostat. Dashboard is blank and the user unable to User has not set any Smart Tag as Grid. -
Page 28: Technical Data
Smart Tag Energy Technical data Main data Commercial EKO01824 EKO01825 EKO01826 EKO01951 EKO01952 Reference E-number Not defined Product color White Product or Energy Sensors component type Features Rated Voltage 1P+N/2P Phase-to-neutral/Phase- 200...240 V AC ± 20 % to-phase Phase-to-phase 380...415 V AC ± 20 % 3P+N Phase-to-neutral 220...240 V AC ±... - Page 29 Smart Tag Energy Characteristics of measuring functions Function Performance category as per Device measuring range IEC 61557–12 PMD-I/DD/K55/1 Active energy Class 1 Total and partial 0 to 99999999.9 kWh (delivered and received) 1P+N ≤ 1 VA Power Class 1 3P/3P+N ≤...
- Page 30 Trademarks This guide makes reference to system and brand names that are trademarks of their relevant owners. • Zigbee is a registered trademark of the Connectivity Standards Alliance. ® • Apple and App Store are brand names or registered trademarks of Apple Inc. ®...
- Page 32 ELKO AS Sandstuveien 68 0680 Oslo Norway +47 67 80 73 00 elko@elko.no www.elko.no As standards, specifications, and design change from time to time, please ask for confirmation of the information given in this publication. © 2022 – All rights reserved.
