Quick Start Guide
00825-0200-3300, Rev AA
November 2020
Rosemount 3500P/3500VP
PERpH-X High Performance pH/ORP
Sensors

Advertisement

loading

Subscribe to Our Youtube Channel

Summary of Contents for Emerson Rosemount 3500P

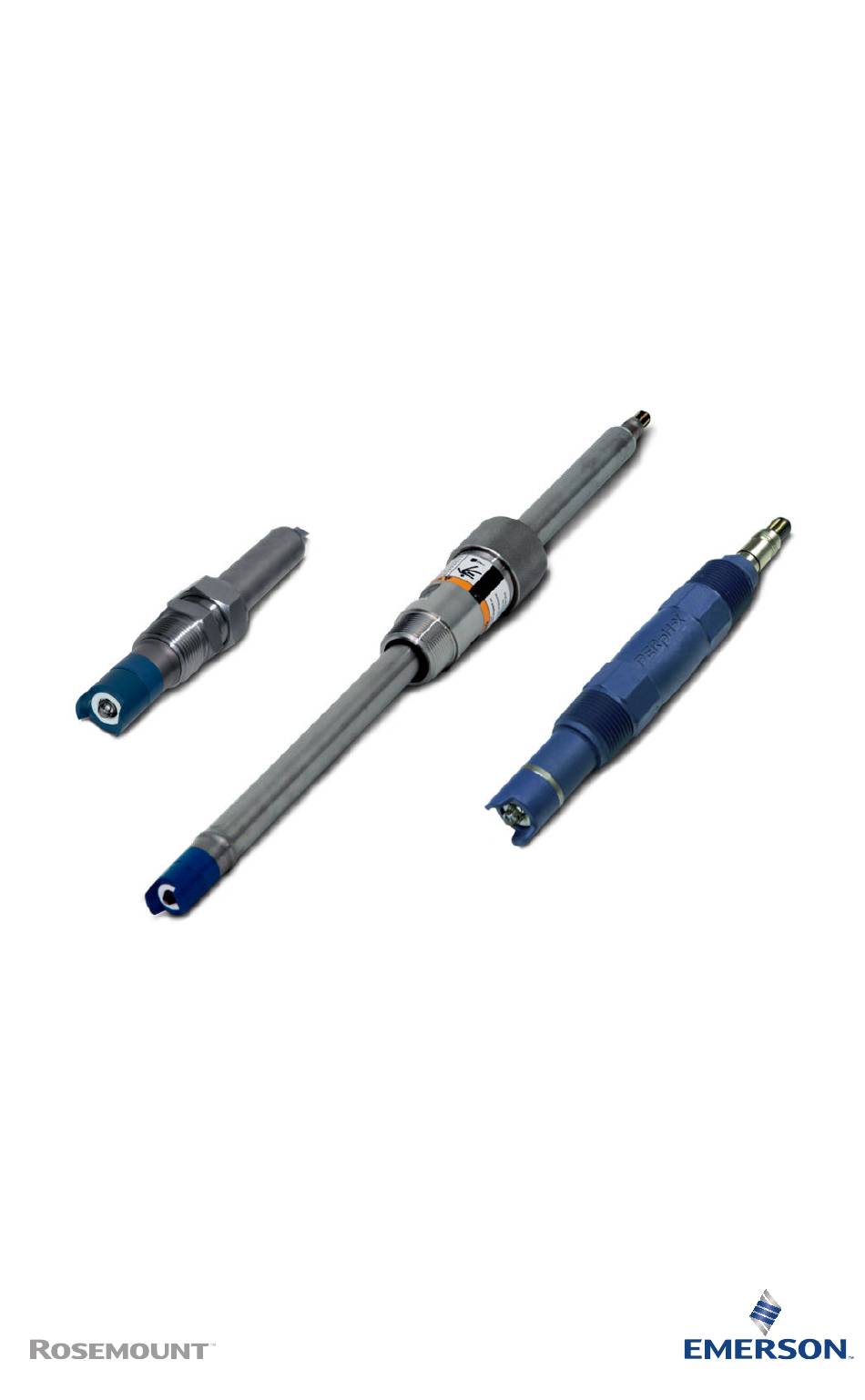

  • Page 1 Quick Start Guide 00825-0200-3300, Rev AA November 2020 Rosemount 3500P/3500VP PERpH-X High Performance pH/ORP Sensors...
  • Page 2 • Read all instructions prior to installing, operating, and servicing the product. • If you do not understand any of the instructions, contact your Emerson representative for clarification. • Follow all warnings, cautions, and instructions marked on and supplied with the product.
  • Page 3: Table Of Contents

    November 2020 Quick Start Guide CAUTION Sensor/process application compatibility The wetted sensor materials may not be compatible with process composition and operating conditions. Application compatibility is entirely the operator's responsibility. Contents Install............................5 Start up and calibrate......................... 16 Maintenance..........................18 Rosemount pH/ORP sensor(s) product certifications..............20 Declaration of Conformity......................27 China RoHS table........................29...
  • Page 4 Quick Start Guide November 2020 Emerson.com/Rosemount...
  • Page 5: Install

    2. Store electrodes with a protective cap containing KCl solution (PN 9210342). 3. For overnight storage, immerse the sensor in tap water or 4 pH buffer solution. Installation Figure 1-1: Rosemount 3500P and 3500VP Sensor Dimensional Drawing Quick Start Guide...
  • Page 6 H. 2-in. NPT threads I. Sensor J. 1-in. PVC coupling for submersible applications (supplied by others) K. 1-in. PVC or stainless conduit (supplied by others) L. Cable M. Timer supplied by others or use timer feature in Rosemount instrument Emerson.com/Rosemount...
  • Page 7 November 2020 Quick Start Guide Figure 1-3: Rosemount 3500P and 3500VP Flow through Installation A. 1½-in. (38.1 mm) schedule 80 CPVC tee with 1-in. (25.4 mm) female national pipe thread (FNPT) connections (code 16) straight flow shown B. Always mount sensor at least 10 degrees above horizontal.
  • Page 8 F. Unistrut 1⅝-in. x 1⅝-in. (41.3 x 41. 3 mm) aluminum G. 1½-in. (38.1 mm) pipe clamp, two places H. Can be any convenient dimension I. Customer handrail, two places J. Mounting channel aluminum, two places K. Locking pin with bead chain Note Unless otherwise specified. Emerson.com/Rosemount...
  • Page 10 Emerson.com/ RosemountLiquidAnalysisWiring. Figure 1-5: Rosemount PERpH-X Sensors, Preamplifier in Analyzer For Rosemount 3500P and 3500VP, option codes -02, -07, and -08 Non-preamplifier sensors Blue cable Table 1-1: Rosemount PERpH-X Sensors, Preamplifier in Analyzer...
  • Page 11 Quick Start Guide November 2020 Table 1-1: Rosemount PERpH-X Sensors, Preamplifier in Analyzer (continued) Wire color Rosemount 56, 1056, Rosemount 54e and 5081 Rosemount 1057, and 1066 terminal terminal number XMT terminal number number Orange mV/pH in -5 Vdc +5 Vdc Emerson.com/Rosemount...
  • Page 12 November 2020 Quick Start Guide Figure 1-6: Rosemount PERpH-X Sensors, Preamplifier in Junction Box For Rosemount 3500P and 3500VP, option codes -02, -07, and -08 Non-preamplifier sensors Blue cable Extension cable PN 23646-01 or 9200273 shown. Can also use extension cable PN 9200348; extend color scheme from sensor or VP8 cable instead of using shown wiring scheme.
  • Page 13 Extension Rosemount 56, Rosemount 54e Rosemount color cable 1056, 1057, and and 5081 XMT terminal terminal color 1066 terminal terminal number number number number Clear White/ mV/pH shield black Orange Black mV/pH in Brown -5 Vdc Green +5 Vdc Emerson.com/Rosemount...
  • Page 14 November 2020 Quick Start Guide Figure 1-7: PERpH-X Sensors, Preamplifier in Sensor For Rosemount 3500P and 3500VP, option codes -01, -03, -04, -05, and -06 Preamplifier in sensor Blue cable Table 1-3: Rosemount PERpH-X Sensors, Preamplifier in Sensor Wire color...
  • Page 16 November 2020 Figure 1-8: Rosemount PERpH-X Sensors, Preamplifier in Sensor, Junction Box Used for Extending Cable For Rosemount 3500P and 3500VP, option codes -01, -03, -04, -05, and -06 Preamplifier in sensor Blue cable Extension cable PN 23646-01 or 9200273 shown.
  • Page 17 November 2020 Quick Start Guide Table 1-4: Rosemount PERpH-X Sensors, Preamplifier in Sensor, Junction Box Used for Extending Cable (continued) Wire Junction Extension Rosemount 56, Rosemount Rosemount color cable color 1056, 1057, 54e and 5081 XMT terminal terminal and 1066 terminal number number...
  • Page 19: Start Up And Calibrate

    59.17 mV/pH. Over time the sensor will age, both in the process and in storage, and this will result in reduced slope values. To ensure accurate readings, Emerson recommends replacing the electrode when the slope value falls below 47 to 49 mV/pH.
  • Page 20 November 2020 Quick Start Guide the sensor to the process. Standardization accounts for the sensor junction potential and other interferences. Standardization does not change the sensor's slope, but simply adjusts the transmitter's reading to match that of a known process pH. Quick Start Guide...
  • Page 21: Maintenance

    5. Replace the junction O-ring and liquid junction by sliding them over the glass electrode. Excess reference gel should flow out. 6. Replace junction cap by turning clockwise. Hand tighten the junction cap only; do not use pliers to tighten the cap. Emerson.com/Rosemount...
  • Page 22 November 2020 Quick Start Guide 7. Buffer check and calibrate the sensor as described in Calibrate with two point pH buffer solution. Quick Start Guide...
  • Page 23: Rosemount Ph/Orp Sensor(S) Product Certifications

    A copy of the EU Declaration of Conformity can be found at the end of the Quick Start Guide. The most recent revision of the EU Declaration of Conformity can be found at Emerson.com/Rosemount. Ordinary location certification As standard, the transmitter has been examined and tested to determine...
  • Page 24 November 2020 Quick Start Guide e. Model 396P-a-b-c-d-e. Submersion/insertion pH/ORP sensor f. Model 396PVP-a-b-c-d-e. Submersion/insertion pH/ORP sensor g. Model 396RVP-a-b-c-d-e. Retraction/submersion/insertion pH/ORP sensor h. Model 398RVP-a-b-c-d-e-f. pH/ORP sensor i. Model 3200HP-00. High purity water pH sensor j. Model 3300HTVP-a-b-c-d. High performance pH and ORP sensor k.
  • Page 25 Class I, Division 1, Groups ABCD; Class II, Division 1, Groups EFG; Class III; Class I, Division 2, Groups ABCD; ambient temperature rating –20 °C to +60 °C; Ex ia IIC; T6: Class I, Zone 0, AEx ia IIC ; T6 Emerson.com/Rosemount...
  • Page 26 November 2020 Quick Start Guide Sensor apparatus with preamplifier: Class I, Division 1, Groups ABCD; Class II, Division 1, Groups EFG; Class III; Class I, Division 2, Groups ABCD; ambient temperature rating –20 °C to +60 °C; Ex ia IIC; T6: Class I, Zone 0, AEx ia IIC ;...
  • Page 27 Ex ia IIC T4 Ga (–20 °C to +80 °C) Ex ia IIC T5 Ga (–20 °C to +40 °C) pH sensors with integral standard preamplifier fitted Ex ia IIC T4 Ga (–20 °C to +80 °C) Ex ia IIC T5 Ga (–20 °C to +40 °C) Emerson.com/Rosemount...
  • Page 28 November 2020 Quick Start Guide Specific Conditions for Safe Use (X): 1. All pH/ORP sensor models with a plastic enclosure or exposed plastic parts may provide an electrostatic ignition hazard and must only be cleaned with a damp cloth to avoid the danger of ignition due to build-up of electrostatic charge.
  • Page 29 Quick Start Guide November 2020 Ex ia IIC T5 Ga (–20 °C to +40 °C) Specific Condition for Safe Use (X): See certificate for special conditions. Emerson.com/Rosemount...
  • Page 31: Declaration Of Conformity

    November 2020 Quick Start Guide Declaration of Conformity Quick Start Guide...
  • Page 32 Quick Start Guide November 2020 Emerson.com/Rosemount...
  • Page 33: China Rohs Table

    November 2020 Quick Start Guide China RoHS table Quick Start Guide...
  • Page 34: Intrinsically Safe Sensor Installation Drawing - Fm

    Quick Start Guide November 2020 Intrinsically safe sensor installation drawing - Emerson.com/Rosemount...
  • Page 35 November 2020 Quick Start Guide Quick Start Guide...
  • Page 36 LinkedIn.com/company/Emerson- Automation-Solutions The Emerson logo is a trademark and service mark of Emerson Electric Co. Rosemount is a Twitter.com/rosemount_news mark of one of the Emerson family of companies. Facebook.com/Rosemount All other marks are the property of their Youtube.com/RosemountMeasurement respective owners.
