Synergy Global Technology LCDK3001 Quick Installation Manual

2 x USB 2.0 hub ports
User-definable Hotkey Preceding Sequence
Firmware Upgradable
Resolution up to Digital 1920 x 1200 / Analog 2048 x 1536
HDCP Support
8-port DVI USB KVM Switch
w/ Audio & Microphone Switching
and 2 x USB 2.0 device hub ports
Quick Installation Guide
Thank you for purchasing the 8-port DVI USB KVM Switch w/
Audio&Mic Switching! With our highly reliable and quality
product, user can enjoy countless benefits from using this KVM
Switch.

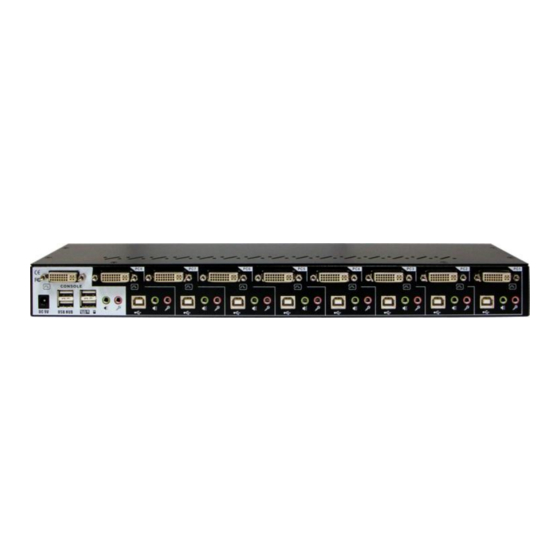

Rear View
Introduction
The DVI USB KVM Switch is an 8-port DVI USB KVM Switch that
allows you to access, control, boot and reboot multiple USB-
enabled multimedia computers using only one USB keyboard,
mouse, DVI monitor /Flat Panel Display and a speaker set and
microphone.
It supports both digital video (2048 x 1536) and analog video
(1920 x 1200) for your maximum convenience in adapting to your
display requirements. It also offers two USB 2.0 device hub ports
for high-speed USB device sharing. Its Audio&Mic switching
function offers you uninterrupted multimedia experience while
performing KVM Switching with multi-platform support for PC,
Macintosh G4/G5 and iMAC. For users who might need to use a
hotkey preceding sequence other than two scroll locks, we also
offer five key alternatives for free configuration.
It supports HDCP compliant for digital contents protection.
This KVM Switch also allows its user to upgrade firmware
contents whenever is needed to enhance compatibility or
functionality.
For the Flash upgrade procedure, please refer to the Flash Upgrade Operation Guide
provided with the new version of Firmware upgrade file.
Synergy Global Technology, Inc 41394 Christy Street , Fremont, CA 94538 Tel: 510-226-8368 , Fax : 510-226-8968 www.Rackmountmart.com
Model: LCDK3001

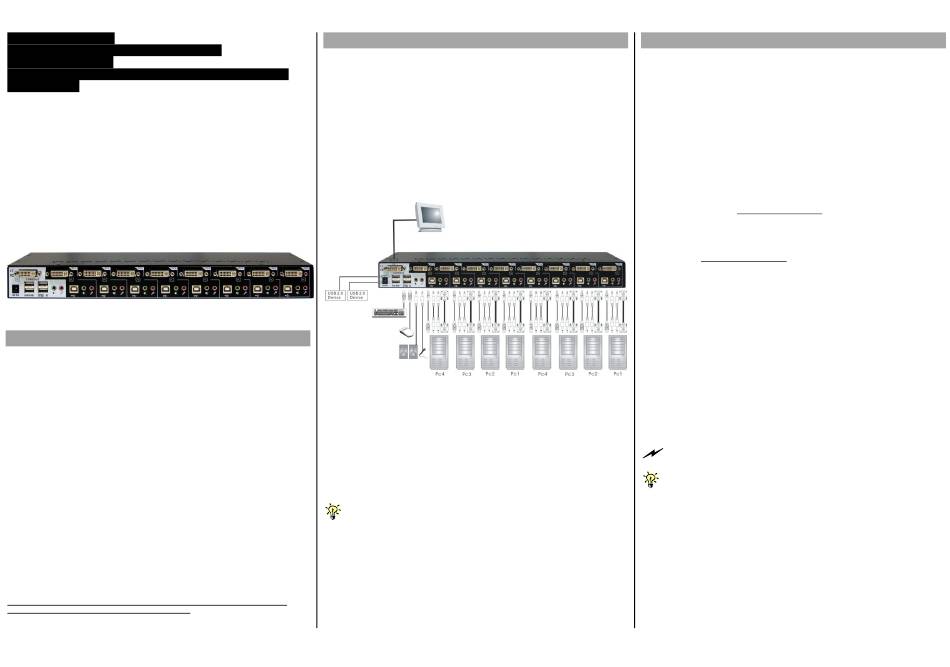

Out-of-the-box Installation
The default setting of the DVI USB KVM Switch is appropriate
for most systems. In fact, you do not need to configure the KVM
Switch before installation.
The KVM Switch is a Plug-and-Play device for installation. For a
quick start on installation and operation, please follow the
instructions below for the setup sequence:
Take the KVM Switch out of the box and begin installation....
Step 1. Power up you KVM Switch by connecting the external
power adapter to it.
Configuration
Step 2. Connect the shared USB keyboard, mouse and monitor
and a speaker set and microphone as well as other
shared USB devices to the KVM switch.
Step 3. Connect each of your computers to the KVM switch,
using the DVI-D video cable and USB (Type A-to-Type B)
cable and audio & Mic cables).
Since USB interface is hot-pluggable, you don't have to turn off the
computer before making connections to the USB KVM.
Step 4. (Now your KVM Switch should have been powered-up....)
Power up the connected computers one by one. After
your computers are powered up, the keyboard and
mouse will be recognized and now you can begin
operating the KVM switch.
Easy Operation
There are two methods to control your KVM Switch for PC, USB
hub port as well as audio/mic channel selection: using the front-
panel push buttons or a hotkey sequence.
Front-panel buttons
The front-panel buttons let you have direct control over KVM
switch operation and channel switching. Simply press the PC
button for PC port switching (and if binding is enabled between
PC / USB hub port control / audio&mic switching, they will be
jointly selected at the same time). If you want to enable the
binding of PC / Hub port control / Audio&Mic switching, use the
hotkey sequences.
See Quick Reference Sheet
Keyboard hotkey
A keyboard hotkey sequence consists of at least three specific
keystrokes:
See Quick Reference Sheet
*
Hotkey sequence = [ScrLk] + [ScrLk]
* User-definable = SCROLL LOCK, CAPS, ESC, F12 or NUM LOCK
Hotkey preceding sequence configuration: For users who want to use
a preceding sequence other than two consecutive Scroll Locks, there is
also one convenient way to configure it.
(1)Hit ScrollLock + ScrollLock + H, then two beeps will signal readiness
for new preceding sequence selection [or Press and hold down the last
front-panel button (Button 2 or Button 4) until you hear two beeps, then
release the button.]
(2) Select and press the key you would like to use as your preceding
sequence (SCROLL LOCK, CAPS, ESC, F12 or NUM LOCK keys are
available for selection) and you'll hear a beep for selection confirmation.
Now you can use the new preceding sequence to execute your hotkey
commands.
Each keystroke within a hotkey sequence should be pressed within 2
seconds. Otherwise, the hotkey sequence will not be validated.
For detailed Hotkey sequences and their corresponding functional
commands, please refer to the Quick reference sheet.
Synergy Global Technology, Inc
41394 Christy Street
Fremont, CA 94538
T: 510-226-8368
F: 510-226-8968
www.rackmountmart.com
Rev.1.0 Copyright© All rights reserved.
*
+ Command key(s)
