- Page 2 User Manual LCDK1022 2K KVM www.RackmountMart.com...
- Page 3 Legal Information First English printing, January 2020 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 4: Before Installation
Contents LCDK1022 < Part. 1 > 2K KVM Package Contents KVM port connection Specifi cations < Part. 2 > 2K KVM Usage KVM Button KVM Hotkey Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. -
Page 5: Package Contents

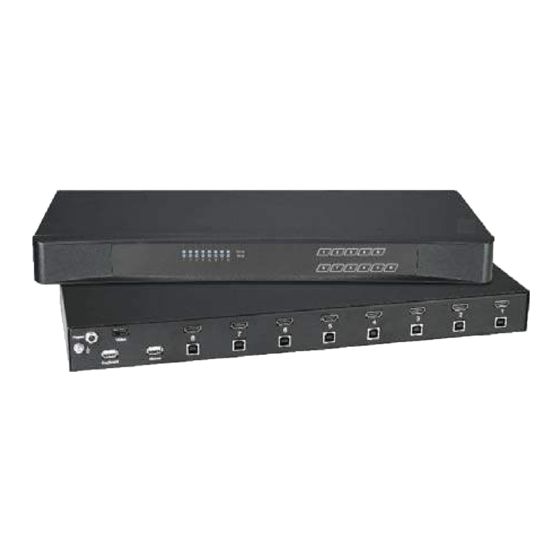

< Part 1 > 2K KVM 2K KVM < 1.1 > Package Contents LCDK1022 KVM unit • 2K KVM unit x 1 • Mounting set w/ bracket & screws x 1 • Power adapter w/ power cord ( for KVM ) x 1... -
Page 6: Kvm Port Connection
< 1.2 > KVM port connection 2K KVM DVI-D HDMI LCD-A3011 KVM cable LCD-A3012 KVM cable USB-A USB-A Video Keyboard Mouse Local Console KVM port x 8 1 x HDMI 1.4 ( HDMI + USB-B ) 2 x USB-A ( KB / MS ) 2K KVM Cable LCD-A3011 : 6 feet DVI-D KVM cable ( Server end : DVI-D + USB-A ) -
Page 7: Specifications
< 1.3 > Specifi cations 2K KVM LCDK1022 KVM Port ▀ Number of ports : Connector : HDMI 1.4 + USB-B ( Video + KB / MS ) Resolution : 16 : 9 - max. 2560 x 1440@60Hz 16 : 10 - max. 1920 x 1200@60Hz 4 : 3 - max. -
Page 8: Kvm Button
< Part 2 > Usage 2K KVM Usage < 2.1 > KVM Button Power ON ■ Turn off all servers and KVM switches ■ Make sure all cables / connectors are properly connected ■ Recommend Power ON sequence is monitor, KVM switch fi nally computer Front Panel - Port LED Indications 8 ports PC port LEDs... -
Page 9: Kvm Hotkey
The company reserves the right to modify product speciÞ cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2020 Synergy Global Technology Inc. All rights reserved. www.RackmountMart.com...
