- Page 1 Toll Free: 1-888-865-6888 Tel: 510-226-8368 Fax: 510-226-8968 Email: sales@RackmountMart.com...

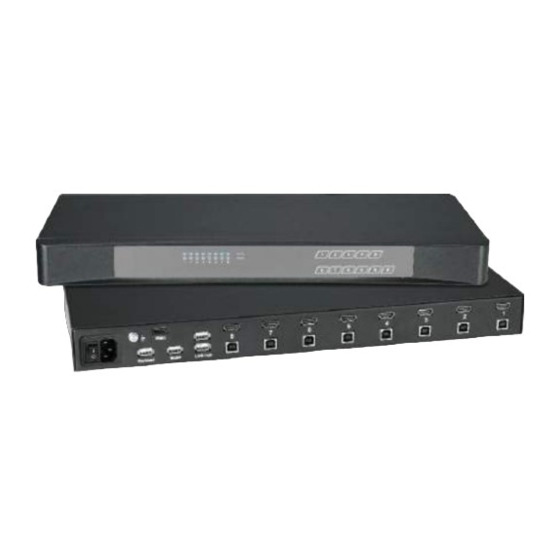

- Page 2 User Manual Matrix DB-15 LCDK2010-31 / 41 / 42 LCDK2011-31 / 41 / 42 Matrix DB-15 KVM LCDK2004-2 / 3 / 4 LCDK2005-2 / 3 / 4 www.RackmountMart.com...
- Page 3 Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 4: Table Of Contents
Contents < Part 1 > Matrix DB-15 LCDK2010-31 / 41 / 42 LCDK2011-31 / 41 / 42 Package contents KVM port connection IP, Remote & Local console connection P.3 - 4 IP console setting KVM Cascade Specifi cations < Part 2 > Matrix DB-15 KVM... - Page 5 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
-
Page 6: Part 1 > Matrix
< Part 1 > Matrix DB-15 < 1.1 > Package Contents Matrix DB-15 IP KVM LCDK2010-31 / 41 / 42 LCDK2011-31 / 41 / 42 • LCDK2010-31 or 41 or 42 LCDK2011-31 or 41 or 42 KVM unit x 1 •... -
Page 7: Kvm Port Connection
< 1.2 > KVM port connection Matrix DB-15 IP KVM USB Servers LCD-A3001 / 3002 / 3003 Combo KVM cable support PS/2 or USB server DB-15 Combo KVM port LCD-A3001 / 3002 / 3003 Combo KVM cable support PS/2 or USB server PS/2 Servers LCD-A3001 / 3002 / 3003 ■... -
Page 8: Ip, Remote & Local Console Connection
< 1.3 > IP, Remote & Local console connection Matrix DB-15 IP KVM Network device hub or router CAT 5 / 6 cable max. 100m Remote USB console Receiver CAT 5 / 6 cable max. 150m Local Remote Cat6 console Console Network device hub or router... - Page 9 How to use a receiver to connect a remote console Matrix DB-15 IP KVM Receiver Local Computer Monitor Remote I/O Front Power Rear Local Remote Mouse Button Button KVM switch The receiver provides a hotkey function for remote console. Please refer to P.19 Monitor Remote Console...
-
Page 10: Ip Console Setting
< 1.4 > IP console setting Matrix DB-15 IP KVM After the cable connection, please take the following steps to confi gure the IP KVM : 1. Download IPKVMsetup.exe from the link: http://www.rackmountmart.com/downloads.html 2. Double click IPKVMsetup.exe to confi gure the IP KVM by device setup as below. 3. -
Page 11: Kvm Cascade
< 1.5 > KVM Cascade Matrix DB-15 IP KVM ■ Cascade up to 8 levels, 240 servers ■ Cascading multiple KVM with LCD-A1024 cascade cable. Cascaded KVMs from level 2 to 8 must be the models of LCDK2004-2/LCDK2005-2 or LCDK2006-2/LCDK2007-2 When multiple matrix KVMs cascade together, the master KVM at level 1 will take all control of other slave KVM switches (e.g. -
Page 12: Specifi Cations
< 1.6 > Specifi cations Matrix DB-15 IP KVM LCDK2010-31 / 41 / 42 LCDK2011-31 / 41 / 42 KVM Port ▀ Number of ports: 8 or 16 Connector: DB-15 combo connector Connectivity: Combo 4-in-1 KVM cable up to 6, 10 & 15 feet Local Console ▀... -
Page 13: Part 2. Matrix Db-15 Kvm
Part 2. Matrix DB-15 KVM < 2.1 > Package Contents Matrix DB-15 KVM LCDK2004-2 / LCDK2005-2 • LCDK2004-2 or LCDK2005-2 KVM unit x 1 • Mounting set w/ bracket & screws x 1 KVM unit • Power adapter w/ power cord ( for KVM ) x 1 •... - Page 14 Matrix DB-15 KVM LCDK2004-2 Local Console Remote Console 1 Power Cascade LCDK2005-2 LCDK2004-3 Local Console Remote Console 1 Power Remote-2 Cascade LCDK2005-3 LCDK2004-4 Remote-3 Local Console Remote Console 1 Power Remote-2 Cascade LCDK2005-4 P.10 www.RackmountMart.com...
- Page 15 < 2.2 > KVM port connection Matrix DB-15 KVM USB Servers LCD-A3001 / 3002 / 3003 Combo KVM cable support PS/2 or USB server DB-15 Combo KVM port LCD-A3001 / 3002 / 3003 Combo KVM cable support PS/2 or USB server PS/2 Servers LCD-A3001 / 3002 / 3003 ■...
- Page 16 < 2.3 > Local console & remote console connection Matrix DB-15 KVM Remote Receiver USB console 3 CAT 5 / 6 cable max. 150m Remote USB console 1 Receiver CAT 5 / 6 cable max. 150m Remote Local Remote Cat6 Cat6 Console 3 console...
- Page 17 How to use a receiver to connect a remote console Matrix DB-15 KVM Receiver Local Computer Monitor Remote I/O Front Power Rear Local Remote Mouse Button Button KVM switch The receiver provides a hotkey function for remote console. Please refer to P.19 Monitor Remote Console...
- Page 18 < 2.4 > KVM Cascade Matrix DB-15 KVM ■ Cascade up to 8 levels, 240 servers ■ Cascading multiple KVM with LCD-A1024 cascade cable. Cascaded KVMs from level 2 to 8 must be the models of LCDK2004-2/LCDK2005-2 or LCDK2006-2/LCDK2007-2 When multiple matrix KVMs cascade together, the master KVM at level 1 will take all control of other slave KVM switches (e.g.
-
Page 19: Lcdk2004-2 / 3 / 4
< 2.5 > Specifi cations Matrix DB-15 KVM LCDK2004-2 / 3 / 4 LCDK2005-2 / 3 / 4 KVM Port ▀ Number of ports: 8 or 16 Connector: DB-15 combo connector Connectivity: Combo 4-in-1 KVM cable up to 6, 10 & 15 feet Local Console ▀... -
Page 20: Part 3. Usage
Part 3. Usage Matrix DB-15 KVM Usage 3.1 KVM Button Power ON ■ Turn off all servers and KVM switches ■ Make sure all cables / connectors are properly connected ■ Recommend Power ON sequence is monitor, KVM switch fi nally computer Front Panel - Port LED Indications 8 ports Bank no. -
Page 21: Password
3.2 Password Matrix DB-15 KVM Usage The password is enabled by default, the default password is “00000000” eight zeros (Do not use “0” on number pad) ■ Enable password Scroll Lock + Scroll Lock + U Press the KVM hotkey Scroll Lock + Scroll Lock + P Logout the KVM by pressing the hotkey In SUPERVISOR level, enter “00000000”... -
Page 22: Kvm Osd
3.3 KVM OSD Matrix DB-15 KVM Usage OSD Menu OSD operation next to the system name The PC is powered on next to the system name The PC is selected Access F1 MAIN MENU Logout the OSD menu Previous menu Cancel / Quit Enter Complete / Switch to selected port... -
Page 23: Kvm Hotkey & Remote Console Hotkey
3.4 KVM Hotkey & Remote Console Hotkey Matrix DB-15 KVM Usage Local Console Hotkey Function Scroll Lock + Scroll Lock + Space Bar Calling OSD menu Right-button mouse + Esc Calling OSD menu Scroll Lock + Scroll Lock + Switch to previous port Scroll Lock + Scroll Lock + Switch to next port Scroll Lock + Scroll Lock +... - Page 24 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2013 Synergy Global Technology Inc. All rights reserved. www.RackmountMart.com...
