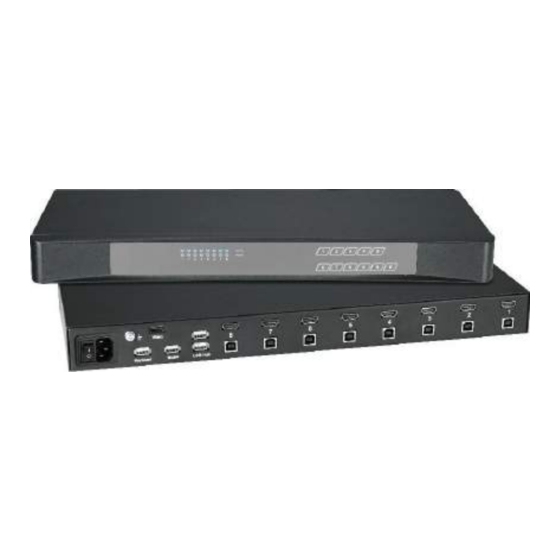

- Page 2 User Manual LCDK1023 4K KVM www.RackmountMart.com...
-
Page 3: Legal Information
Legal Information First English printing, April 2020 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment. -
Page 4: Before Installation
Contents < Part. 1 > 4K KVM LCDK1023 Package Contents KVM port connection Specifi cations < Part. 2 > 4K KVM Usage KVM Button KVM Hotkey Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. -
Page 5: Package Contents
< Part 1 > 4K KVM 4K KVM < 1.1 > Package Contents LCDK1023 KVM unit • 4K KVM unit x 1 • Mounting set w/ bracket & screws x 1 • Power adapter w/ power cord ( for KVM ) x 1... -
Page 6: Kvm Port Connection
< 1.2 > KVM port connection 4K KVM HDMI LCD-A3009 KVM cable LCD-A3008 KVM cable USB-A USB-A Video Keyboard Mouse USB Hub Local Console KVM port x 8 1 x HDMI 2.0 ( HDMI + USB-B ) 2 x USB-A ( USB Hub ) 2 x USB-A ( KB / MS ) 4K KVM Cable LCD-A3009 : 6 feet DP KVM cable... -
Page 7: Specifications
< 1.3 > Specifi cations 4K KVM LCDK1023 KVM Port ▀ Number of ports : Connector : HDMI 2.0 + USB-B ( Video + KB / MS ) Resolution : 16 : 9 - max. 3840 x 2160@60Hz 16 : 10 - max. 1920 x 1200@60Hz 4 : 3 - max. -
Page 8: Kvm Button
< Part 2 > Usage 4K KVM Usage < 2.1 > KVM Button Power ON ■ Turn off all servers and KVM switches ■ Make sure all cables / connectors are properly connected ■ Recommend Power ON sequence is monitor, KVM switch fi nally computer Front Panel - Port LED Indications 8 ports PC port LEDs... -
Page 9: Kvm Hotkey
The company reserves the right to modify product speciÞ cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2020 Synergy Global Technology Inc. All rights reserved. www.RackmountMart.com...
