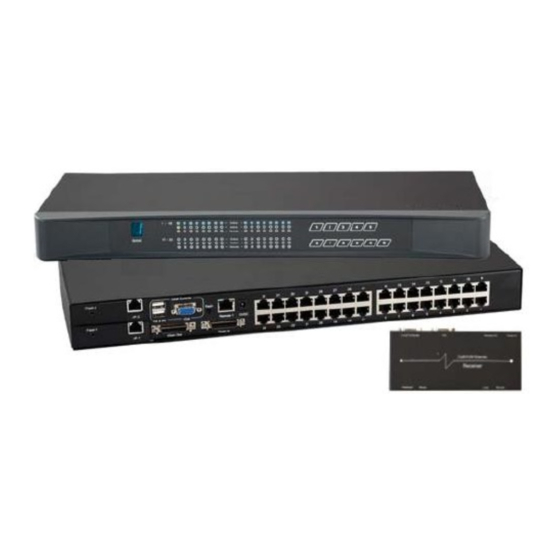

Summary of Contents for Synergy Global Technology LCDK2012-31

  • Page 2 User Manual Matrix Cat6 LCDK2012-31 / 41 / 42 LCDK2013-31 / 41 / 42 Matrix Cat6 KVM LCDK2006-2 / 3 / 4 LCDK2007-2 / 3 / 4...
  • Page 3 Legal Information First English printing, Jun 2021 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.

  • Page 4: Table Of Contents

    Contents < Part. 1 > Matrix Cat6 IP KVM LCDK2012-31 / 41 / 42 LCDK2013-31 / 41 / 42 Package Contents KVM port & Cat6 dongle connection IP, Remote & Local console connection P.3 - 4 IP console setting Important Preconfi guration for IP console P.6 - 8...
  • Page 5 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.

  • Page 6: Matrix Cat6 Ip Kvm

    < Part 1 > Matrix Cat6 Matrix Cat6 IP KVM < 1.1 > Package Contents LCDK2012-31 / 41 / 42 LCDK2013-31 / 41 / 42 • LCDK2012-31 or 41 or 42 LCDK2013-31 or 41 or 42 KVM unit x 1 •...

  • Page 7: Kvm Port & Cat6 Dongle Connection

    Matrix Cat6 IP KVM Matrix Cat6 IP KVM < 1.2 > KVM port & Cat6 dongle connection LCD-A2006 LCD-A2005 LCD-A2004 LCD-A2003 LCD-A2001 USB-C dongle DP-USB dongle HDMI-USB dongle DVI-USB dongle VGA-USB dongle (PS2 dongle is available) Servers LCD-A2006 USB-C CAT 5 / 6 cable LCD-A2005 max.

  • Page 8: Ip, Remote & Local Console Connection

    < 1.3 > IP, Remote & Local console connection Matrix Cat6 IP KVM Receiver For remote console, max. cable length is subject to the resolution. Please refer to the tables below. IP Console Remote Console Frequency Frequency Max. Cat6 Cable Resolution Support Resolution Support ( Hz )
  • Page 9 How to use a receiver to connect a remote console Matrix Cat6 IP KVM Local Power Computer Remote I/O Receiver Front Mouse Remote Local Rear Select button The receiver provides a hotkey function for remote console. Please refer to P.21 Remote Console Local computer...

  • Page 10: Ip Console Setting

    < 1.4 > IP console setting Matrix Cat6 IP KVM After the cable connection, please take the following steps to confi gure the IP KVM : 1. Download IPKVMsetup.exe from the link: http://www.rackmountmart.com/downloads.html 2. Double click IPKVMsetup.exe to confi gure the IP KVM by device setup as below. 3.

  • Page 11: Important Preconfi Guration For Ip Console

    < 1.5 > Important Preconfi guration for IP console Matrix Cat6 IP KVM You must complete the following tasks after the IP console setting is performed. ( 1 ) TARGET SERVER SETUP **Servers connected to KVM Resolution The IP KVM remote console recognizes several varieties of video display formats with resolutions up to 1600 x 1200 @60Hz.
  • Page 12 Matrix Cat6 IP KVM < 1.5 > Important Preconfi guration for IP console ( 2 ) REMOTE CLIENT COMPUTER SETUP The remote client computer must have a web browser ( such as Microsoft Internet Explorer, Mozilla Firefox, and Netscape Navigator ) and a Java Virtual Machine ( version 1.4 or higher ) installed. Enable Java on the web browser.
  • Page 13 Matrix Cat6 IP KVM 6) Click < Update > After the firmware has been updated, IP KVM will reset automatically. After one minute, you will be redirected to the Login page and requested to login again. - Completed www.RackmountMart.com...

  • Page 14: Kvm Cascade

    < 1.6 > KVM Cascade Matrix Cat6 IP KVM ■ Cascade up to 8 levels, 256 servers ■ Cascading multiple KVM with LCD-A1024 cascade cable. Cascaded KVMs from level 2 to 8 must be the models of LCDK2004-2/LCDK2005-2 or LCDK2006-2/LCDK2007-2 When multiple matrix KVMs cascade together, the master KVM at level 1 will take all control of other slave KVM switches (e.g.

  • Page 15: Specifi Cations

    < 1.7 > Specifi cations Matrix Cat6 IP KVM LCDK2012-31 / 41 / 42 LCDK2013-31 / 41 / 42 ▀ KVM Port Number of ports : 16 or 32 Connector : RJ-45 Connectivity : DVI-D / VGA connector dongle up to 40 meters (132 feet) via Cat6 / Cat5 cable ▀...

  • Page 16: Matrix Cat6 Kvm

    < Part 2 > Matrix Cat6 KVM Matrix Cat6 KVM < 2.1 > Package Contents LCDK2006-2 / LCDK2007-2 • LCDK2006-2 or LCDK2007-2 KVM unit x 1 • Mounting set w/ bracket & screws x 1 KVM unit • Power adapter w/ power cord ( for KVM ) x 1 •...
  • Page 17 Matrix Cat6 KVM LCDK2006-2 Local Console Remote Console 1 Power Cascade LCDK2007-2 LCDK2006-3 Local Console Remote Console 1 Power Remote-2 Cascade LCDK2007-3 LCDK2006-4 Remote-3 Local Console Remote Console 1 Power Remote-2 Cascade LCDK2007-4 www.RackmountMart.com P.12...

  • Page 18: Kvm Port & Cat6 Dongle Connection

    < 2.2 > KVM port & Cat6 dongle connection Matrix Cat6 KVM LCD-A2006 LCD-A2005 LCD-A2004 LCD-A2003 LCD-A2001 USB-C dongle DP-USB dongle HDMI-USB dongle DVI-USB dongle VGA-USB dongle (PS2 dongle is available) Servers LCD-A2006 USB-C CAT 5 / 6 cable CAT 5 / 6 cable LCD-A2005 max.

  • Page 19: Local Console & Remote Console Connection

    Matrix Cat6 KVM < 2.3 > Local console & remote console connection For remote console, max. cable length is subject to the resolution. Please refer to the tables below. Remote Console Frequency Max. Cat6 Cable Resolution Support ( Hz ) Length ( M ) 1920 x 1080 1920 x 1200...
  • Page 20 How to use a receiver to connect a remote console Matrix Cat6 KVM Local Power Computer Remote I/O Receiver Front Mouse Remote Local Rear Select button The receiver provides a hotkey function for remote console. Please refer to P.21 Remote Console Local computer CE-6...

  • Page 21: Kvm Cascade

    < 2.4 > KVM Cascade Matrix Cat6 KVM ■ Cascade up to 8 levels, 256 servers ■ Cascading multiple KVM with LCD-A1024 cascade cable. Cascaded KVMs from level 2 to 8 must be the models of LCDK2004-2/LCDK2005-2 or LCDK2006-2/LCDK2007-2 When multiple matrix KVMs cascade together, the master KVM at level 1 will take all control of other slave KVM switches (e.g.

  • Page 22: Specifi Cations

    Matrix Cat6 KVM < 2.5 > Specifi cations LCDK2006-2 / 3 / 4 LCDK2007-2 / 3 / 4 ▀ KVM Port Number of ports : 16 or 32 Connector : RJ-45 Connectivity : DVI-D / VGA connector dongle up to 40 meters (132 feet) via Cat6 / Cat5 cable ▀...

  • Page 23: Matrix Cat6 Kvm Usage

    < Part 3 > Usage Matrix Cat6 KVM Usage < 3.1 > KVM Button Power ON ■ Turn off all servers and KVM switches ■ Make sure all cables / connectors are properly connected ■ Recommend Power ON sequence is monitor, KVM switch fi nally computer Front Panel - Port LED Indications 16 ports Bank no.

  • Page 24: Password

    < 3.2 > Password Matrix Cat6 KVM Usage The password is enabled by default, the default password is “00000000” eight zeros (Do not use “0” on number pad) ■ Enable password Scroll Lock + Scroll Lock + U Press the KVM hotkey Scroll Lock + Scroll Lock + P Logout the KVM by pressing the hotkey In SUPERVISOR level, enter “00000000”...

  • Page 25: Kvm Osd

    < 3.3 > KVM OSD Matrix Cat6 KVM Usage OSD Menu OSD operation next to the system name The PC is powered on next to the system name The PC is selected Access F1 MAIN MENU Logout the OSD menu Previous menu Cancel / Quit Enter...

  • Page 26: Kvm Hotkey & Remote Console Hotkey

    < 3.4 > KVM Hotkey & Remote Console Hotkey Matrix Cat6 KVM Usage Matrix Cat6 KVM Usage Local Console Hotkey Function Scroll Lock + Scroll Lock + Space Bar Calling OSD menu Right-button mouse + Esc Calling OSD menu Scroll Lock + Scroll Lock + Switch to previous port Scroll Lock + Scroll Lock + Switch to next port...
  • Page 27 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2021 Synergy Global Technology Inc. All rights reserved. www.RackmountMart.com...
