Summary of Contents for MSI MS-7067

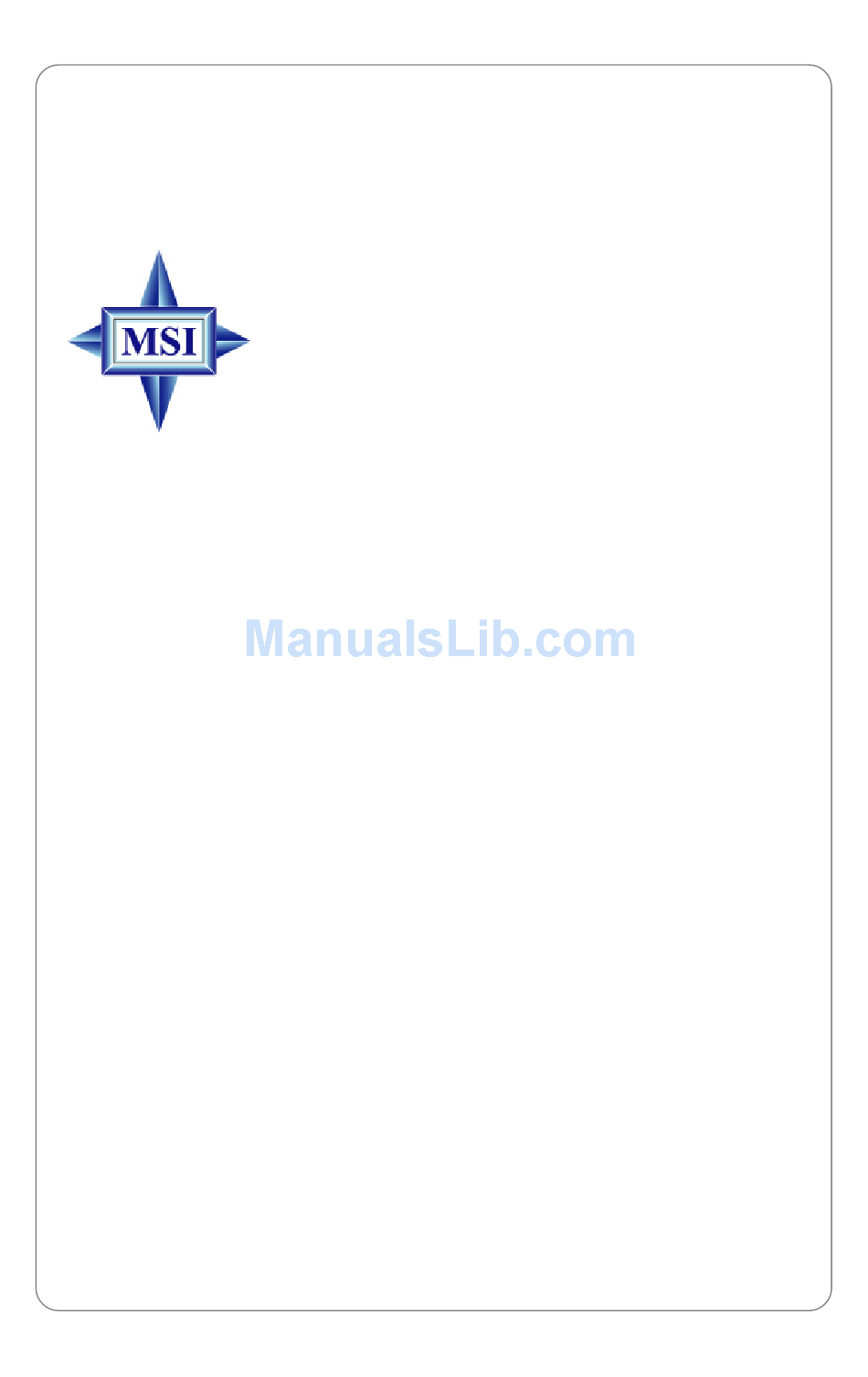

- Page 1 MS-7067 (v1.X) Micro ATX Mainboard English Version G52-M7067X1...
-
Page 2: Fcc-B Radio Frequency Interference Statement
VOIR LA NOTICE D’INSTALLATION AVANT DE RACCORDER AU RESEAU. Micro-Star International MS-7067 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 3: Copyright Notice
If a problem arises with your system and no solution can be obtained from the user’s manual, please contact your place of purchase or local distributor. Alternatively, please try the following help resources for further guidance. Visit the MSI website for FAQ, technical guide, BIOS updates, driver updates, and other information: faq/esc_faq_list.php Contact our technical staff at: http://www.msi.com.tw/program/service/faq/... -
Page 4: Safety Instructions
Safety Instructions Always read the safety instructions carefully. Keep this User’s Manual for future reference. Keep this equipment away from humidity. Lay this equipment on a reliable flat surface before setting it up. The openings on the enclosure are for air convection hence protects the equip- ment from overheating. -
Page 5: Table Of Contents
FCC-B Radio Frequency Interference Statement ... ii Copyright Notice ... iii Trademarks ... iii Revision History ... iii Technical Support ... iii Safety Instructions ... v Chapter 1. Getting Started ... 1-1 Mainboard Specifications ... 1-2 Mainboard Layout ... 1-4 Chapter 2. - Page 6 Front Panel Audio Connector: JAUD1, F_AUDIO (Optional) ... 2-16 I2C Bus Connector: I2C (Optional) ... 2-17 IEEE 1394 Connector: J1394_1, F1_1394 (Optional) ... 2-17 Jumper ... 2-18 BIOS Flash Jumper: BIOS_WP (Optional) ... 2-18 Clear CMOS Jumper: CLR_CMOS ... 2-18 AGP (Accelerated Graphics Port) Slot ...
-
Page 7: Chapter 1. Getting Started
Getting Started Chapter 1. Getting Started Getting Started Thank you for choosing the MS-7067 v1.x Micro-ATX mainboard. ® The MS-7067 mainboard is based on Intel 848P North Bridge & ICH5 South Bridge chipsets for optimal system efficiency. Designed ® ®... -
Page 8: Mainboard Specifications
Mainboard Specifications ® Supports Intel P4 Northwood / Prescott (Socket LGA775) processor Supports FSB 533MHz ~ 800MHz Supports up to 3.6GHz and above (For the latest information about CPU, please visit http://www.msi.com.tw/ program/products/mainboard/mbd/pro_mbd_cpu_support.php) Chipset ® Intel 848P chipset - Supports 533/800MHz Intel NetBurst micro-architecture bus - Supports AGP 8X/4X at 0.8V (AGP 3.0) or 4X at 1.5V (no support for 3.3V) - Page 9 - Integrated Fast Ethernet MAC and PHY in one chip - Supports 10/100Mb/s (for 8100C) and 10/100/1000Mb/s (for 8110S) auto- negotiation operation - Compliant with PCI v2.2, and LAN on Motherboard (LOM) standard BIOS The mainboard BIOS provides “Plug & Play” BIOS which detects the peripheral...
-
Page 10: Mainboard Layout
MS-7067 M-ATX Mainboard T: mouse SYS_FAN B: keyboard JPW1 Line-In Line-Out B: Mic CD_IN F_AUDIOJAUD1 MS-7067 v1.X M-ATX Mainboard 1 - 4 Mainboard Layout CPU_FAN Intel 848P AGP1 PCI1 PCI2 PCI3 JUSB1 F1_1394 COM2 BIOS_WP J1394_1 F_USB1 BIOS BAT1 Intel... -
Page 11: Chapter 2. Hardware Setup
Chapter 2. Hardware Setup Hardware Setup This chapter provides you with the information about hard- ware setup procedures. While doing the installation, be careful in holding the components and follow the installation procedures. For some components, if you install in the wrong orientation, the compo- nents will not work properly. -
Page 12: Quick Components Guide
MS-7067 M-ATX Mainboard Quick Components Guide JPW1, p.2-9 SYS_FAN, p.2-11 Back Panel I/O, p.2-10 AGP Slot, p.2-19 PCI Slots, p.2-19 CD_IN, p.2-12 F_AUDIO, p.2-16 JAUD1, p.2-16 COM2, p.2-15 2 - 2 CPU_FAN, p.2-11 CPU, p.2-3 DDR DIMMs, p.2-8 BIOS_WP, F_USB1/2 p.2-18... -
Page 13: Central Processing Unit: Cpu
If you do not have the heat sink and cooling fan, contact your dealer to purchase and install them before turning on the computer. For the latest information about CPU, please visit http://www.msi.com.tw/pro- gram/products/mainboard/mbd/pro_mbd_cpu_support.php. Example of CPU Core Speed Derivation Procedure... -
Page 14: Central Processing Unit: Cpu
If you do not have the CPU cooler, contact your dealer to purchase and install them before turning on the computer. For the latest information about CPU, please visit http://www.msi.com.tw/ program/products/mainboard/mbd/pro_mbd_cpu_support.php. MSI Reminds You... -
Page 15: Cpu & Cooler Installation
CPU & Cooler Installation When you are installing the CPU, make sure the CPU has a cooler at- tached on the top to prevent overheating. If you do not have the cooler, contact your dealer to purchase and install them before turning on the computer. Meanwhile, do not forget to apply some silicon heat transfer compound on CPU before installing the heat sink/cooler fan for better heat dispersion. - Page 16 MS-7067 M-ATX Mainboard 5. Lift the load lever up and open the load plate. 7. Visually inspect if the CPU is seated well into the socket. If not, take out the CPU with pure vertical motion and reinstall. 2 - 6 6.
- Page 17 MSI Reminds You... 1. Confirm if your CPU cooler is firmly installed before turning on your system. 2. Check the information in PC Health Status of H/W Monitor in BIOS for the CPU temperature.
-
Page 18: Memory
The mainboard provides 2 slots for 184-pin DDR SDRAM DIMM (Double In-Line Memory Module) modules and supports the memory size up to 2GB. You can install DDR400/333/266 modules on the DDR DIMM slots (DIMM 1~2). For the updated supporting memory modules, please visit http://www.msi.com. tw/program/products/mainboard/mbd/pro_mbd_trp_list.php. DDR Module Combination Install at least one DIMM module on the slot. -
Page 19: Power Supply
The mainboard supports ATX power supply for the power system. Before inserting the power supply connector, always make sure that all components are installed properly to ensure that no damage will be caused. ATX 20-Pin Power Connector: ATX1 This connector allows you to connect to an ATX power supply. To connect to the ATX power supply, make sure the plug of the power supply is inserted in the proper orientation and the pins are aligned. -
Page 20: Back Panel
MS-7067 M-ATX Mainboard Parallel Mouse Keyboard COM1 Mouse/Keyboard Connector Pin5 Mouse/KBD Clock Pin6 NC Pin4 VCC Pin1 Pin2 NC Mouse/KBD DATA Serial Port 1 2 3 4 5 6 7 8 9 USB Ports 2-10 Back Panel USB Ports RJ-45 LAN Jack... -
Page 21: Floppy Disk Drive Connector: Fdd
CPU fan control. Control SENSOR +12V CPU_FAN MSI Reminds You... 1. Always consult vendors for proper CPU cooling fans. 2. Please refer to the recommended CPU fans at Intel 3. CPU_FAN & SYS_FAN support fan control. Connectors SYS_FAN... -
Page 22: Cd-In Connector: Cd_In
MS-7067 M-ATX Mainboard CD-In Connector: CD_IN The connector is for CD-ROM audio connector. Hard Disk Connectors: IDE1 & IDE2 The mainboard has an Enhanced PCI IDE and Ultra DMA 33/66/100 controller that provides PIO mode 0~4, Bus Master, and Ultra DMA 33/66/100 function. You can connect up to four hard disk drives, CD-ROM, 120MB Floppy (reserved for future BIOS) and other devices. -
Page 23: Irda Infrared Module Header: Irda
IrDA Infrared Module Header: IRDA The connector allows you to connect IrDA Infrared module. You must config- ure the setting through BIOS to use the IR function. IRDA Front Panel Connector: JFP1 or F_PANEL (Optional) The mainboard provides front panel connectors for electrical connection to the front panel switches and LEDs. -
Page 24: Serial Ata Raid 0, 1 Connectors: Sata1, Sata2
MS-7067 M-ATX Mainboard Serial ATA RAID 0, 1 Connectors: SATA1, SATA2 The southbridge ICH5 provides a hybrid solution that combines two independent SATA ports for support of up to two Serial ATA (Serial ATA RAID) drives and supports RAID levels 0 and 1 for easy management of the storage subsystems. Both connectors... -
Page 25: Serial Port Header: Com2 (Optional)
USB interface peripherals such as USB HDD, digital cameras, MP3 players, printers, modems and the like. JUSB1/2 JUSB1/2 Pin Definition SIGNAL USB0- USB0+ MSI Reminds You... Note that the pins of VCC and GND must be connected correctly to avoid possible damage. Pin Definition SIGNAL SOUT F_USB1/2... -
Page 26: Independent Power Switch Connector: Frisw (Optional)
MS-7067 M-ATX Mainboard Independent Power Switch Connector: FRISW (Optional) The connector is connected to an independent power switch on the case. Touch the power switch’s touch pad will turn on/off the computer. Front Panel Audio Connector: JAUD1 or F_AUDIO (Optional) The front panel audio connector allows you to connect the front panel audio. -
Page 27: I2C Bus Connector: I2C (Optional)
I2C Bus Connector: I2C (Optional) The mainboard provides one I2C (also known as I to connect to System Management Bus (SMBus) interface. IEEE 1394 Connector: J1394_1 or F1_1394 (Optional) The mainboard provides optional IEEE 1394 pinheaders that allow you to con- nect optional IEEE 1394 ports. -
Page 28: Jumper
MS-7067 M-ATX Mainboard The motherboard provides the following jumpers for you to set the computer’s function. This section will explain how to change your motherboard’s function through the use of jumpers. BIOS Flash Jumper: BIOS_WP (Optional) This jumper is used to lock or unlock the boot block area on BIOS. When unlocked, the BIOS boot block area can be updated. -
Page 29: Agp (Accelerated Graphics Port) Slot
The motherboard provides one AGP slot and three 32-bit PCI bus slots. AGP (Accelerated Graphics Port) Slot The AGP slot allows you to insert the AGP graphics card. AGP is an interface specification designed for the throughput demands of 3D graphics. It introduces a 66MHz, 32-bit channel for the graphics controller to directly access main memory.
