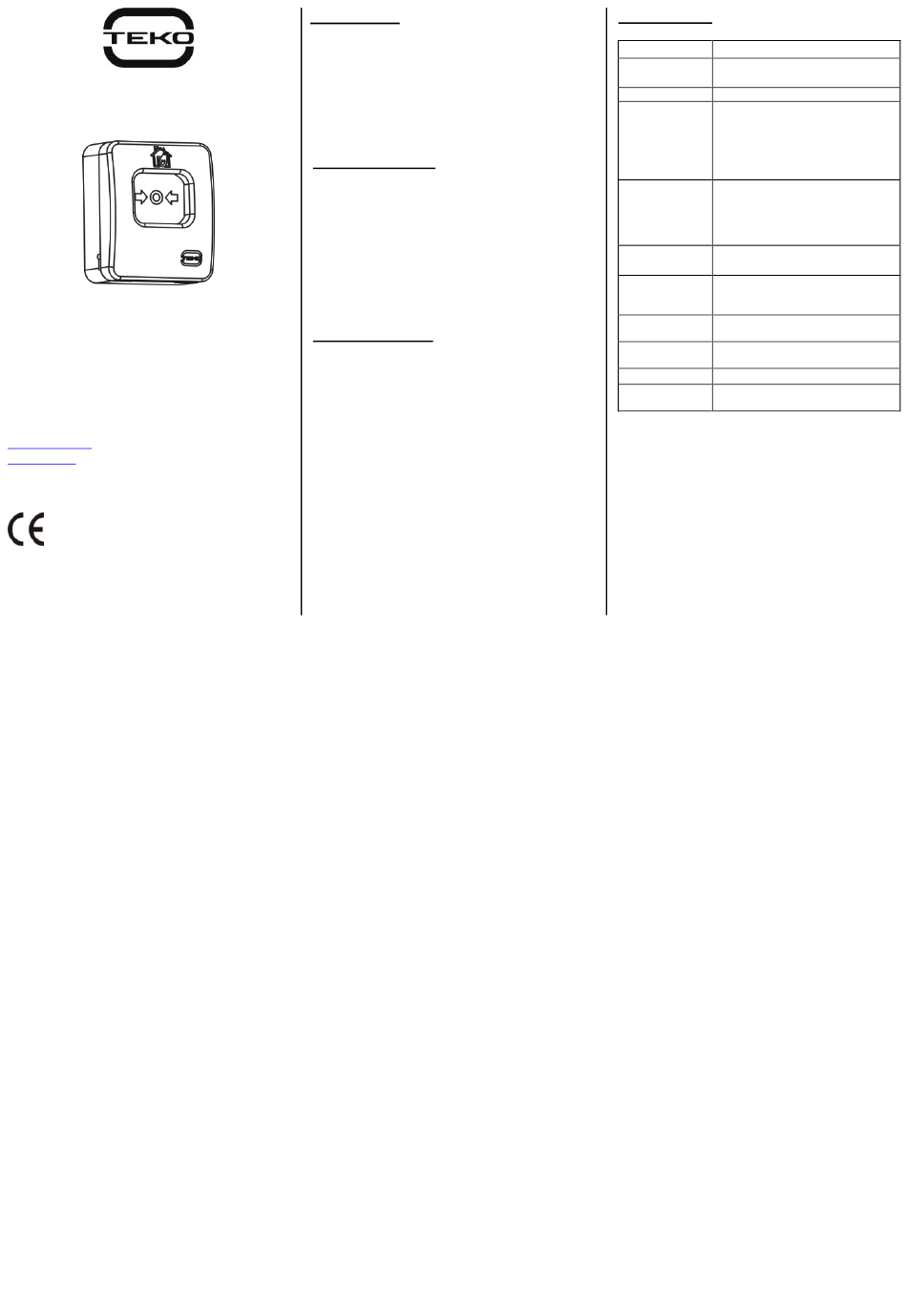

Astra-4511

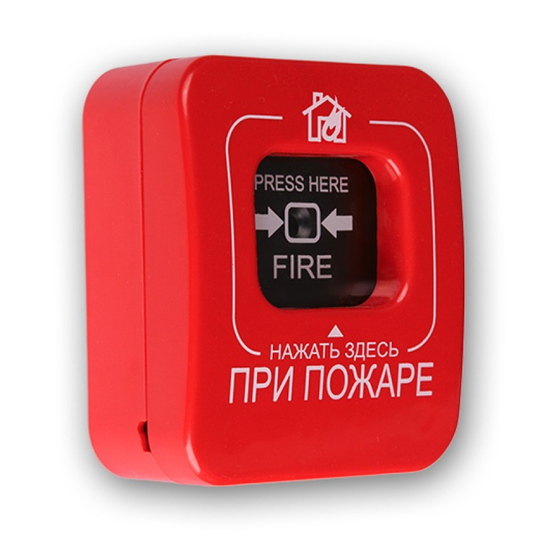

Wireless manual fire call point
User Guide
Manufacturer:
ZAO NTC TEKO
420108 Kazan, Russia
Gafuri 71
+7843 528-03-69
export@teko.biz
www.teko.biz
Made in Russia
Ver. 4511rk2-v3_0_instr_en
1 FUNCTION
The detector is designed to manually turn on
the fire alarm signal by pressing the drive ele-
ment, generate a fire notification and transmit
the notification via radio to the Astra-812 Pro
control panel directly or via the Astra-WE 433
radio extender or to the Security hub.
The detector supports two-way radio exchange.
2 SPECIFICATION
Wieless coverage range,
line-of-sight, m, not less ............................... 300
Operating frequency range, MHz ................. 433
Supply voltage, V ........................ from 2.1 to 3.0
Overall dimensions, mm ............... 110 × 94 × 47
Operation conditions
Temperature range, °С ............from - 10 to + 55
% ........... up to 93 at + 40 °С
,
Relative air humidity
Without moisture condensation
3 DELIVERY SET
Detector delivery set includes:
(dowel – 2 pcs., screw – 2
pcs.,), special key for
opening – 1 pc., key pusher – 1 pc., battery
(CR123A, 3V) - 2 pcs. (installed), user guide –
1 copy.
4 INDICATION
Notification
Boot time
Norm
Fire alarm
Test fire
Power failure
Tampering /
Restore tam-
pering
Searching
connection
No connection 2x white flash in 25 sec.
mounting parts
Reset
Laser tool
command
Notes
1 When the message "Power failure" appears,
the battery must be replaced within two months.
2 Indication of notifications "Power failure", "No
network", "Search for network" goes off 60
minutes after turning on the power supply. The
indication turns on again for 60 minutes after
receiving the "Test" command from the Astra-
942 laser tool.
Indication
1x red flash then 1x white led
flash
1x red flash in 60 sec. period
1x red flash every 2 sec. until
the fire factor is eliminated.
2x flashing in a period of 25
sec. when eliminating the fire
factor
before
receiving
a
command from the controller
1x red flash in every 2 sec.
during 30 sec. when receiv-
ing the test command from
the Astra-942 laser remote
control
3x red flash in 25 sec. period
1x red flash
5x white flash in 1 sec.
period
2x white flash in 1-2 sec.
1x red flash for 2 sec.
