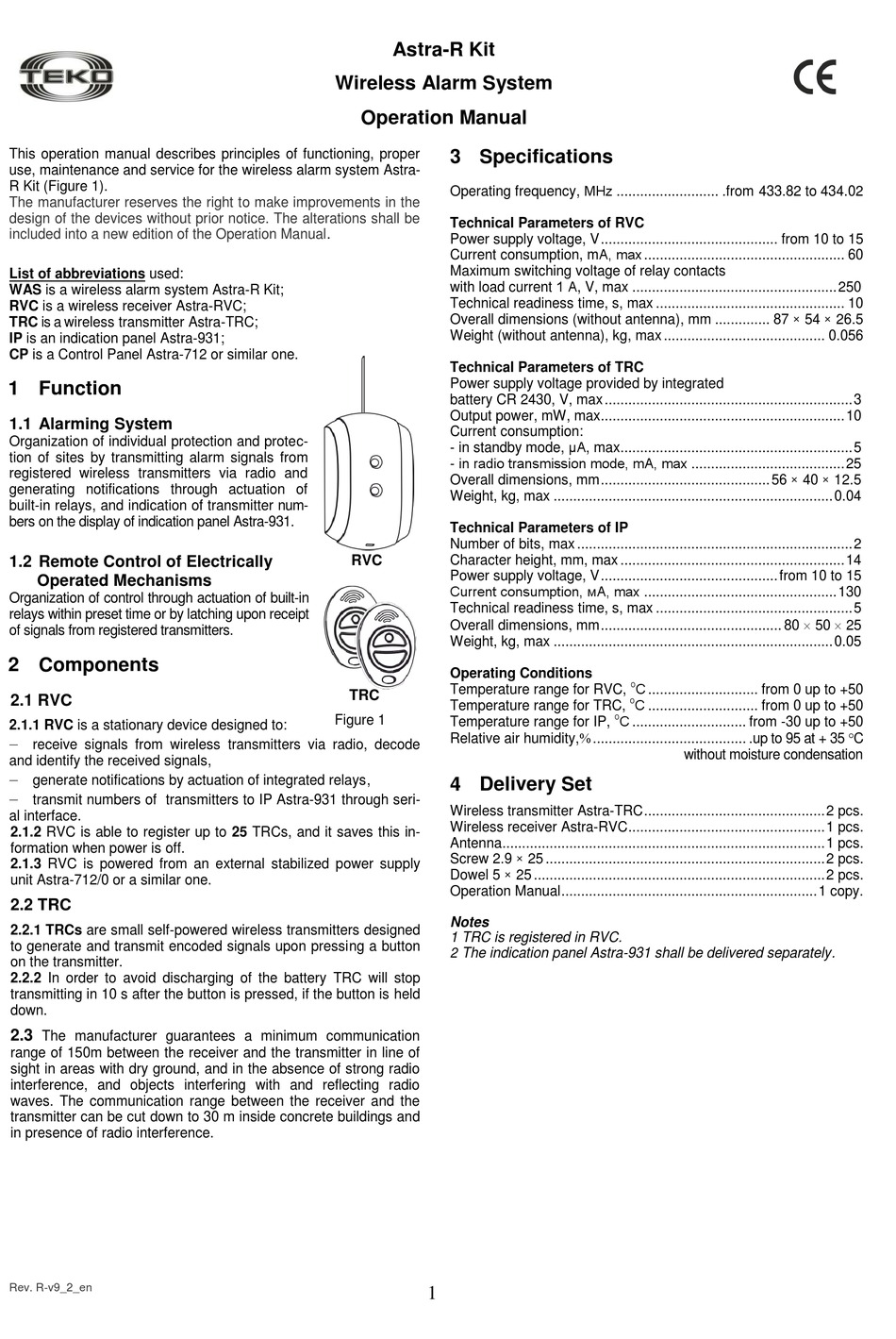

This operation manual describes principles of functioning, proper
use, maintenance and service for the wireless alarm system Astra-
R Kit (Figure 1).
The manufacturer reserves the right to make improvements in the
design of the devices without prior notice. The alterations shall be
included into a new edition of the Operation
List of abbreviations used:
WAS is a wireless alarm system Astra-R Kit;
RVC is a wireless receiver Astra-RVC;
TRC is a wireless transmitter Astra-TRC;
IP is an indication panel Astra-931;
CP is a Control Panel Astra-712 or similar one.

1 Function

1.1 Alarming System

Organization of individual protection and protec-
tion of sites by transmitting alarm signals from
registered wireless transmitters via radio and
generating notifications through actuation of
built-in relays, and indication of transmitter num-
bers on the display of indication panel Astra-931.
1.2 Remote Control of Electrically
Operated Mechanisms
Organization of control through actuation of built-in
relays within preset time or by latching upon receipt
of signals from registered transmitters.

2 Components

2.1 RVC

2.1.1 RVC is a stationary device designed to:
receive signals from wireless transmitters via radio, decode
and identify the received signals,
generate notifications by actuation of integrated relays,
transmit numbers of transmitters to IP Astra-931 through seri-
al interface.
2.1.2 RVC is able to register up to 25 TRCs, and it saves this in-
formation when power is off.
2.1.3 RVC is powered from an external stabilized power supply
unit Astra-712/0 or a similar one.

2.2 TRC

2.2.1 TRCs are small self-powered wireless transmitters designed
to generate and transmit encoded signals upon pressing a button
on the transmitter.
2.2.2 In order to avoid discharging of the battery TRC will stop
transmitting in 10 s after the button is pressed, if the button is held
down.
2.3
The manufacturer guarantees a minimum communication
range of 150m between the receiver and the transmitter in line of
sight in areas with dry ground, and in the absence of strong radio
interference, and objects interfering with and reflecting radio
waves. The communication range between the receiver and the
transmitter can be cut down to 30 m inside concrete buildings and
in presence of radio interference.
Rev. R-v9_2_en
Astra-R Kit
Wireless Alarm System
Operation Manual
Manual.
RVC
TRC
Figure 1
1

3 Specifications

Operating frequency, МHz .......................... .from 433.82 to 434.02
Technical Parameters of RVC
Power supply voltage, V ............................................. from 10 to 15
Current consumption, mА, max ................................................... 60
Maximum switching voltage of relay contacts
with load current 1 А, V, max .................................................... 250
Technical readiness time, s, max ................................................ 10
Overall dimensions (without antenna), mm .............. 87 × 54 × 26.5
Weight (without antenna), kg, max ......................................... 0.056
Technical Parameters of TRC
Power supply voltage provided by integrated
battery CR 2430, V, max ............................................................... 3
Output power, mW, max .............................................................. 10
Current consumption:
- in standby mode, µA, max ........................................................... 5
- in radio transmission mode, mА, max ....................................... 25
Overall dimensions, mm ........................................... 56 × 40 × 12.5
Weight, kg, max ....................................................................... 0.04
Technical Parameters of IP
Number of bits, max ...................................................................... 2
Character height, mm, max ......................................................... 14
Power supply voltage, V ............................................. from 10 to 15
Current consumption, мА, max ................................................. 130
Technical readiness time, s, max .................................................. 5
Overall dimensions, mm .............................................. 80  50  25
Weight, kg, max ....................................................................... 0.05
Operating Conditions
Temperature range for RVC,
Temperature range for TRC,
о
Temperature range for IP,
Relative air humidity, ....................................... .up to 95 at + 35 C

4 Delivery Set

Wireless transmitter Astra-TRC .............................................. 2 pcs.
Wireless receiver Astra-RVC .................................................. 1 pcs.
Antenna .................................................................................. 1 pcs.
Screw 2.9 × 25 ....................................................................... 2 pcs.
Dowel 5 × 25 .......................................................................... 2 pcs.
Operation Manual ................................................................. 1 copy.
Notes
1 TRC is registered in RVC.
The indication panel Astra-931 shall be delivered separately.
2
о
С ............................ from 0 up to +50
о
С ............................ from 0 up to +50
С ............................. from -30 up to +50
without moisture condensation
