teko Astra-322 User Instructions

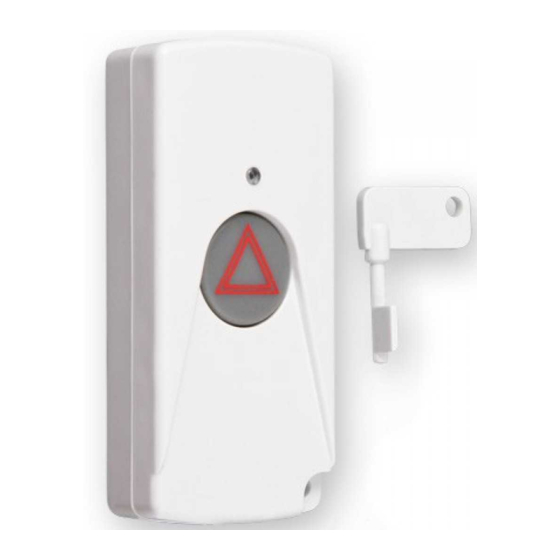

Astra-322
Electro-Contact Panic Button
User Instructions
Sales, Warranty Service and Technical Sup-
port:
TEKO-TD
Prospekt Pobedy str. 19
420138 Kazan, Russia
+7(843) 528-03-69
support@teko.biz www.teko.biz www.teko.biz/en
Made in Russia
Rev. 322-v1_0_instr_EN
1 FUNCTION
The detector is untended for manually switching
on the alarm signal by pressing the button and
transferring the alarm signal to control panel or
notification transmission system.
2 SPECIFICATION
Power supply voltage, V:
- first range.................... ...............from 9 to 16
- second range .............................. from 16 to 27
Current consumption, mA, max:
- in standby mode ....................................... 0,15
- in "Alarm" mode ..........................................20
Overall dimensions, mm ..................... 86×40×19
Operating Conditions
Temperature range, °С ............from - 10 to + 50
Relative air humidity, % ........ up to 95 at + 25 °С
Without moisture condensation
3 DELIVERY SET
Delivery set includes: unlock key – 2 pcs., dow-
el – 2 pcs., screw – 2 pcs.
4 OPERATING MODE
Plug
Operating mode
name
First
voltage range
F1
Second
voltage range
The detector generates an alarm signal once
the detector button is pressed.
An "Alarm" state is fixed by electronic circuit of
the detector on the basis of electronic lock.
Return the detector to standby status is
achieved by turning the key or turning off the
detector for at least 2
5 SELECTING INSTALLATION PLACE
The detector shall be mounted in a concealed,
discreet location for prompt and inconspicuous
use.

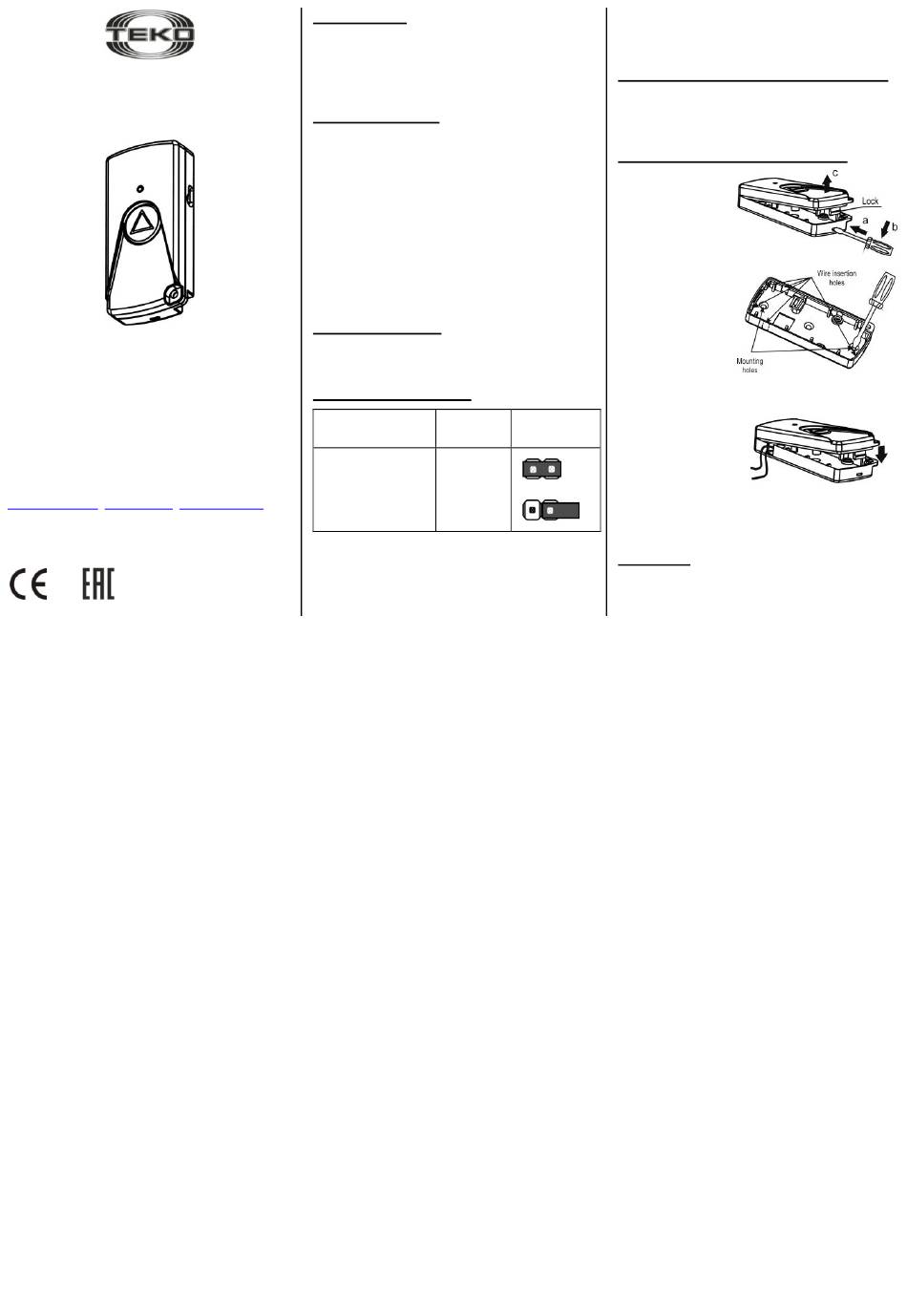

6 INSTALLATION PROCEDURE
1) Remove cover
with PCB fixed
inside it
2) Press
blanks from
mounting and wire
insertion holes on
the base
3) Perform wiring
(see sec.7)
4) Replace cover
Jumper
position
5) Perform detector operability test (see sec.8)
7 WIRING
Perform wiring
accordance with control panel operating manual.
seconds.
out
to detector`s terminals in
