Astra-4511

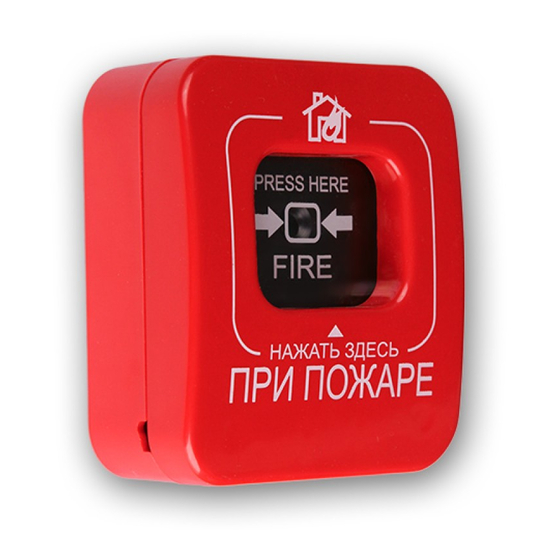

Wireless manual fire call point
User Guide
Manufacturer:
TEKO-TD LLC
Prospekt Pobedy str. 19
420138 Kazan, Russia
+7(843) 528-03-69
export@teko.biz
www.security-hub.ru/en/
Made in Russia
Ver. 4511rk2-v2_2_instr_en
1 FUNCTION
The detector is intended to manually turn on
the fire alarm by pressing the drive element,
forming a notification of a fire and transfer the
notification to the Security Hub controller via
radio.
2 SPECIFICATION
Wieless coverage range,
line-of-sight, m, not less ............................... 100
Operating frequency range, MHz ................. 433
Supply voltage, V ........................ from 2,1 to 3,0
Overall dimensions, mm ............... 110 × 94 × 47
Operation conditions
Temperature range, °С ............from - 10 to + 55
% ........... up to 93 at + 40 °С
,
Relative air humidity
Without moisture condensation
3 DELIVERY SET
Detector delivery set includes:
(dowel – 2 pcs., screw – 2
pcs.,), special key for
open – 1 pc., key pusher – 1 pc., battery
(CR123A, 3V) - 2 pcs., user guide – 1 copy.
4 INDICATION
NOTICE
Boot time
Norm
Fire alarm
Test
Failure
Power failure
Tampering /
Restore tam-
mounting parts
pering
Search con-
nection
No connection 2x white flash in 25 sec.
Reset
NOTE
1 When the message "Power failure" appears,
the battery must be replaced within two months.
2 Indication of notifications "Power failure", "No
network", "Search for network" goes off 60
minutes after turning on the power supply. The
indication turns on again for 60 minutes after
receiving the "Test" command from the Astra-
942 laser tester.
INDICATION
1x red flash then 1x white led
flash
1x red flash in 60 sec. period
1x red flash every 2 sec. until the
fire factor is eliminated.
2x flashing in a period of 25 sec.
when eliminating the fire factor
before receiving a command
from the controller
1x red flash in every 2 sec.
during 30 sec. when receiv-
ing the test command from
the Astra-942 laser remote
control
3x red flash in 25 sec. period
3x red flash in 25 sec. period
1x red flash
5x white flash in 1 sec.
period
2x white flash in 1-2 sec.
