teko Astra-10 Ver.2 User Instruction

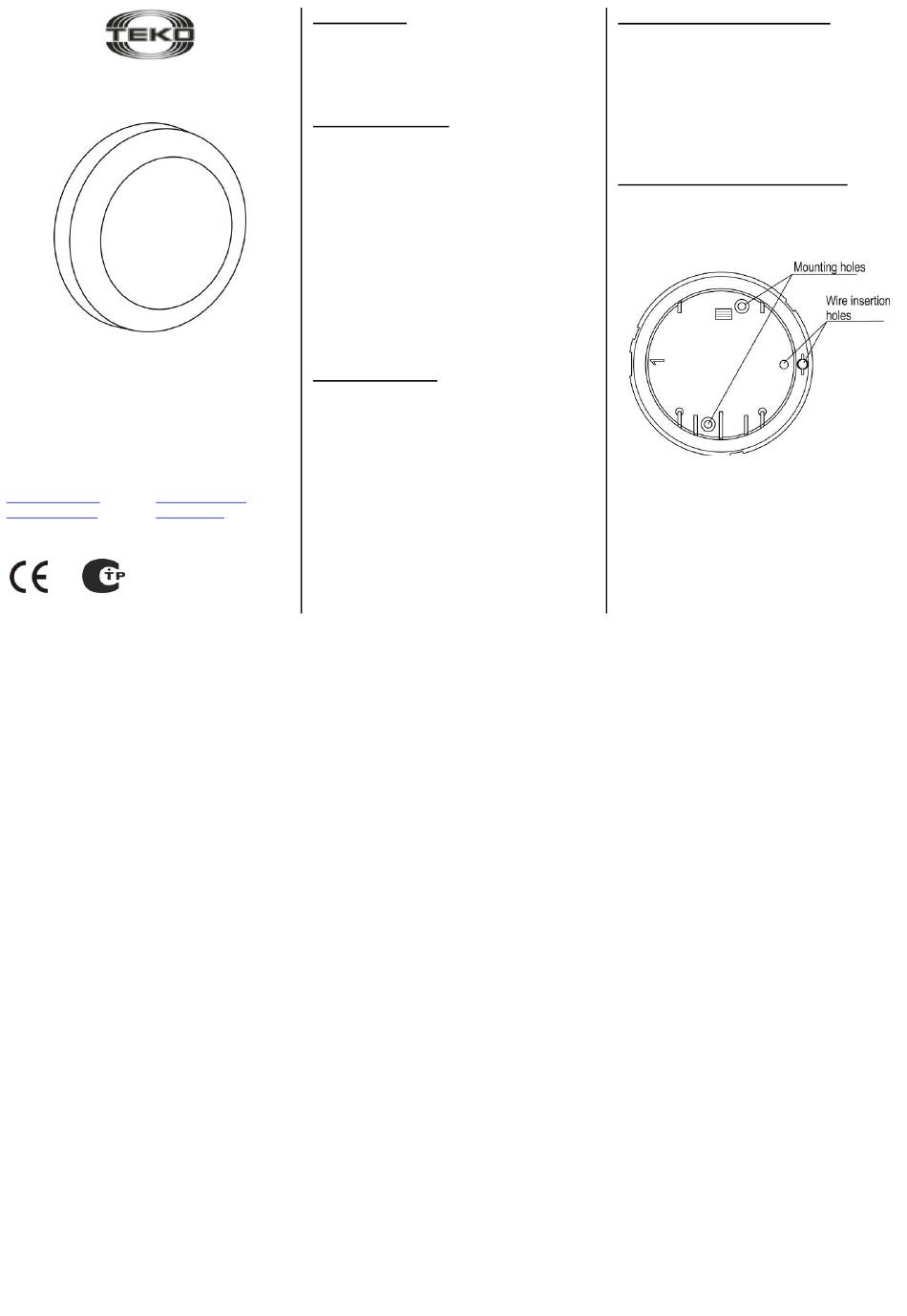

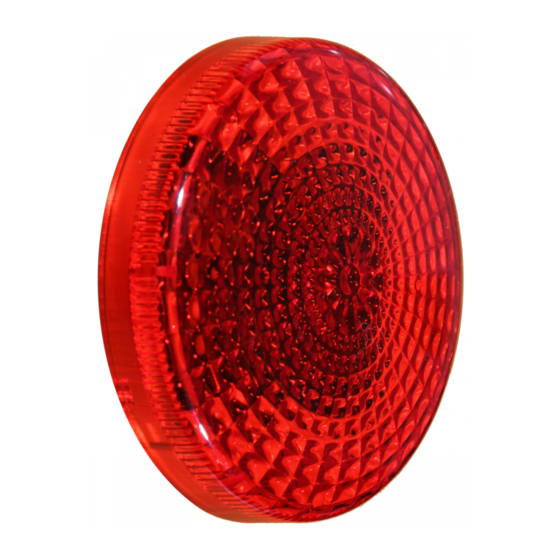

Astra-10 Ver.2
Light Alerter
User Instruction*
Sales: Warranty service and
Controlex GmbH technical support:
TEKO-TD
Philosophenweg 31-33 Prospekt Pobedy str. 19
47051 Duisburg,Germany 420138 Kazan, Russia
+49 (0) 203/393 91 188 +7(843) 261-55-75
info@controlex.eu support@teko.biz
www.controlex.eu www.teko.biz
Made in Russia
Rev. 10-2v1_0_instr_EN

1 FUNCTION

The alerter is intended for light alerting about
current status of an object equipped with a
control panel of a fire/intrusion detection and
alarming system.

2 SPECIFICATIONS

Contrast perception of light signal
against ambient light background, Lx, min ... 500
Light signal viewing angle,° ......................... 180
Power supply voltage, V ................ from 10 to 15
Current consumption, mA, max ......................60
Overall dimensions, mm, max:
- diameter ......................................................90
- height ...........................................................26
Weight, kg, max .......................................... 0,06
Operating Conditions
Temperature range, °С ............from - 30 to + 55
Relative air humidity, % .......... up to 93 at + 40 °С
Without moisture condensation

3 DELIVERY SET

Delivery set contains holders and fasteners
(dowel – 2 pcs., screw – 2 pcs).

4 INSTALLATION LOCATION

1) Install alerter on bearing walls and carriers.
2) Inside permanent structures the preferable
places of installation are those well viewed from
outside.
3) Installation place should avoid exposure
to sunlight.
4) Connection wires should be located far
from power cables.

5 INSTALLATION PROCEDURE

1) Remove the cover
counterclockwise with respect to the
2) Remove PCB.
3) Fix alerter base on the wall.
4) Replace PCB and perform wiring (see par.6).
5) Replace alerter`s cover.
by turning it
base.
