teko Astra-321 User Manual

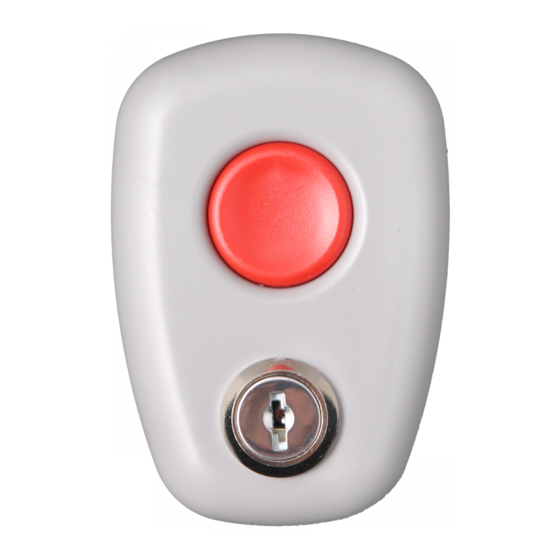

Astra-321
Electro-Contact Panic Button
User Guide
Manufacturer:
TEKO-TD
Prospekt Pobedy str. 19
420138 Kazan, Russia
+7(843) 528-03-69
support@teko.biz www.teko.biz www.teko.biz/en
Made in Russia
Rev. 321-v1_2_instr_EN

1 FUNCTION

The detector is untended for manually switching
on the alarm signal by pressing the button and
transferring the alarm signal via 2-wire

2 SPECIFICATION

Switching voltage, V, max ..............................72
Switching current, A, max .............................0.2
Overall dimensions, mm ..................... 87×60×30
Operating Conditions
Temperature range, °С ........ from - 30 up to +50
Relative air humidity, % ............ up to 95 at +25 °С
Without moisture condensation

3 DELIVERY SET

Delivery set includes: unlock key – 2 pcs., user
guide – 1 pcs.

4 OPERATION

The detector generates an alarm signal once
the detector button is pressed.
The button is mechanically locked in the
"Alarm" status by a spring.
A key is used to reset the detector to the
standby status.

5 INSTALLATION PLACE

The detector shall be mounted in a concealed,
discreet location for prompt and inconspicuous
use.

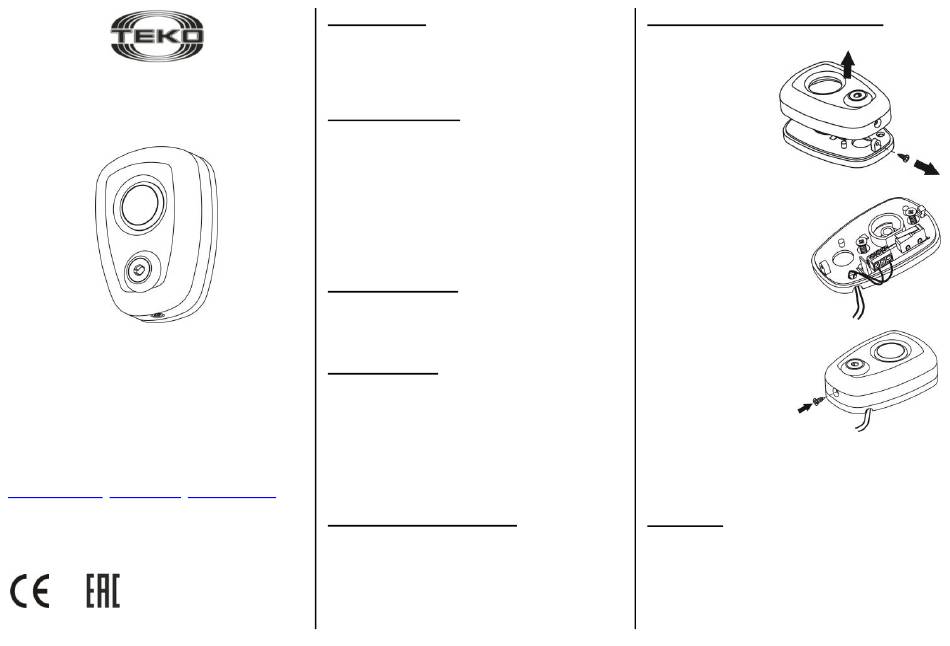

6 INSTALLATION PROCEDURE

1) Remove the
cover
line.
2) Perform wiring
(see sec.7)
3) Install the cover
4) Perform detector
Operability Test
(see sec.8)

7 WIRING

Perform wiring
accordance with control panel operating manual.
to detector`s terminals in
