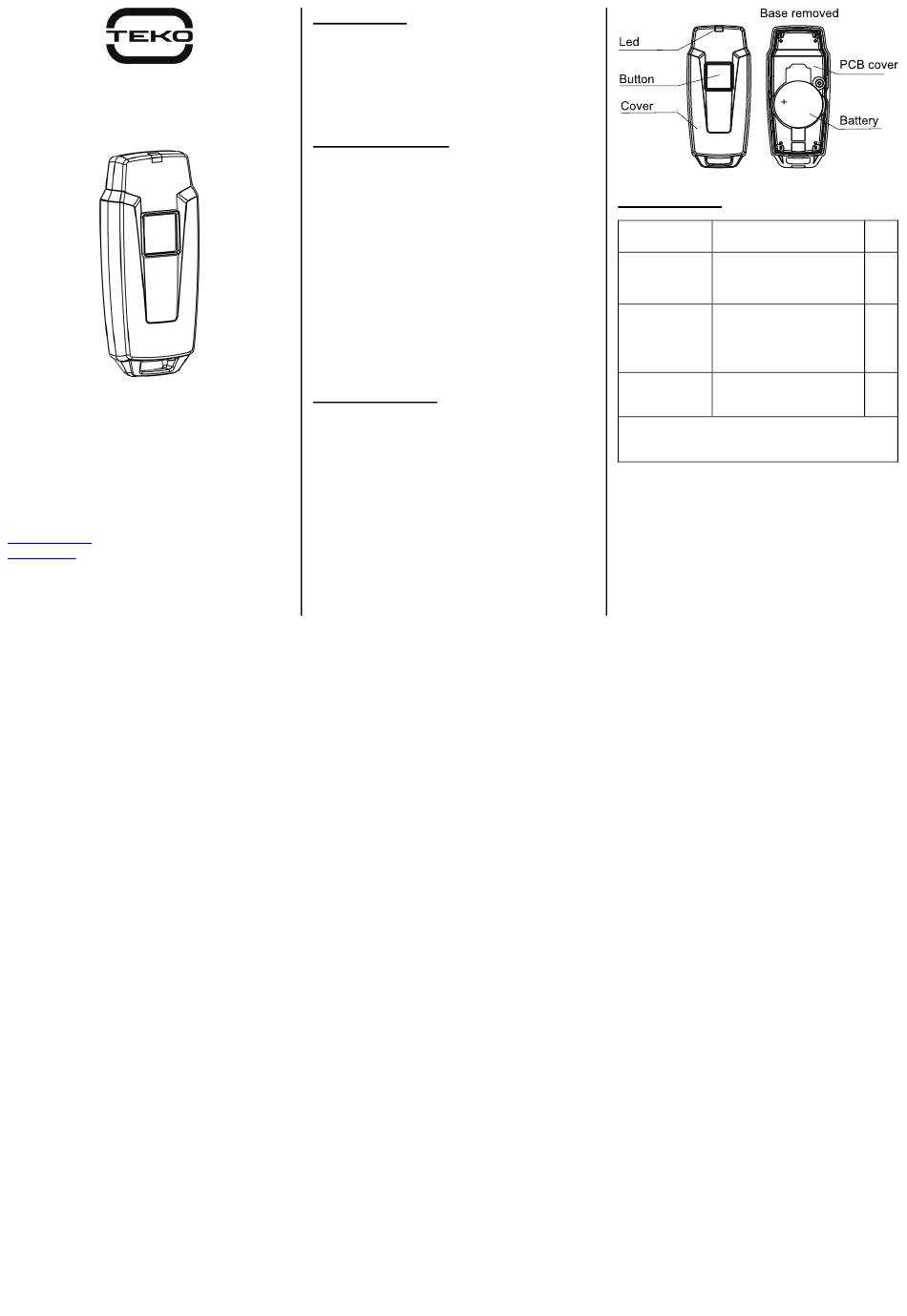

teko Astra-R TRC User Manual

Astra-R TRC
Key fob
User guide
Manufacturer:
ZAO NTC TEKO
420108 Kazan, Russia
Gafuri 71
+7843 528-03-69
export@teko.biz
www.teko.biz
Made in Russia
rev. RPD-Rv4_0_instr_en
1 FUNCTION
A small-sized portable device is designed to
generate and transmit encoded signals over a
radio channel to a radio receiver Astra-RVC
(RVC), which is part of the wireless panic but-
ton system Astra-R.
2 SPECIFICATIONS
Operation freq., MHz ............................... 434.62
Wireless coverage range, m, not less........... 300
Supply voltage, V ........................ from 2.2 to 3.0
Current consumption, mA, not more:
- stand-by mode ......................................... 0005
- transmitting mode ........................................45
Average battery lifetime (pressing 2 times/day),
years ............................................................... 2
Overall dimensions, mm ................. 74 × 33 × 14
Operation conditions
Temperature range, °С ................ from 0 to + 50
Relative air humidity, % ............ up to 95 at + 35 °С
without moisture condensation
3 DELIVERY SET
Delivery set includes: СR2430 battery (in-
stalled) – 1 pc., user guide – 1 copy.
4 INDICATION
Indication Led
Command Lights up for 1 sec
sent to the when the button is
RVC pressed
3x flash when the
Power button is pressed and
failure the power supply
voltage is below 2.3 V
2x flash after installing
Radio mode
the battery (Mode 2)
+ - notice issued,
- - notice not issued
Notes
1 The notification "Power failure" is transmitted
to the RVC together with the notification "Com-
mand sent to the RVC".
2 When a "Power failure" notice appears, the
battery must be replaced within one week.
RVC
+
+
-
