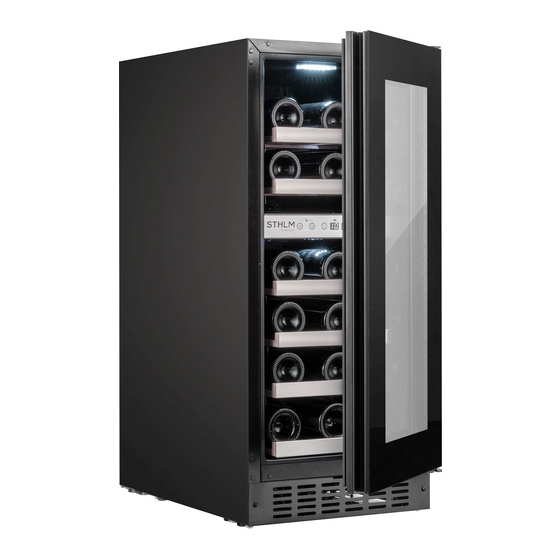

Temptech STHLM STQ38DRB User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Wine Coolers
USER MANUAL
This manual contains important information including safety and
installation instructions of the appliances. Please read it carefully before
use and follow all safety information & instructions. It is recommended
to keep this manual for easy reference so that you can be familiar with the
operation of the appliance.
V2/2022

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STHLM STQ38DRB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Temptech STHLM STQ38DRB

Summary of Contents for Temptech STHLM STQ38DRB

  • Page 1 Wine Coolers USER MANUAL This manual contains important information including safety and installation instructions of the appliances. Please read it carefully before use and follow all safety information & instructions. It is recommended to keep this manual for easy reference so that you can be familiar with the operation of the appliance.

  • Page 2: Table Of Contents

    --CONTENTS-- 01 ENERGY SAVING AND ECOLOGICAL PROTECTION 03 IMPORTANT SAFETY INFORMATION 05 SCRAPPING OLD APPLIANCES Conformity Energy Saving Service 07 DESCRIPTION OF APPLIANCE AND INSTALLATION STX30DRB STX30DS STQ38DRB STQ38DS STX60DRB STX60DS ST2DX60DRB ST2DX60DS ST120DRB ST120DS ST180DRB ST180DS STZ60SB / STZ60SX 14 ACCESSORY INSTALLATION BEFORE OPERATING UNPACKING AND CLEANING THE WINE COOLER Adjusting the height and levelling off your wine cabinet...
  • Page 3 Carbon Filter Change (Option) Defrosting Moving Your Wine Cooler Power Failure 28 Vacation Time Disconnecting From Power 29 TROUBLESHOOTING 30 REVERSE THE DOOR SWING UNDERCOUNTER WINE COOLER STZ60SB AND STZ60SX ST120DRB/ ST120DS/ ST180DRB/ ST180DS 42 INSTALL REMOVABLE FRONT GRILLE 44 DOWNLOAD OTHER LANGUAGE USER MANAL...

  • Page 4: Energy Saving And Ecological Protection

    INSTRUCTION MANUAL Please removed all packaging, stickers and films from the products surface and clean the product’ s surfaces with a damp cloth and mild deturgent before using for the first time. • Let the appliance stand upright for approximately hours before connecting it to the power source, which helps to reduce the possibility of a cooling-system malfunction from handling during transportation.
  • Page 5 - Tropical: ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C’; (o) How to find the model information in the product database: Please visit our website https://temptech.no/ to find the instruction about how to find production information in EU database. .02.

  • Page 6: Important Safety Information

    INSTRUCTION MANUAL IMPORTANT SAFETY INFORMATION This appliance uses flammable refrigerants and flammable insulation blowing gases. Before using the appliance, please properly position and install it as described in this manual. To avoid the risk of fire, electrical shock, or injury when using the appliance, follow these basic precautions: ●...
  • Page 7 INSTRUCTION MANUAL equal other heat producing products due to heat exposure. If placed nearby a heat producing product, then place the wine cabinet under this unit. ● Never clean the appliance parts with flammable fluids which may create a hazard or explosion. And do not store or use gasoline or other flammable sprays and liquids in the vicinity of the appliance.

  • Page 8: Scrapping Old Appliances

    INSTRUCTION MANUAL applications such as: 1.staff kitchen areas in shops, offices and other working environments; 2. farmhouses and by clients in hotels, motels and other residential type environments; 3.bed and breakfast type environments; 4.catering and similar non-retail applications – WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

  • Page 9: Conformity

    INSTRUCTION MANUAL become an environmental issue; it is essential to follow some basic rules: --WEEE should not be treated as household waste; --WEEE should be handed over to the relevant collection points managed by the municipality or by registered companies. In many countries, for large WEEE, home collection could be present.

  • Page 10: Description Of Appliance And Installation

    INSTRUCTION MANUAL DESCRIPTION OF APPLIANCE AND INSTALLATION The following pictures only show description of appliance. The dimension and shelf quantity may differ among the models of the same series. „ STX30DRB • Height Adjustable: 813-845mm „ STX30DS • Height Adjustable: 813-845mm .07.

  • Page 11: Stq38Drb

    INSTRUCTION MANUAL „ STQ38DRB • Height Adjustable: 853-873mm „ STQ38DS • Height Adjustable: 853-873mm .08.

  • Page 12: Stx60Drb

    INSTRUCTION MANUAL „ STX60DRB • Height Adjustable: 815-845mm „ STX60DS • Height Adjustable: 815-845mm .09.

  • Page 13: St2Dx60Drb

    INSTRUCTION MANUAL „ ST2DX60DRB • Height Adjustable: 815-845mm „ ST2DX60DS • Height Adjustable: 815-845mm .10.

  • Page 14: St120Drb

    INSTRUCTION MANUAL „ ST120DRB „ ST120DS ≥1215mm ≥595mm (47¾''） (23 ") ≥635mm 1215mm (25") （47¾''） .11.

  • Page 15: St180Drb

    INSTRUCTION MANUAL „ ST180DRB ≥1770mm （69¾） 1770mm (69¾) ≥635mm (25") „ ST180DS ≥1770mm （69¾） 1770mm (69¾) ≥635mm (25") .12.

  • Page 16: Stz60Sb / Stz60Sx

    INSTRUCTION MANUAL „ STZ60SB / STZ60SX 200cm² Min. (Hot Air Outlet) 200cm² Min. (Cool Air Inlet) To fix the appliance with Cabinet, pls. screw the 3 screws (ST4.2*12mm) through the Top Bracket. The Top Bracket is pre-installed on top of appliance. .13.

  • Page 17: Accessory Installation Before Operating

    INSTRUCTION MANUAL ACCESSORY INSTALLATION BEFORE OPERATING „ UNPACKING AND CLEANING THE WINE COOLER • Remove the exterior and interior packing materials. • 24 hours Let the appliance stand upright for approximately before connecting it to the power source, which helps to reduce the possibility of a cooling-system malfunction from handling during transportation.

  • Page 18: Installing The Handle

    INSTRUCTION MANUAL „ Installing The Handle Gasket Handle Washer Handle Screws Remove the door Gasket slightly to expose the two screw holes. ● Fix the Handle by screwing the two Handle Screws tightly, the Handle Screws ● with Washers are pre-installed inside the screw holes, pls.do not unscrew the Handle Screws too much in case the Washers fell off.

  • Page 19: Wine Storage

    INSTRUCTION MANUAL • If the ambient temperature is above or below the designed climate range, the performance of the unit may be affected. For example, the appliance operating in extreme cold or hot conditions may cause interior temperatures to fluctuate, and the temperature set 5-20°C may not be reached sometimes.
  • Page 20 INSTRUCTION MANUAL „ CONTROL PANEL • For Dual Zone Includes STX30DRB, STX30DS, STQ38DRB, STQ38DS, STX60DRB, STX60DS, ST120DRB, ST120DS, ST180DRB and ST180DS Upper Zone A. Power B. Lighting D. Temp. Plus E. Temp.Minus Display Window Lock/ Function Function G. ºC/ºF Lower Zone K.
  • Page 21 INSTRUCTION MANUAL For Single Zone STZ60SB and STZ60SX Power Temp.Plus Light Temp.Minus Lock F Switch Temp. Display Mode Display Window Marks on Dispaly Window Warning Digital Compressor Screen on Lock .18.

  • Page 22: Control Panel

    INSTRUCTION MANUAL „ POWER ON/OFF CONTROL For models STX30DRB, STX30DS, STQ38DRB, STQ38DS, STX60DRB, STX60DS, ST120DRB, ST120DS, ST180DRB and ST180DS • When the appliance is plugged in to a power outlet, it powers on automatically. • Touch the power mark and hold for 10 seconds to turn off (or turn on) the appliance.

  • Page 23: Unlocking The Control Panel

    INSTRUCTION MANUAL „ UNLOCKING THE CONTROL PANEL For models STX30DRB, STX30DS, STQ38DRB, STQ38DS, STX60DRB, STX60DS, ST120DRB, ST120DS, ST180DRB and ST180DS • To unlock the control panel, touch the power mark and lighting mark with 2 fingers at the same time and hold for 3 seconds . When unlocked a buzz sound will be heard.

  • Page 24: Interior Lighting On/Off Control

    INSTRUCTION MANUAL „ INTERIOR LIGHTING ON/OFF CONTROL For Dual Zone Includes STX30DRB, STX30DS, STQ38DRB, STQ38DS, ST2DX60DRB, ST2DX60DS, STX60DRB, STX60DS, ST120DRB, ST120DS, ST180DRB and ST180DS • Under the unlocked condition, touch the lighting mark to turn on (or turn off ) the interior cool LED lighting.

  • Page 25: Temperature Setting

    INSTRUCTION MANUAL „ TEMPERATURE SETTING For models STX30DRB, STX30DS, STQ38DRB, STQ38DS, STX60DRB, STX60DS, ST120DRB, ST120DS, ST180DRB and ST180DS • The default temperature setting ranges are 5-12 ºC (41-54 ºF ) for the upper zone and 12-20 ºC (54-68 ºF ) for the bottom zone. •...

  • Page 26: Function Indicating Light For Dual Zone Models

    INSTRUCTION MANUAL For models ST2DX60DRB and ST2DX60DS When the control panel is locked, touch the marks with 2 fingers at the same time and hold for 5 seconds, you can interchange the Fahrenheit and Celsius display. For models STZ60SB and STZ60SX ºC ºF o To switch...

  • Page 27: Lighting On/Off Buttons Backlit And Display Window

    INSTRUCTION MANUAL „ LIGHTING ON/OFF BUTTONS BACKLIT AND DISPLAY WINDOW o All buttons backlit will light on when plugged; o All buttons backlit except the Power button will light off automatically if no more touching on the Control Panel within 15 seconds from the final operation; o If the Display Window is set to Power Saving Mode, the window will be light off automatically if no more touching on the Control Panel within 60 seconds from the final operation;...

  • Page 28: Error Code For Stz60Sb And Stz60Sx

    INSTRUCTION MANUAL „ ERROR CODE FOR STZ60SB AND STZ60SX o If the Error Code shown on Display Window, it indicates the "Open Circuit" of Temp. Sensor happened, the buzzer alarm will sound loudly, the Warning mark will light on, in such case, pls.call your local after-sale service immediately to replace the Temp.Sensor;...

  • Page 29: Care And Maintenance

    INSTRUCTION MANUAL CARE AND MAINTENANCE „ CLEANING THE WINE COOLER • Clean regularly surfaces of the wine coolerto avoid contamination of wines. • Turn off the power, unplug the appliance, and remove all items including shelves. • Wipe the inside surfaces with a sponge and baking soda solution. The solution should be about 2 tablespoons of baking soda to 1 quart (approx.

  • Page 30: Carbon Filter Change (Option)

    INSTRUCTION MANUAL Stopper Locating Pin „ Carbon Filter Change (Option) A good ambient air quality is important for wine maturing. The Carbon Filter is very helpful to absorb odor and improve air quality.For the models with Carbon Filter, we suggest to replace it once a year.Pls.contact your dealer to get the filter.

  • Page 31: Power Failure

    INSTRUCTION MANUAL o Remove all items from the Wine Cooler. o Securely tape down all loose items such as the shelves inside of the appliance. o Turn the adjustable foot up to the base to avoid damage. o Tape the door closed. o Ensure the appliance stays secure in the upright position during transportation.

  • Page 32: Troubleshooting

    INSTRUCTION MANUAL TROUBLESHOOTING If you feel the appliance is not working properly, follow these instructions to try to see if you can solve the problem simply by yourself before calling for service. PROBLEM PROBLEM POSSIBLE CAUSE / MEASURE Not plugged in. The wine cooler does not operate The appliance is turned off.

  • Page 33: Reverse The Door Swing

    INSTRUCTION MANUAL REVERSE THE DOOR SWING Remarks: The following operations are available for a model with control in cabinet only and ● with Right Door Hinge installed. All removed parts must be saved in order to do the door reinstallation. ●...
  • Page 34 INSTRUCTION MANUAL Unscrew the Upper Right Hinge and Bottom Right Hinge from the cabinet. Keep them well for door re-installation. Upper Right Hinge Bottom Right Hinge Pull out the 6 Plastic Caps at the front left corner of the cabinet. And move them all to the right side.
  • Page 35 INSTRUCTION MANUAL Move the Hinge Hole Cap (at the top of the door) from the left side to the right side. Hinge Hole Cap Remove the Handle Hole Cap (2pcs) on the right side of Door by prying it out gently with small flat screwdriver.
  • Page 36 INSTRUCTION MANUAL Gently pull the door gasket to one side to reveal the Handle Screws (2pcs) on the left side of the Door.Unscrew it with a cross screwdriver and Remove the Handle (Leave the Washers as where it is). Handle Screw Washer Handle Install the Handle to the right side of the door by screwing tightly the Handle Screws (2PCS).
  • Page 37 INSTRUCTION MANUAL .Push the Handle Hole Cap (2pcs) into the Handle Holes on the left side of the Door. Handle Hole Cap .Insert the Pivot Hinge into the bottom hinge hole of the door. Pivot Hinge .34.

  • Page 38: Stz60Sb And Stz60Sx

    INSTRUCTION MANUAL .Install the door to the left hinge side by tightening the Pivot Hinge with the 2 screws. Bottom Left Hinge Pivot Hinge Screws (2pcs) „ STZ60SB AND STZ60SX Notes: Any parts and screws that you remove from the appliance whilst reversing the door, should be retained for later use.
  • Page 39 INSTRUCTION MANUAL o Unscrew the 2 Phillips Flat Screws ( M4*8) from the right lower Door Hinge; o Hold the Door by two persons if necessary, remove the Door ; o Rotate the door by 180 degrees ; .36.
  • Page 40 INSTRUCTION MANUAL o Make sure the hole position of the left door hinge is aligned with the hole position on the cabinet; o Install the Upper Door Shaft (Left/Right) on the upper left door corner by screwing the 2 Phillips Flat Screws ( M4*8); o Install the Upper Door Shaft (Left/Right) on the upper left door corner by screwing the 2 Phillips Flat Screws ( M4*8) .37.

  • Page 41: St120Drb/ St120Ds/ St180Drb/ St180Ds

    INSTRUCTION MANUAL o Install the Top Bracket by screwing the 3 screws. „ ST120DRB/ ST120DS/ ST180DRB/ ST180DS IMPORTANT INFORMATION We recommend that you secure the racks in place using adhesive tape to prevent causing damage when handling the appliance and store all removed parts carefully. Remove the Hole Cover and Upper Hinge Cover on top side using a flat-head screwdriver.
  • Page 42 INSTRUCTION MANUAL Hinge Hole Cap Pivot Hinge Remove the Bottom Hinge Cover by prying it off gently with small flat screwdriver. Remove the Bottom Hinge by unscrewing the Hex Head Screw (4pcs). Unscrew the Pan Head Screw (4pcs) from bottom left side. Now move the Bottom Hinge to the bottom left side and screw it tightly with the Hex Head Screws (4pcs).
  • Page 43 INSTRUCTION MANUAL Hex Head Screw(4pcs) Upper Hinge Cover Upper Hinge Bushing Upper Hinge Hole Cover Door Hinge Washer Bottom Hinge Bottom Hinge Cover Remove the Handle Hole Cap (2pcs) on the right side of Door by prying it out gently with small flat screwdriver.
  • Page 44 INSTRUCTION MANUAL Gently pull the door gasket to one side to reveal the Handle Screws (2pcs) on the left side of the Door.Unscrew it with a cross screwdriver and Remove the Handle (Leave the Washers as where it is). Handle Screw Washer Handle nstall the Handle to the right side of the door by screwing tightly the Handle Screws (2PCS).

  • Page 45: Install Removable Front Grille

    INSTRUCTION MANUAL Push the Handle Hole Cap (2pcs) into the Handle Holes on the left side of the Door. Handle Hole Cap INSTALL REMOVABLE FRONT GRILLE INSTRUCTION MANUAL ACCESSORY INSTALLATION BEFORE OPERATING Includes models STX30DRB, STX30DS, ST2DX60DRB, ST2DX60DS, STX60DRB and STX60DS Install Removable Front Grille The Front Grille is packed as accessary, pls.unpack and remove it from cabinet The Front Grille is packed as accessary, pls.unpack and remove it from cabinet inside.
  • Page 46 Front Grille Front Grille INSTRUCTION MANUAL Install the Front Grille by screwing the 4 Tapping Screws (ST4.2x10) tightly with a phillips Front Grille 2. Install the Front Grille by screwing the 4 Tapping Screws (ST4.2x10) tightly with a nstall the Front Grille by screwing the 4 Tapping Screws (ST4.2x10) tightly with a phillips screwdriver;...

  • Page 47: Download Other Language User Manal

    INSTRUCTION MANUAL DOWNLOAD OTHER LANGUAGE USER MANAL You can find Norwegian, Swedish, Finnish and Danish user manual from below website. You can download Norwegian user manual at https://temptech.no/manualer-og- installasjon/ You can download Swedish user manual at https://temptech.se/manualar-och- installation You can download Finnish user manua at https://temptech.fi/kayttoohjeet-ja- asennus/ You can download Danish user manual at https://temptech.dk/brugervejledning-...
