Wine Coolers

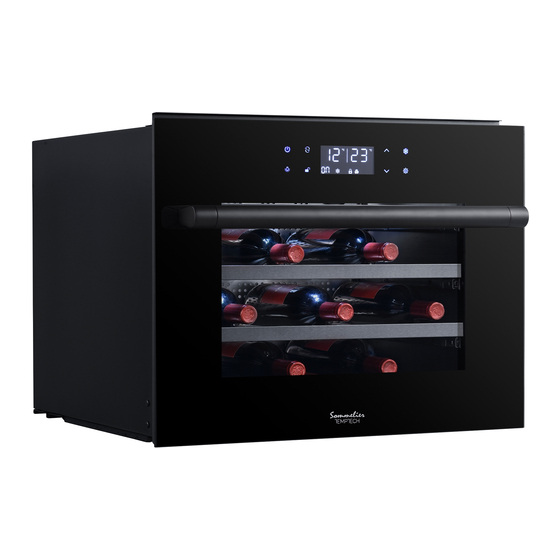

USER MANUAL
This manual contains important information including safety and
installation instructions of the appliances. Please read it carefully before
use and follow all safety information & instructions. It is recommended
to keep this manual for easy reference so that you can be familiar with the
operation of the appliance.
V2/2021
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Temptech Sommelier SOMZ45SB
Summary of Contents for Temptech Sommelier SOMZ45SB
- Page 1 Wine Coolers USER MANUAL This manual contains important information including safety and installation instructions of the appliances. Please read it carefully before use and follow all safety information & instructions. It is recommended to keep this manual for easy reference so that you can be familiar with the operation of the appliance.
-
Page 2: Table Of Contents
--CONTENTS-- 01 ENERGY SAVING AND ECOLOGICAL PROTECTION 03 IMPORTANT SAFETY INFORMATION Conformity Energy Saving Service 07 DESCRIPTION OF APPLIANCE AND INSTALLATION SOMZ45SB SOMX15SRB SOMX30DRB SOMQ38DRB SOMX60DRB / SOMX60SRB SOM2DX60DRB SOMPRO120SRB SOM180DRB 11 ACCESSORY INSTALLATION BEFORE OPERATING UNPACKING AND CLEANING THE WINE COOLER Adjusting the height and levelling off your wine cabinet Installing The Handle LOCK &... - Page 3 Moving Your Wine Cooler Power Failure 24 Vacation Time Disconnecting From Power 25 TROUBLESHOOTING 26 REVERSE THE DOOR SWING Undercounter wine cooler SOMPRO120SRB AND SOM180DRB 35 REMOVABLE FRONT GRILL INSTALLATION 37 OTHER LANGUAGE USER MANUAL...
-
Page 4: Energy Saving And Ecological Protection
INSTRUCTION MANUAL Please removed all packaging, stickers and films from the products surface and clean the product’ s surfaces with a damp cloth and mild deturgent before using for the first time. • Let the appliance stand upright for approximately hours before connecting it to the power source, which helps to reduce the possibility of a cooling-system malfunction from handling during transportation. - Page 5 - Tropical: ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C’; (o) How to find the model information in the product database: Please visit our website https://temptech.no/ to find the instruction about how to find production information in EU database. .02.
-
Page 6: Important Safety Information
INSTRUCTION MANUAL IMPORTANT SAFETY INFORMATION This appliance uses flammable refrigerants and flammable insulation blowing gases. Before using the appliance, please properly position and install it as described in this manual. To avoid the risk of fire, electrical shock, or injury when using the appliance, follow these basic precautions: ●... - Page 7 INSTRUCTION MANUAL You may adjust the appliance’s feet to level it. ● Never clean the appliance parts with flammable fluids which may create a hazard or explosion. And do not store or use gasoline or other flammable sprays and liquids in the vicinity of the appliance. ●...
- Page 8 INSTRUCTION MANUAL 2. farmhouses and by clients in hotels, motels and other residential type environments; 3.bed and breakfast type environments; 4.catering and similar non-retail applications – WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. –...
-
Page 9: Conformity
INSTRUCTION MANUAL large WEEE, home collection could be present. In many countries, when you buy a new appliance, the old one may be returned to the retailer who has to collect it free of charge on a one-to-one basis, as long as the equipment is of equivalent type and has the same functions as the supplied equipment. -
Page 10: Description Of Appliance And Installation
INSTRUCTION MANUAL DESCRIPTION OF APPLIANCE AND INSTALLATION The following pictures only show description of appliance. The dimension and shelf quantity may differ among the models of the same series. „ SOMZ45SB 200cm² Min. 1. Before inserting the unit into the kitchen cabinet, please unscrew the original 4 leveling feet (in white), and screw the 2 short leveling feet... -
Page 11: Somx15Srb
INSTRUCTION MANUAL „ SOMX15SRB • Height Adjustable: 813-863mm „ SOMX30DRB • Height Adjustable: 813-833mm .08. -
Page 12: Somq38Drb
INSTRUCTION MANUAL „ SOMQ38DRB • Height Adjustable: 853-873mm „ SOMX60DRB / SOMX60SRB • Height Adjustable: 813-833mm .09. -
Page 13: Som2Dx60Drb
INSTRUCTION MANUAL „ SOM2DX60DRB • Height Adjustable: 813-833mm „ SOMPRO120SRB .10. -
Page 14: Som180Drb
INSTRUCTION MANUAL „ SOM180DRB ACCESSORY INSTALLATION BEFORE OPERATING „ UNPACKING AND CLEANING THE WINE COOLER • Remove the exterior and interior packing materials. • 24 hours Let the appliance stand upright for approximately before connecting it to the power source, which helps to reduce the possibility of a cooling-system malfunction from handling during transportation. -
Page 15: Adjusting The Height And Levelling Off Your Wine Cabinet
INSTRUCTION MANUAL o A decorative plinth can be fitted to the front of the base vent, a cut-out should be made in the plinth with bigger size than the front louver. The cut out is required whether the front louver is removed or not. „... -
Page 16: Installing The Handle
INSTRUCTION MANUAL „ Installing The Handle Gasket Handle Washer Handle Screws ● Remove the door Gasket slightly to expose the two screw holes. ● Fix the Handle by screwing the two Handle Screws tightly, the Handle Screws with Washers are pre-installed inside the screw holes, pls.do not unscrew the Handle Screws too much in case the Washers fell off. -
Page 17: Wine Storage
INSTRUCTION MANUAL • If the ambient temperature is above or below the designed climate range, the performance of the unit may be affected. For example, the appliance operating in extreme cold or hot conditions may cause interior temperatures to fluctuate, and the temperature set 5-22°C may not be reached sometimes. -
Page 18: Control Panel (Control In Cabinet)
INSTRUCTION MANUAL „ CONTROL PANEL (Control In Cabinet) • For SOMX15SRB, SOMX60SRB, SOM2DX60DRB A. Power B. Lighting C. Display Window D. Temp. Plus E. Temp.Minus F. Lock / Unlock G. Function Indicator H. ºC/ºF Switch • For SOMX30DRB, SOMQ38DRB, SOMX60DRB, SOM180DRB Upper Zone A. -
Page 19: Power On/Off Control
INSTRUCTION MANUAL • SOMPRO120SRB Power Lighting Display Window Temp. Plus D+E. ºC/ºF Switch Temp.Minus A+B. Lock / Unlock „ POWER ON/OFF CONTROL • When the appliance is plugged in to a power outlet, it powers on automatically. • Touch the power mark and hold for 10 seconds to turn off (or turn on) the appliance. -
Page 20: Temperature Display Window
INSTRUCTION MANUAL „ TEMPERATURE DISPLAY WINDOW • The temperature is displayed in digital which is the best way to be read out. The digital is shown as the set temperature when you are setting the temperature. • Model SOM2DX60DRB will show actual tempearture when you are setting the temperature. -
Page 21: Function Indicating Light
INSTRUCTION MANUAL „ FUNCTION INDICATING LIGHT For SOMX15SRB, SOMX60SRB, SOM2DX60DRB, SOMPRO120SRB o When the compressor starts to work, the Indicator will stay o In other conditions, the Indicator will be off. Function Indicator For SOMX30DRB, SOMQ38DRB, SOMX60DRB, SOM180DRB o The Indicator 1 will flash every 2 seconds when the unit is plugged in;... -
Page 22: Control Panel Control On Door
INSTRUCTION MANUAL „ CONTROL PANEL Control On Door • For SOMZ45SB Power °C/°F Display Window Temp.Up Temp.Range Set Set Temp. Actual Temp. Light Unlock On/Off Temp.Down „ POWER ON/OFF CONTROL FOR SOMZ45SB • Press for 3 seconds to turn on the control panel back light buttons if they are off. -
Page 23: Somz45Sb Selecting Fahrenheit(ºf) & Celsius (ºc) Display
INSTRUCTION MANUAL „ SOMZ45SB SELECTING FAHRENHEIT(ºF) & CELSIUS (ºC) DISPLAY • Press to alter the temperature display in Fahrenheit or Celsius. °C/°F „ TEMPERATURE SETTING FOR SOMZ45SB For Single Zone • Press to set temperature. The digital flashes to inform the accessibility to adjust setting. -
Page 24: Care And Maintenance
INSTRUCTION MANUAL The temperature display will show the set temperature when the Wine Cooler control panel is unlocked and selected to be reset, and show the actual temperature when the control panel is locked. The display window can be set to the off position for a less obtrusive appearance. Your Wine Cooler will continue to run, but the Wine Coolers display window will not be visible. -
Page 25: Carbon Filter Change (Option)
INSTRUCTION MANUAL • Make sure the shelves are fully engaged before loading any bottle into the cabinet. Pull the shelves out all the way to the STOPPER position and push them back in several times to make sure the shelves are properly engaged. A. -
Page 26: Defrosting
INSTRUCTION MANUAL „ Defrosting o Defrosting occurs automatically inside of the Wine Cooler during operation. The defrost water is collected by the evaporating tray and evaporates automatically. o The evaporating tray and defrost water drain hole should be cleaned periodically. This will prevent water from collecting in the bottom of the Wine Cooler, instead of flowing down the defrost drainage channel and drain hole. -
Page 27: Vacation Time
INSTRUCTION MANUAL „ Vacation Time Short vacations: Leave the Wine Cooler in operation for holidays of less than 3 weeks. Long vacations: o If your appliance is not going to be in use for a period of time, you should remove the bottles of wine and switch off the appliance o The interior should be cleaned with a solution of bicarbonate of soda and lukewarm water. -
Page 28: Troubleshooting
INSTRUCTION MANUAL TROUBLESHOOTING If you feel the appliance is not working properly, follow these instructions to try to see if you can solve the problem simply by yourself before calling for service. PROBLEM PROBLEM POSSIBLE CAUSE / MEASURE Not plugged in. The wine cooler does not operate The appliance is turned off. -
Page 29: Reverse The Door Swing
INSTRUCTION MANUAL REVERSE THE DOOR SWING Remarks: ● The following operations are available for a model with control in cabinet only and with Right Door Hinge installed. ● All removed parts must be saved in order to do the door reinstallation. •... - Page 30 INSTRUCTION MANUAL Unscrew the Upper Right Hinge and Bottom Right Hinge from the cabinet. Keep them well for door re-installation. Upper Right Hinge Bottom Right Hinge Pull out the 6 Plastic Caps at the front left corner of the cabinet. And move them all to the right side.
- Page 31 INSTRUCTION MANUAL Move the Hinge Hole Cap (at the top of the door) from the left side to the right side. Hinge Hole Cap Remove the Handle Hole Cap (2pcs) on the right side of Door by prying it out gently with small flat screwdriver.
- Page 32 INSTRUCTION MANUAL Handle Screw Washer Handle Install the Handle to the right side of the door by screwing tightly the Handle Screws (2PCS). Handle Screw Washer Handle .Push the Handle Hole Cap (2pcs) into the Handle Holes on the left side of the Door. .29.
- Page 33 INSTRUCTION MANUAL Handle Hole Cap .Insert the Pivot Hinge into the bottom hinge hole of the door. Pivot Hinge .Install the door to the left hinge side by tightening the Pivot Hinge with the 2 screws. Bottom Left Hinge Pivot Hinge Screws (2pcs) .30.
-
Page 34: Sompro120Srb And Som180Drb
INSTRUCTION MANUAL „ SOMPRO120SRB AND SOM180DRB IMPORTANT INFORMATION We recommend that you secure the racks in place using adhesive tape to prevent causing damage when handling the appliance and store all removed parts carefully. Remove the Hole Cover and Upper Hinge Cover on top side using a flat-head screwdriver. Remove the Upper Hinge by unscrewing the Hex Head Srews (4pcs). - Page 35 INSTRUCTION MANUAL Remove the Bottom Hinge Cover by prying it off gently with small flat screwdriver. Remove the Bottom Hinge by unscrewing the Hex Head Screw (4pcs). Unscrew the Pan Head Screw (4pcs) from bottom left side. Now move the Bottom Hinge to the bottom left side and screw it tightly with the Hex Head Screws (4pcs).
- Page 36 INSTRUCTION MANUAL Remove the Handle Hole Cap (2pcs) on the right side of Door by prying it out gently with small flat screwdriver. Handle Hole Cap Gently pull the door gasket to one side to reveal the Handle Screws (2pcs) on the left side of the Door.Unscrew it with a cross screwdriver and Remove the Handle (Leave the Washers as where it is).
- Page 37 INSTRUCTION MANUAL nstall the Handle to the right side of the door by screwing tightly the Handle Screws (2PCS). Handle Screw Washer Handle Push the Handle Hole Cap (2pcs) into the Handle Holes on the left side of the Door. Handle Hole Cap .34.
-
Page 38: Removable Front Grill Installation
INSTRUCTION MANUAL REMOVABLE FRONT GRILL INSTALLATION Include models SOMX15SRB, SOMX30DRB, SOMX60SRB, SOM2DX60DRB and SOMX60DRB. The plinth/grille for this appliance comes packaged inside and can be fitted if desired. Follow these steps to do so: 1. Locate the plinth (packaged inside the appliance) 2. - Page 39 INSTRUCTION MANUAL .36.
-
Page 40: Other Language User Manual
Fig. 17 OTHER LANGUAGE USER MANUAL You can find Norwegian, Swedish, Finnish and Danish user manual from below website. You can download Norwegian user manual at https://temptech.no/manualer-og- installasjon/ You can download Swedish user manual at https://temptech.se/manualar-och- installation You can download Finnish user manua at https://temptech.fi/kayttoohjeet-ja- asennus/ You can download Danish user manual at https://temptech.dk/brugervejledning-...
