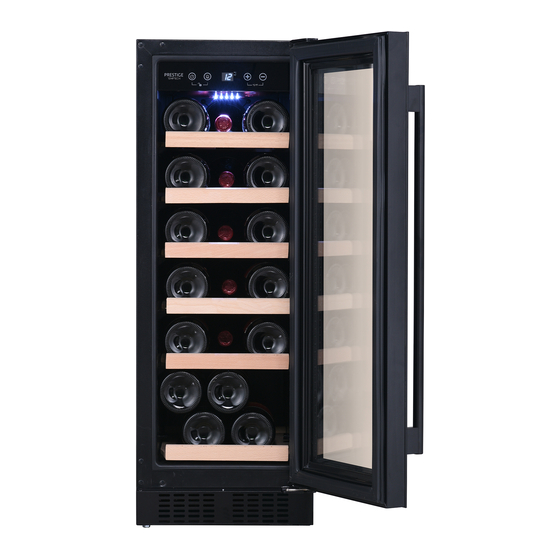

Temptech PRESTIGE PRESX30SB User Manual

Hide thumbs Also See for PRESTIGE PRESX30SB:
Table of Contents

Advertisement

Quick Links

Wine Coolers
USER MANUAL
This manual contains important information including safety and
installation instructions of the appliances. Please read it carefully before
use and follow all safety information & instructions. It is recommended
to keep this manual for easy reference so that you can be familiar with the
operation of the appliance.
V1/2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PRESTIGE PRESX30SB and is the answer not in the manual?

Questions and answers

Related Manuals for Temptech PRESTIGE PRESX30SB

Summary of Contents for Temptech PRESTIGE PRESX30SB

  • Page 1 Wine Coolers USER MANUAL This manual contains important information including safety and installation instructions of the appliances. Please read it carefully before use and follow all safety information & instructions. It is recommended to keep this manual for easy reference so that you can be familiar with the operation of the appliance.

  • Page 2: Table Of Contents

    --CONTENTS-- 01 ENERGY SAVING AND ECOLOGICAL PROTECTION 03 IMPORTANT SAFETY INFORMATION Conformity Energy Saving Service 06 DESCRIPTION OF APPLIANCE AND INSTALLATION PRESX30SB PRESX38DB PRESX60DB / PRESPROX60SRB PRES180DB 09 ACCESSORY INSTALLATION BEFORE OPERATING UNPACKING AND CLEANING THE WINE COOLER Adjusting the height and levelling off your wine cabinet Installing The Handle LOCK &...

  • Page 3: Energy Saving And Ecological Protection

    INSTRUCTION MANUAL Please removed all packaging, stickers and films from the products surface and clean the product’ s surfaces with a damp cloth and mild deturgent before using for the first time. • Let the appliance stand upright for approximately hours before connecting it to the power source, which helps to reduce the possibility of a cooling-system malfunction from handling during transportation.
  • Page 4 - Tropical: ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C’; (o) How to find the model information in the product database: Please visit our website https://temptech.no/ to find the instruction about how to find production information in EU database. .02.

  • Page 5: Important Safety Information

    INSTRUCTION MANUAL IMPORTANT SAFETY INFORMATION This appliance uses flammable refrigerants and flammable insulation blowing gases. Before using the appliance, please properly position and install it as described in this manual. To avoid the risk of fire, electrical shock, or injury when using the appliance, follow these basic precautions: ●...
  • Page 6 INSTRUCTION MANUAL create a hazard or explosion. And do not store or use gasoline or other flammable sprays and liquids in the vicinity of the appliance. ● Do not use solvent-based cleaning agents of abrasives on the interior. These cleaners may damage or discolor the interior. ●...
  • Page 7 INSTRUCTION MANUAL 3.bed and breakfast type environments; 4.catering and similar non-retail applications – WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. – WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

  • Page 8: Conformity

    INSTRUCTION MANUAL In many countries, when you buy a new appliance, the old one may be returned to the retailer who has to collect it free of charge on a one-to-one basis, as long as the equipment is of equivalent type and has the same functions as the supplied equipment.

  • Page 9: Presx38Db

    INSTRUCTION MANUAL • Height Adjustable: 813-833mm „ PRESX38DB • Height Adjustable: 853-873mm .07.

  • Page 10: Presx60Db / Presprox60Srb

    INSTRUCTION MANUAL „ PRESX60DB / PRESPROX60SRB • Height Adjustable: 813-833mm „ PRES180DB 1770mm ≥ (69 ¾”) 1770mm (69 ¾”) .08.

  • Page 11: Accessory Installation Before Operating

    INSTRUCTION MANUAL ACCESSORY INSTALLATION BEFORE OPERATING „ UNPACKING AND CLEANING THE WINE COOLER • Remove the exterior and interior packing materials. • 24 hours Let the appliance stand upright for approximately before connecting it to the power source, which helps to reduce the possibility of a cooling-system malfunction from handling during transportation.

  • Page 12: Installing The Handle

    INSTRUCTION MANUAL IMPORTANT: Do not move the appliance when the feet are adjusted high. „ Installing The Handle Gasket Handle Washer Handle Screws ● Remove the door Gasket slightly to expose the two screw holes. ● Fix the Handle by screwing the two Handle Screws tightly, the Handle Screws with Washers are pre-installed inside the screw holes, pls.do not unscrew the Handle Screws too much in case the Washers fell off.

  • Page 13: Wine Storage

    INSTRUCTION MANUAL • If the ambient temperature is above or below the designed climate range, the performance of the unit may be affected. For example, the appliance operating in extreme cold or hot conditions may cause interior temperatures to fluctuate, and the temperature set 5-22°C may not be reached sometimes.

  • Page 14: Control Panel (Control In Cabinet)

    INSTRUCTION MANUAL „ CONTROL PANEL (Control In Cabinet) • For Single Zone A. Power B. Lighting C. Display Window D. Temp. Plus E. Temp.Minus F. Lock / Unlock G. Function Indicator H. ºC/ºF Switch • For Dual Zone Upper Zone A.

  • Page 15: Unlocking The Control Panel

    INSTRUCTION MANUAL „ UNLOCKING THE CONTROL PANEL • To unlock the control panel, touch the power mark and lighting mark with 2 fingers at the same time and hold for 3 seconds . When unlocked a buzz sound will be heard. •...

  • Page 16: Selecting Fahrenheit(ºf) & Celsius (ºc) Display

    INSTRUCTION MANUAL „ SELECTING FAHRENHEIT(ºF) & CELSIUS (ºC) DISPLAY For Single Zone Touch the marks with 2 fingers at the same time and hold for 5 seconds, you can interchange the Fahrenheit and Celsius display. For Dual Zone Directly touch the mark , you can interchange the Fahrenheit and Celsius display for both zones at the same time.

  • Page 17: Removing The Shelves

    INSTRUCTION MANUAL any electrical parts. • Wipe the outside cabinet with warm water and mild liquid detergent. Wipe dry with a clean soft cloth. • Do not use steel wool or steel brush on the stainless steel. These will scratch the stainless steel with steel particles and rusting may occur.

  • Page 18: Defrosting

    INSTRUCTION MANUAL A good ambient air quality is important for wine maturing. The Carbon Filter is very helpful to absorb odor and improve air quality.For the models with Carbon Filter, we suggest to replace it once a year.Pls.contact your dealer to get the filter.

  • Page 19: Vacation Time

    INSTRUCTION MANUAL o If power is cut to the appliance, for a few hours it will be able to maintain the temperature inside the cabinet. Providing that the number of times that the door is opened is kept to a minimum. o If the power cut is for longer than a few hours, then you will need to store the contents in an alternate location to prevent them being affected by temperature rise.

  • Page 20: Troubleshooting

    INSTRUCTION MANUAL TROUBLESHOOTING If you feel the appliance is not working properly, follow these instructions to try to see if you can solve the problem simply by yourself before calling for service. PROBLEM PROBLEM POSSIBLE CAUSE / MEASURE Not plugged in. The wine cooler does not operate The appliance is turned off.

  • Page 21: Reverse The Door Swing

    INSTRUCTION MANUAL REVERSE THE DOOR SWING Remarks: ● The following operations are available for a model with control in cabinet only and with Right Door Hinge installed. ● All removed parts must be saved in order to do the door reinstallation. „...
  • Page 22 INSTRUCTION MANUAL Unscrew the Upper Right Hinge and Bottom Right Hinge from the cabinet. Keep them well for door re-installation. Upper Right Hinge Bottom Right Hinge Pull out the 6 Plastic Caps at the front left corner of the cabinet. And move them all to the right side.
  • Page 23 INSTRUCTION MANUAL Move the Hinge Hole Cap (at the top of the door) from the left side to the right side. Hinge Hole Cap Remove the Handle Hole Cap (2pcs) on the right side of Door by prying it out gently with small flat screwdriver.
  • Page 24 INSTRUCTION MANUAL Gently pull the door gasket to one side to reveal the Handle Screws (2pcs) on the left side of the Door.Unscrew it with a cross screwdriver and Remove the Handle (Leave the Washers as where it is). Handle Screw Washer Handle Install the Handle to the right side of the door by screwing tightly the Handle Screws (2PCS).
  • Page 25 INSTRUCTION MANUAL .Push the Handle Hole Cap (2pcs) into the Handle Holes on the left side of the Door. Handle Hole Cap .Insert the Pivot Hinge into the bottom hinge hole of the door. Pivot Hinge .23.

  • Page 26: Pres180Db

    INSTRUCTION MANUAL .Install the door to the left hinge side by tightening the Pivot Hinge with the 2 screws. Bottom Left Hinge Pivot Hinge Screws (2pcs) „ PRES180DB IMPORTANT INFORMATION We recommend that you secure the racks in place using adhesive tape to prevent causing damage when handling the appliance and store all removed parts carefully.
  • Page 27 INSTRUCTION MANUAL Hinge Hole Cap Pivot Hinge Remove the Bottom Hinge Cover by prying it off gently with small flat screwdriver. Remove the Bottom Hinge by unscrewing the Hex Head Screw (4pcs). Unscrew the Pan Head Screw (4pcs) from bottom left side. Now move the Bottom Hinge to the bottom left side and screw it tightly with the Hex Head Screws (4pcs).
  • Page 28 INSTRUCTION MANUAL Hex Head Screw(4pcs) Upper Hinge Cover Upper Hinge Bushing Upper Hinge Hole Cover Door Hinge Washer Bottom Hinge Bottom Hinge Cover Remove the Handle Hole Cap (2pcs) on the right side of Door by prying it out gently with small flat screwdriver.
  • Page 29 INSTRUCTION MANUAL Gently pull the door gasket to one side to reveal the Handle Screws (2pcs) on the left side of the Door.Unscrew it with a cross screwdriver and Remove the Handle (Leave the Washers as where it is). Handle Screw Washer Handle nstall the Handle to the right side of the door by screwing tightly the Handle Screws (2PCS).

  • Page 30: Install Removable Front Grille

    INSTRUCTION MANUAL Push the Handle Hole Cap (2pcs) into the Handle Holes on the left side of the Door. Handle Hole Cap INSTRUCTION MANUAL INSTRUCTION MANUAL ACCESSORY INSTALLATION BEFORE OPERATING INSTALL REMOVABLE FRONT GRILLE ACCESSORY INSTALLATION BEFORE OPERATING „ Install Removable Front Grille „...

  • Page 31: How To Find Other Language User Manual

    Front Grille. HOW TO FIND OTHER LANGUAGE USER MANUAL You can find Norwegian, Swedish, Finnish and Danish user manual from below website. You can download Norwegian user manual at https://temptech.no/manualer-og- installasjon/ You can download Swedish user manual at https://temptech.se/manualar-och- installation You can download Finnish user manua at https://temptech.fi/kayttoohjeet-ja-...
