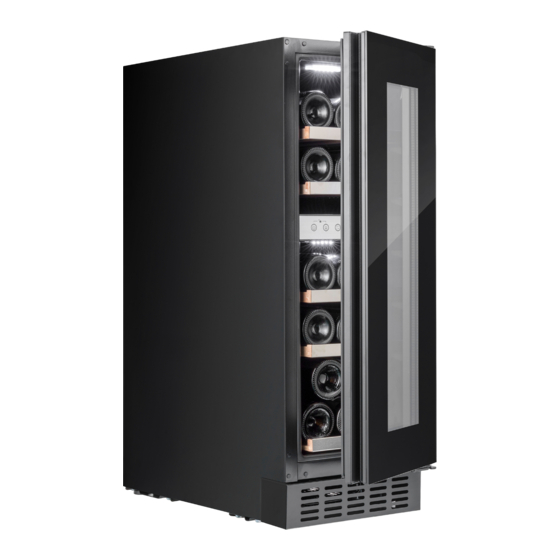

USER MANUAL
This manual contains important information including safety and
installation instructions of the appliances. Please read it carefully before
use and follow all safety information & instructions. It is recommended
to keep this manual for easy reference so that you can be familiar with the
operation of the appliance.
V2/2021
Advertisement
Table of Contents
Related Manuals for Temptech STHLM STX30DRB
Summary of Contents for Temptech STHLM STX30DRB
- Page 1 Wine Coolers USER MANUAL This manual contains important information including safety and installation instructions of the appliances. Please read it carefully before use and follow all safety information & instructions. It is recommended to keep this manual for easy reference so that you can be familiar with the operation of the appliance.
-
Page 2: Table Of Contents
--CONTENTS-- 01 ENERGY SAVING AND ECOLOGICAL PROTECTION 03 IMPORTANT SAFETY INFORMATION Conformity Energy Saving Service 06 DESCRIPTION OF APPLIANCE AND INSTALLATION STX30DRB / STX30DS STX60DRB / STX60DS ST180DRB / ST180DS STZ60SB / STZ60SX 09 ACCESSORY INSTALLATION BEFORE OPERATING UNPACKING AND CLEANING THE WINE COOLER Adjusting the height and levelling off your wine cabinet Installing The Handle LOCK &... - Page 3 ST180DRB AND ST180DS 35 INSTALL REMOVABLE FRONT GRILLE STX30DRB / STX30DS / STX60DRB / STX60DS 36 DOWNLOAD OTHER LANGUAGE USER MANAL...
-
Page 4: Energy Saving And Ecological Protection
INSTRUCTION MANUAL Please removed all packaging, stickers and films from the products surface and clean the product’ s surfaces with a damp cloth and mild deturgent before using for the first time. • Let the appliance stand upright for approximately hours before connecting it to the power source, which helps to reduce the possibility of a cooling-system malfunction from handling during transportation. - Page 5 - Tropical: ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C’; (o) How to find the model information in the product database: Please visit our website https://temptech.no/ to find the instruction about how to find production information in EU database. .02.
-
Page 6: Important Safety Information
INSTRUCTION MANUAL IMPORTANT SAFETY INFORMATION This appliance uses flammable refrigerants and flammable insulation blowing gases. Before using the appliance, please properly position and install it as described in this manual. To avoid the risk of fire, electrical shock, or injury when using the appliance, follow these basic precautions: ●... - Page 7 INSTRUCTION MANUAL create a hazard or explosion. And do not store or use gasoline or other flammable sprays and liquids in the vicinity of the appliance. ● Do not use solvent-based cleaning agents of abrasives on the interior. These cleaners may damage or discolor the interior. ●...
- Page 8 INSTRUCTION MANUAL 3.bed and breakfast type environments; 4.catering and similar non-retail applications – WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. – WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
-
Page 9: Conformity
INSTRUCTION MANUAL In many countries, when you buy a new appliance, the old one may be returned to the retailer who has to collect it free of charge on a one-to-one basis, as long as the equipment is of equivalent type and has the same functions as the supplied equipment. -
Page 10: Stx60Drb / Stx60Ds
INSTRUCTION MANUAL • Height Adjustable: 813-833mm „ STX60DRB / STX60DS • Height Adjustable: 813-833mm .07. -
Page 11: St180Drb / St180Ds
INSTRUCTION MANUAL „ ST180DRB / ST180DS 1770mm ≥ (69 ¾”) 1770mm (69 ¾”) „ STZ60SB / STZ60SX 200cm² Min. (Hot Air Outlet) 200cm² Min. (Cool Air Inlet) .08. -
Page 12: Accessory Installation Before Operating
INSTRUCTION MANUAL To fix the appliance with Cabinet, pls. screw the 3 screws (ST4.2*12mm) through the Top Bracket. The Top Bracket is pre-installed on top of appliance. ACCESSORY INSTALLATION BEFORE OPERATING „ UNPACKING AND CLEANING THE WINE COOLER • Remove the exterior and interior packing materials. •... -
Page 13: Installing The Handle
INSTRUCTION MANUAL o Twist the foot into a suitable position to level the cabinet. o Repeat these steps for the other adjustable feet. IMPORTANT: If the appliance is not level, then the door and door seal may be affected. IMPORTANT: Do not move the appliance when the feet are adjusted high. „... -
Page 14: Operating The Wine Cooler
INSTRUCTION MANUAL OPERATING THE WINE COOLER „ WORKING CLIMATE • The appliance is designed for operating from SN to T climate (see below climate class chart). It is recommended to maintain the ambient around 22-25°C which helps the appliance working with low power consumption. Klimaklasse Romtemperatur 10 - 32 °C (50 ºF-90ºF) - Page 15 INSTRUCTION MANUAL • Pay attention to the recommended/preferable storage time of the wines you bought. • Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance. The recommended temperature for chilling/storing wines is as below, please choose zones and temperatures accordingly.
- Page 16 INSTRUCTION MANUAL For Single Zone STZ60SB and STZ60SX Power Temp.Plus Light Temp.Minus Lock F Switch Temp. Display Mode Display Window Marks on Dispaly Window Warning Digital Compressor Screen on Lock .13.
-
Page 17: Control Panel
INSTRUCTION MANUAL „ POWER ON/OFF CONTROL For Dual Zone Includes STX30DRB,STX30DS,STX60DRB,STX60DS,ST180DRB, ST180DS • When the appliance is plugged in to a power outlet, it powers on automatically. • Touch the power mark and hold for 10 seconds to turn off (or turn on) the appliance. -
Page 18: Interior Lighting On/Off Control
INSTRUCTION MANUAL o To unlock the control panel, press the lock button 3 seconds again, the lock mark on the screen will be light on with a beep sounded; o Note: System will be in unlocking state by default once the appliance is powered up and energized. -
Page 19: Selecting Fahrenheit(ºf) & Celsius (ºc) Display
INSTRUCTION MANUAL and 12-20 ºC (54-68 ºF ) for the bottom zone. • to increase the set temperature by 1 ºC (or by 1ºF) . On the Touch the mark to decrease the set temperature by 1 ºC (or by 1ºF). contrary, touch the mark For Single Zone STZ60SB and STZ60SX o The range of temperature is 5-20 ºC (41-68 ºF);... -
Page 20: Function Indicating Light For Dual Zone Models
INSTRUCTION MANUAL „ FUNCTION INDICATING LIGHT FOR DUAL ZONE MODELS Includes STX30DRB,STX30DS,STX60DRB,STX60DS,ST180DRB, ST180DS o The Indicator 1 will flash every 2 seconds when the unit is plugged in; o The Indicator 1 will stay on when the compressor starts to work; o The Indicator 2 will flash every 3 seconds when the heating function of lower zone starts to work;... -
Page 21: Overheating Warning For Stz60Sb And Stz60Sx
INSTRUCTION MANUAL „ OVERHEATING WARNING FOR STZ60SB AND STZ60SX o The Overheating Warning will be activated automatically when the temperature in cabinet goes up to more than 25°C(77ºF) included and last for more than 3 hours, at the same time, the buzzer alarm will sound loudly, the lighting inside will flash, the Warning mark will light on, the digital will show 25°C or 77ºF and flash once... -
Page 22: Removing The Shelves
INSTRUCTION MANUAL „ REMOVING THE SHELVES • Before removing a Shelf from the appliance, it is necessary to remove all the bottles on the Shelf ; • For a model without Telescopic Rail, move the shelf to the position where the cut of the wooden shelf is directly under the plastic stopper and lift the wooden shelf. -
Page 23: Carbon Filter Change (Option)
INSTRUCTION MANUAL „ Carbon Filter Change (Option) A good ambient air quality is important for wine maturing. The Carbon Filter is very helpful to absorb odor and improve air quality.For the models with Carbon Filter, we suggest to replace it once a year.Pls.contact your dealer to get the filter. -
Page 24: Power Failure
INSTRUCTION MANUAL „ Power Failure o If power is cut to the appliance, for a few hours it will be able to maintain the temperature inside the cabinet. Providing that the number of times that the door is opened is kept to a minimum. o If the power cut is for longer than a few hours, then you will need to store the contents in an alternate location to prevent them being affected by temperature rise. -
Page 25: Troubleshooting
INSTRUCTION MANUAL TROUBLESHOOTING If you feel the appliance is not working properly, follow these instructions to try to see if you can solve the problem simply by yourself before calling for service. PROBLEM PROBLEM POSSIBLE CAUSE / MEASURE Not plugged in. The wine cooler does not operate The appliance is turned off. -
Page 26: Reverse The Door Swing
INSTRUCTION MANUAL REVERSE THE DOOR SWING Remarks: The following operations are available for a model with control in cabinet only and ● with Right Door Hinge installed. All removed parts must be saved in order to do the door reinstallation. ●... - Page 27 INSTRUCTION MANUAL Unscrew the Upper Right Hinge and Bottom Right Hinge from the cabinet. Keep them well for door re-installation. Upper Right Hinge Bottom Right Hinge Pull out the 6 Plastic Caps at the front left corner of the cabinet. And move them all to the right side.
- Page 28 INSTRUCTION MANUAL Move the Hinge Hole Cap (at the top of the door) from the left side to the right side. Hinge Hole Cap Remove the Handle Hole Cap (2pcs) on the right side of Door by prying it out gently with small flat screwdriver.
- Page 29 INSTRUCTION MANUAL Gently pull the door gasket to one side to reveal the Handle Screws (2pcs) on the left side of the Door.Unscrew it with a cross screwdriver and Remove the Handle (Leave the Washers as where it is). Handle Screw Washer Handle Install the Handle to the right side of the door by screwing tightly the Handle Screws (2PCS).
- Page 30 INSTRUCTION MANUAL .Push the Handle Hole Cap (2pcs) into the Handle Holes on the left side of the Door. Handle Hole Cap .Insert the Pivot Hinge into the bottom hinge hole of the door. Pivot Hinge .27.
-
Page 31: Stz60Sb And Stz60Sx
INSTRUCTION MANUAL .Install the door to the left hinge side by tightening the Pivot Hinge with the 2 screws. Bottom Left Hinge Pivot Hinge Screws (2pcs) „ STZ60SB AND STZ60SX Notes: Any parts and screws that you remove from the appliance whilst reversing the door, should be retained for later use. - Page 32 INSTRUCTION MANUAL o Unscrew the 2 Phillips Flat Screws ( M4*8) from the right lower Door Hinge; o Hold the Door by two persons if necessary, remove the Door ; o Rotate the door by 180 degrees ; .29.
- Page 33 INSTRUCTION MANUAL o Make sure the hole position of the left door hinge is aligned with the hole position on the cabinet; o Install the Upper Door Shaft (Left/Right) on the upper left door corner by screwing the 2 Phillips Flat Screws ( M4*8); o Install the Upper Door Shaft (Left/Right) on the upper left door corner by screwing the 2 Phillips Flat Screws ( M4*8) .30.
- Page 34 INSTRUCTION MANUAL o Install the Top Bracket by screwing the 3 screws. „ ST180DRB AND ST180DS IMPORTANT INFORMATION We recommend that you secure the racks in place using adhesive tape to prevent causing damage when handling the appliance and store all removed parts carefully. Remove the Hole Cover and Upper Hinge Cover on top side using a flat-head screwdriver.
- Page 35 INSTRUCTION MANUAL Hinge Hole Cap Pivot Hinge Remove the Bottom Hinge Cover by prying it off gently with small flat screwdriver. Remove the Bottom Hinge by unscrewing the Hex Head Screw (4pcs). Unscrew the Pan Head Screw (4pcs) from bottom left side. Now move the Bottom Hinge to the bottom left side and screw it tightly with the Hex Head Screws (4pcs).
- Page 36 INSTRUCTION MANUAL Hex Head Screw(4pcs) Upper Hinge Cover Upper Hinge Bushing Upper Hinge Hole Cover Door Hinge Washer Bottom Hinge Bottom Hinge Cover Remove the Handle Hole Cap (2pcs) on the right side of Door by prying it out gently with small flat screwdriver.
- Page 37 INSTRUCTION MANUAL Gently pull the door gasket to one side to reveal the Handle Screws (2pcs) on the left side of the Door.Unscrew it with a cross screwdriver and Remove the Handle (Leave the Washers as where it is). Handle Screw Washer Handle nstall the Handle to the right side of the door by screwing tightly the Handle Screws (2PCS).
- Page 38 INSTRUCTION MANUAL Push the Handle Hole Cap (2pcs) into the Handle Holes on the left side of the Door. Handle Hole Cap INSTALL REMOVABLE FRONT GRILLE „ STX30DRB / STX30DS / STX60DRB / STX60DS The Front Grille is packed as accessary, pls.unpack and remove it from cabinet inside.
- Page 39 Front Grille. DOWNLOAD OTHER LANGUAGE USER MANAL You can find Norwegian, Swedish, Finnish and Danish user manual from below website. You can download Norwegian user manual at https://temptech.no/manualer-og- installasjon/ You can download Swedish user manual at https://temptech.se/manualar-och- installation You can download Finnish user manua at https://temptech.fi/kayttoohjeet-ja-...
