Pin assignment

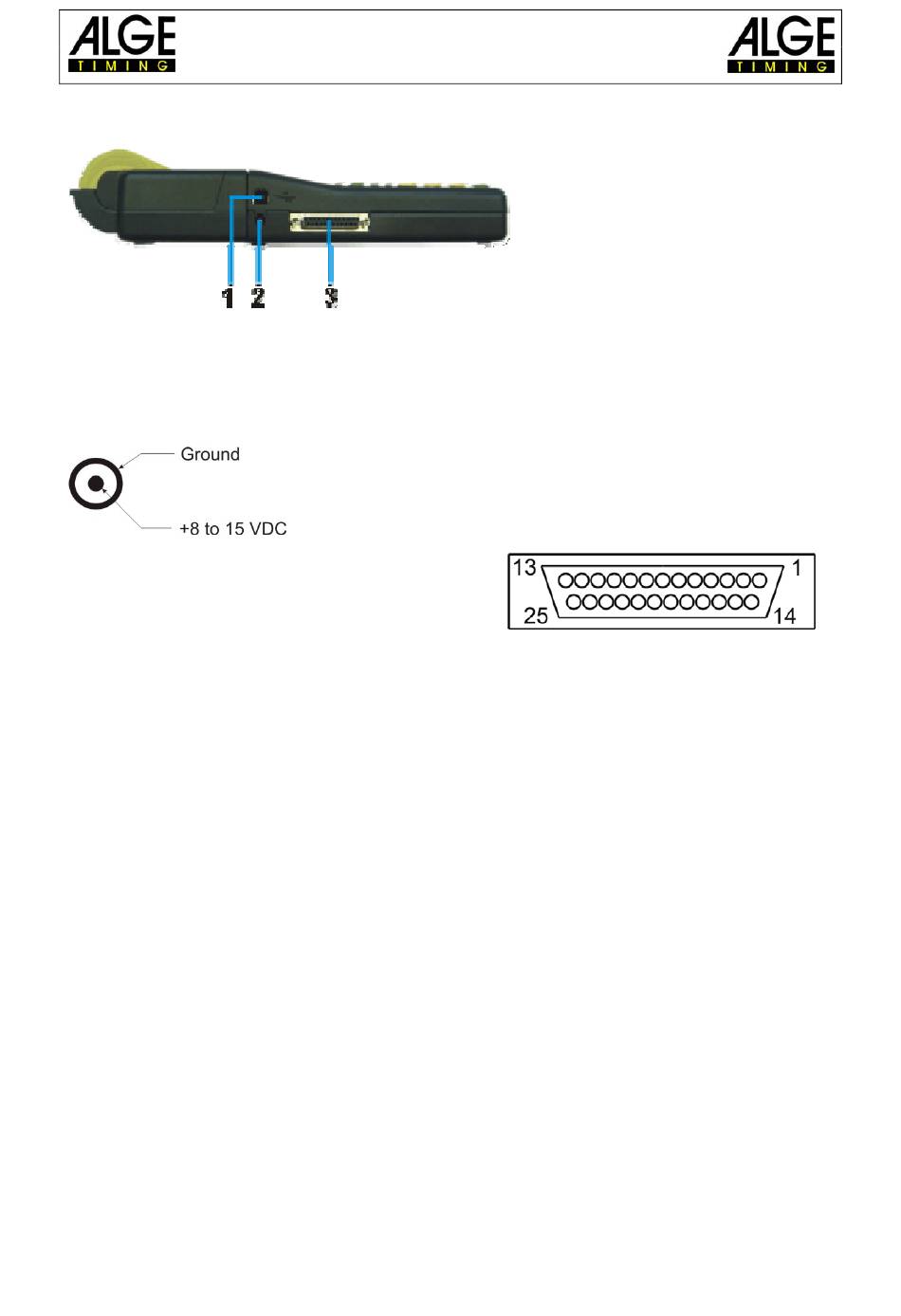

USB-Interface (1):
The USB-interface is used as interface between TIMY and PC. Via this interface the TIMY
can completely be controlled and all data can be called.
Charger Connection (2):
ALGE-Multiport (3):
Pin assignment:
1 ........ ........... terminal numbering connection
2 ........ c0....... start channel (precision 1/10 000 s)
3 ........ c2....... timing channel 2 (precision 1/10 000 s)
4 ........ c3....... timing channel 3 (precision 1/10 000 s)
5 ........ c7....... timing channel 7 (precision 1/100 s)
6 ........ ........... data output for display board
7 ........ ........... RS485B
8 ........ ........... RS485A
9 ........ ........... clock for terminals CLK
10 ...... ........... RS232 TX
11 ...... ........... RS232 RX
12 ...... ........... common ground GND
13 ...... ........... stabilized voltage out (+5V)
14 ...... c1....... stop channel (precision 1/10 000 s)
15 ...... c5....... timing channel 5 (precision 1/10 000 s)
16 ...... c8....... timing channel 8 (precision 1/100 s)
17 ...... c6....... timing channel 6 (precision 1/100 s)
18 ...... c4....... timing channel 4 (precision 1/10 000 s)
19 ...... ........... RS232 RTS
20 ...... ........... printer data out
21 ...... ........... horn output 8 Ω
22 ...... ........... RS232 CTS
23 ...... ........... output voltage 7,5 - 14,5 VDC
24 ...... ........... common ground GND
25 ...... ........... power supply in or out (8 - 15 VDC)
