4

Synchronising

For synchronising the TIMY, please follow the below
instruction:
•

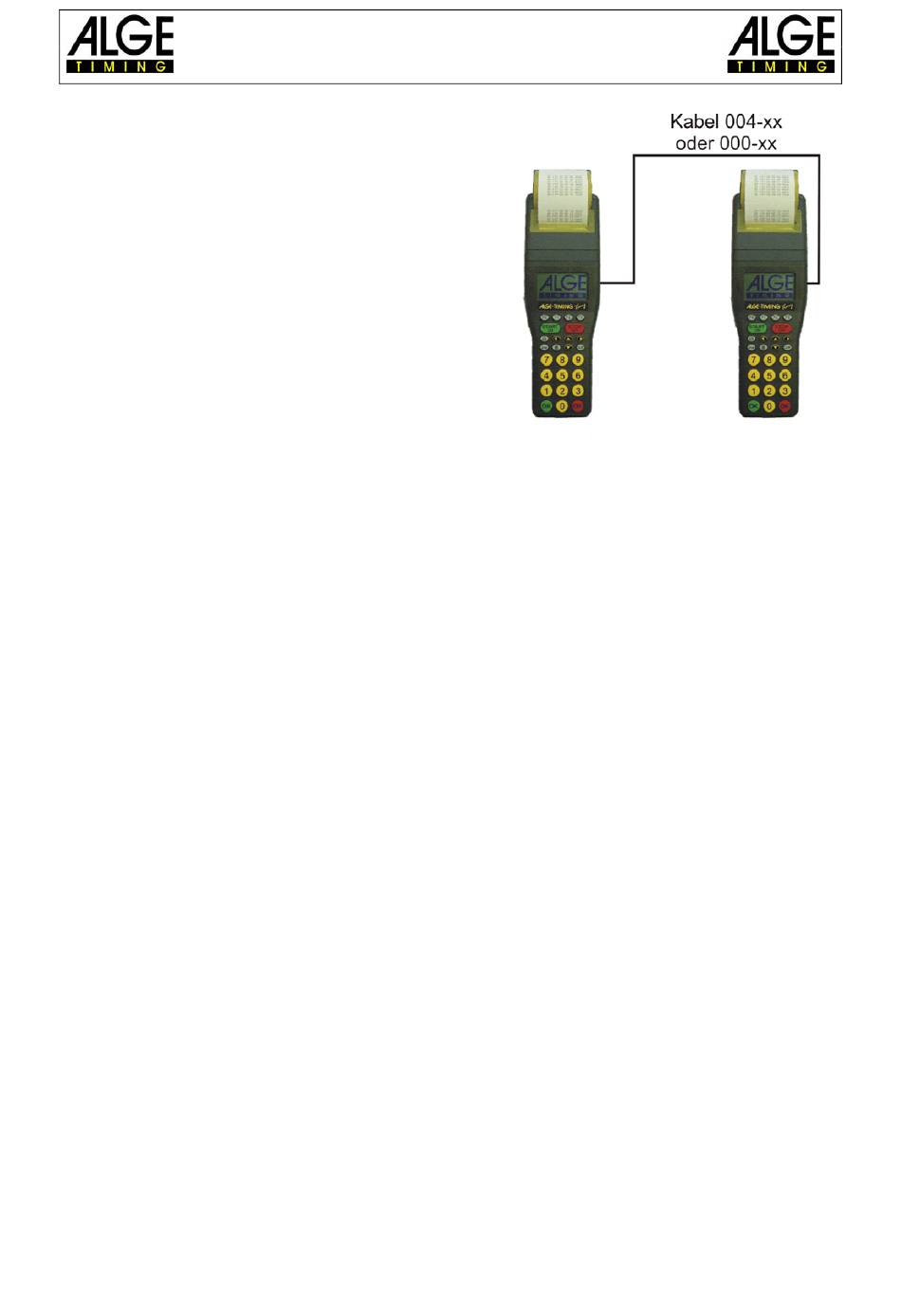

connect TIMY with cable 000-xx or
•
004-xx with other timing devices.
•
switch on the TIMY
•
clear or retain memory
•
retain time and date or correct it and confirm
or trigger with START button or via channel
C0.
4.1

Synchronisation of Other Devices with a TIMY:

The TIMY can send a synchronisation signal via channel 0 every full minute when using the
programs BACKUP or PC-TIMER.
•
connect the TIMY with the device to be synchronized
•
enter the time of day (next full minute) to be synchronized at the device
•
press and hold both buttons, the green and red OK button of the TIMY; on the
full minute the TIMY sends a synchronisation impulse. The time of day of the
timing device now runs.
5

Connection of Auxiliary Devices

A wide range of devices can be operated with the TIMY. Please ask your ALGE representative
for the possibilities.
5.1

Channels

The TIMY has 9 independent timing channels.
Attention: Channels 0 to 5 have a precision of 1/10 000 seconds but channel 6 to 8 only
1/100 seconds.
5.2

Delay and Block Times

The variable delay times and blocked times prevent generating double impulses and losing
impulses. The delay time and the blocked time can be changed in the menu.
5.2.1 Delay Time
After triggering an impulse, further impulses of the same impulse channel will be disabled for
the duration of the delay time.
Base settings:
5.2.2 Block Time
The block time is the theoretic minimum interval between two valid impulses of the same
channel. Impulses within the block time are saved as invalid. The block time is only sup-
ported by certain programs.
That is to say, for an interval start of every 30 seconds the minimum clearance is approx. 20
seconds. Thus the block time is 20 seconds, too.
TIMY General
start channel C0
stop channel C1 to C9
0.1s
0.03s
Page 11
