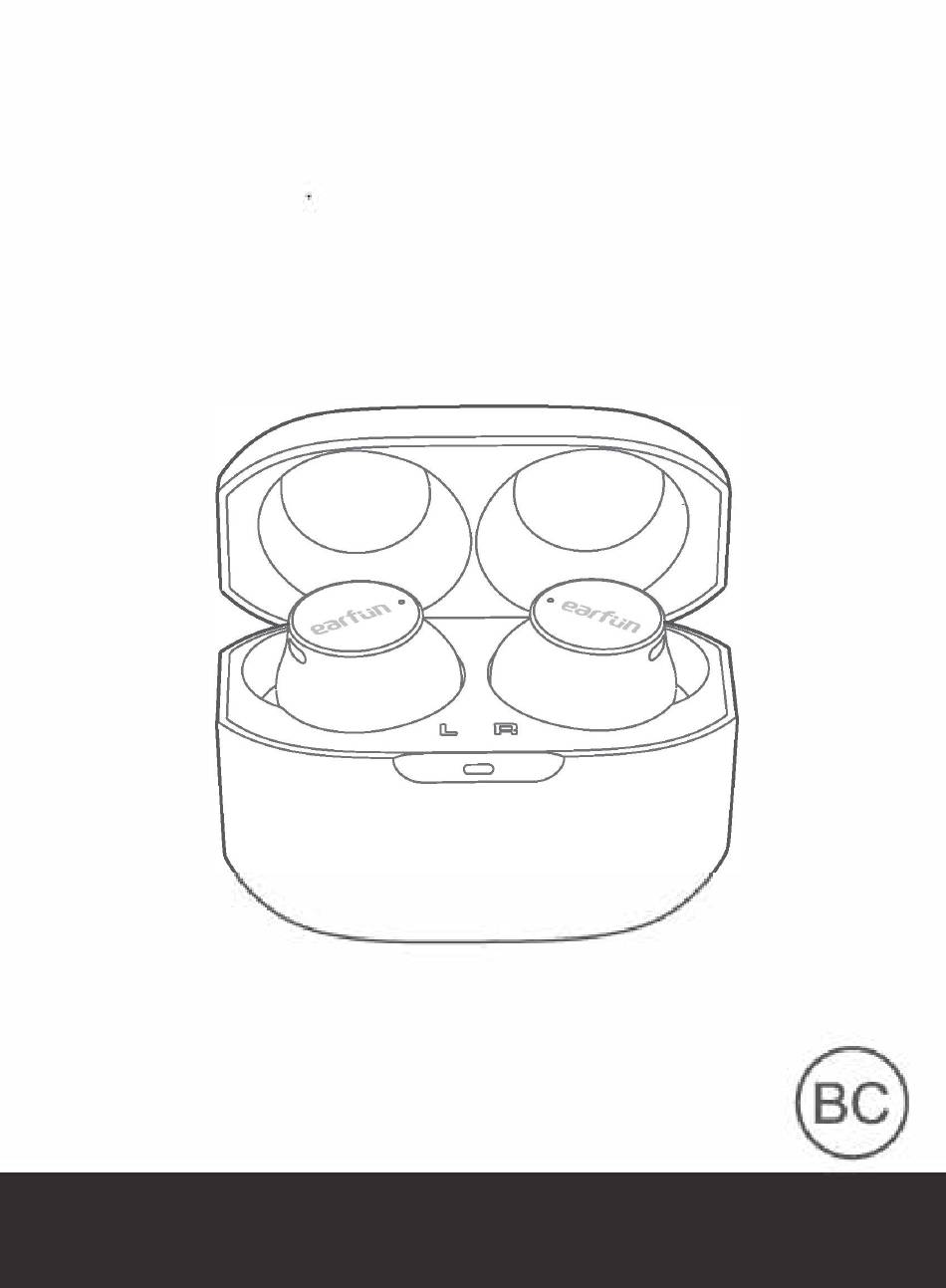

- Page 1 ■ EarFun Free Mini True Wireless Earbuds User Manual...
- Page 3 What's in the Box Ear Ti p s (S, M, L) EarFun Free Mini Charging Case O C) C) O () C) USB-C Cable User Manual Product Diagram @) ® @--B � G)-� (0 . � ® 0 -- -�...
- Page 4 Charging 1. Place earbuds back into the charging case to activate the case battery level LED indicator. 2. Place earbuds back into the charging case and the earbuds will start charging. 3. Fully charge both the earbuds and the charging case before the first-time usage. 4.
- Page 5 Specifications vs.a Bluetooth version Bluetooth frequency 2.402GHz-2.48GHz Bluetooth transmitted power <7dBm A2DP, AVRCP, HFP, HSP Bluetooth profile Maximum working range 15m(without obstacle) 40mAh x 2(earbuds); Battery capacity 470mA(charging case) 1.5 hour(for earbuds); Charging time 2.5 hours(for charging case via USB-C); Up to 5 hours, Totally 24 hours with the charging case;...
- Page 6 Step 2: Activate Bluetooth on your Bluetooth-enabled device and search for other Bluetooth devices. Step 3: Select "EarFun Free Mini" from the list of Bluetooth devices shown (if a password is needed, type '0000'). Notes: •...
- Page 7 Functions Power on/off Open the charging case and pick up the earbuds, the earbuds will automatically power on. Place the earbuds back into the charging case, the earbuds will automatically power off. Power on Power off Note: If the earbuds are not connected to any device, they will automatically power off after 5 minutes for saving the battery life.
- Page 8 --111,,1 Volume up Tap once (R) �R --111, Volume down Taponce(L) Hands free conversation ---G/� Answer/End a call llx2 Tap1wice(L/R) -----{j_ Reject a call Tapaodhol d W 2s for2s(l./R) Transfer two calls llx3 Taptripl e (L/R) ---6)¢© Activate the voice assistant ----@ Voice assistant 'i,_...
- Page 9 2. In power-off mode, touch and hold the button on each earbud at the same time for at least 10 seconds until they flash purple 3 times then earbuds have been reset successfully. 3. Delete the old connection from the Bluetooth device and reconnect "EarFun Free Mini".
- Page 10 To connect the earbuds to your device, please check if the Bluetooth of the device is on at first, then select 'EarFun Free Mini' on the Bluetooth list to get paired. If the earbuds still can't connect to your device, please try to reset it, or contact our customer support.
- Page 11 Q: My earphones will not switch on. A: Please recharge it and make sure it has enough battery power. If it is fully charged and still nothing happens or if you are not able to charge the unit, please contact our customer support for warranty cover.
