acs 1100 d3
2x varithek
–
with 3-sided splash guard
®
acs 600 ec
1x varithek
–

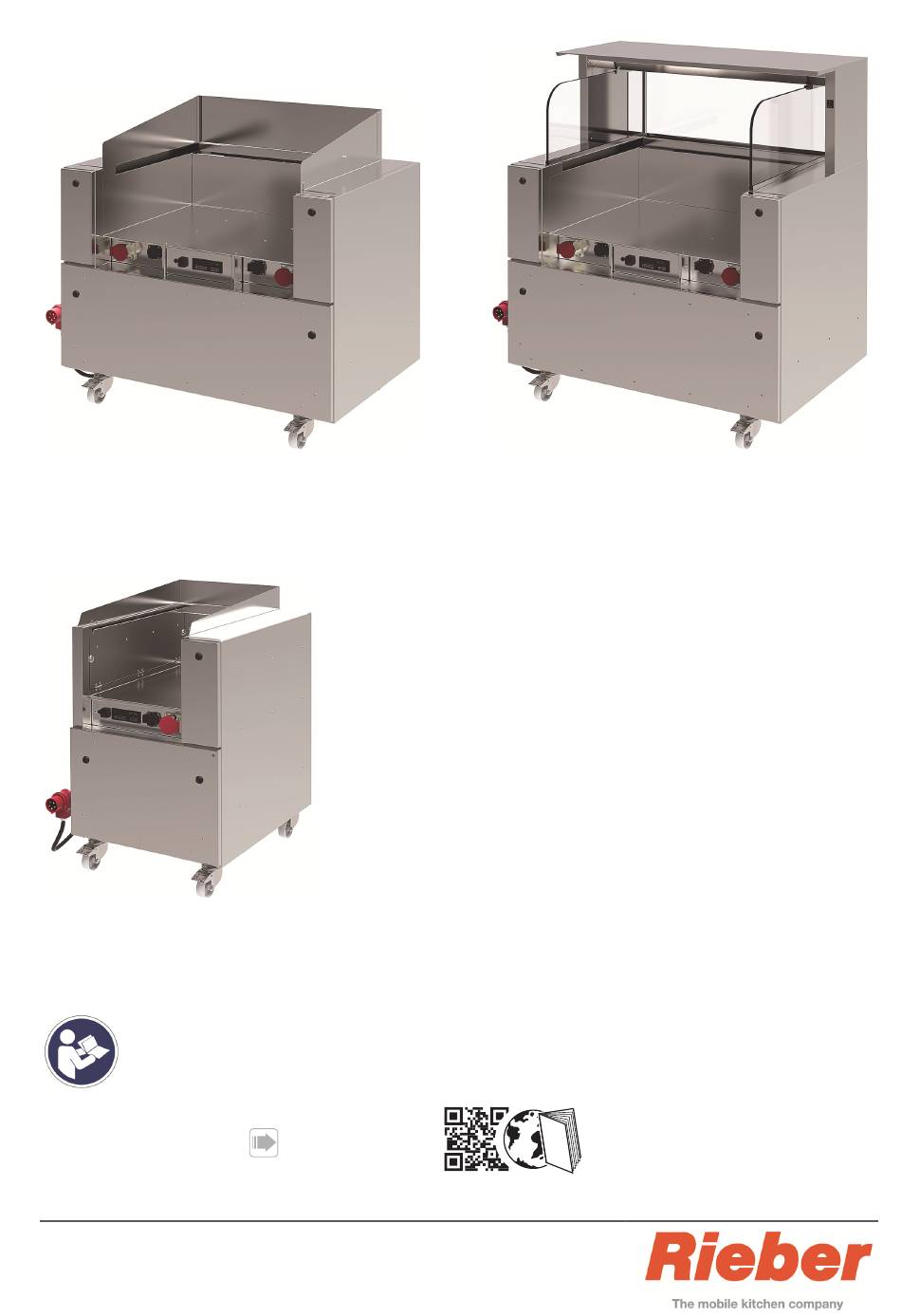

Example variants.
Observe the operating instructions
Translation of the Original Operating Instructions
DOWNLOAD: USER MANUAL
QR code on type plate
Issue: 07/12/2021
acs 1100 d3
attachment - 2x varithek
–
with attachment
acs varithek
air-cleaning-system acs
®
®
EN
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Rieber varithek acs 1100 d3
Summary of Contents for Rieber varithek acs 1100 d3
- Page 1 ® ® acs 1100 d3 2x varithek acs 1100 d3 attachment - 2x varithek – – with 3-sided splash guard with attachment ® acs 600 ec 1x varithek – ® acs varithek Example variants. air-cleaning-system acs Observe the operating instructions Translation of the Original Operating Instructions DOWNLOAD: USER MANUAL QR code on type plate...
-
Page 2: Table Of Contents
Clean side filter unit(s) ............................ 27 Maintain and clean the technical compartment ....................31 Troubleshooting – What now? ........................34 Fault elimination .............................. 34 Disposing of your product ..........................34 Warranty and Liability ........................... 35 10 Manufacturer’s address ..........................35 Rieber GmbH & Co. KG... -
Page 3: Revision Index
Do you wish to have the operating instructions in another language? www.rieber.de Select “→ Customer Service”, at the top of the display bar. • Information on CHECK HACCP www.rieber.de Select “→ Service”, at the top of the display bar. Rieber GmbH & Co. KG... -
Page 4: Representation Conventions In The Text
. Failure to follow these warnings may result in serious bodily injury or even death . CAUTION indicates a potentially hazardous situation . Failure to follow these warnings may result in minor bodily injury . Rieber GmbH & Co. KG... -
Page 5: Safety Instructions And Warnings
Modification of the appliance, for example changing the filter combinations, by the operator is not permitted. • Use correctly sized cooking units, like the cooking modules in the Rieber varithek® range. Baking, grilling, cooking, wok cooking and frying. The relevant operating instructions must be observed. - Page 6 For frying and grilling for intensive periods of time. Strong odours and fumes. • Grease, • Fleece, • Electrostatic, • Plasma, • Active carbon filter NOTE: Included in all filter combinations from Basic to Profi: • High-performance grease separator • Fleece filter mat • Grease drip trays Rieber GmbH & Co. KG...
-
Page 7: Operator's Obligations
The work may only be performed by ‘instructed persons’ . Train the operating personnel for the respective work task; also in accordance with the operating instructions. Check understanding by means of practical implementation. Repeat the instruction at least once a year. Rieber GmbH & Co. KG... -
Page 8: Avoid Risks
► We are not able to rule out the possibility of marks appearing on the floor due to friction with castors or the formation of scratches due to split cracks in the castors, for example. Rieber GmbH & Co. KG... -
Page 9: Instructions On Behaviour In An Emergency
► All interference with the plasma generator is forbidden. ► Seek medical treatment if necessary. Ozone-containing air can trigger complaints. Rieber GmbH & Co. KG... -
Page 10: Description Of The Equipment
Cover with 1x quick release Extraction areas (→ 3-sided extraction of steam and vapour) Sneeze guard attachment, including shelf for serving food. Front sneeze guard glass, removable for cleaning. With lighting. Technical compartment. Cover with 2x quick release Rieber GmbH & Co. KG... - Page 11 6.2 Extraction area → 1-sided extraction of steam and vapours Splash guard, 3-sided from CNS 1.4301 → removable without the use of tools. 10 Cutting board, made of PE, → in place and locked. The cutting board can be removed for cleaning. Rieber GmbH & Co. KG...
-
Page 12: Air Flow, 'Basic' Filter Stage
The exhaust air exits downwards through the active carbon filter. • Active carbon filter → for absorbing odours and pollutants Substances captured by adsorption accumulate in the carbon. Substances to be filtered are physically absorbed by means of the active carbon filter. Rieber GmbH & Co. KG... - Page 13 Grease drip trays → There is a uniform type of grease drip tray. Any residual grease particles collect in the grease drip trays. Fleece filter mat including holder → Particles and suspended matter are filtered out of the air. The exhaust air exits downwards through the active carbon filter. Rieber GmbH & Co. KG...
-
Page 14: Technical Data
Closed on 3 sides, with an inspection flap on the operating side, removable with 2 quick-release fasteners. Low-noise radial fan is arranged on a pull-out bracket, removable without tools. Scope of supply Without system module, without varithek ® appliance(s) Rieber GmbH & Co. KG... - Page 15 1300 mm attachment Placement niche 410 x 737 x 260 mm, 810 x 737 x 260 mm, (L x W x H) approx. Usable depth 220 mm Usable depth 220 mm Weight approx. 98 kg 125 kg Rieber GmbH & Co. KG...
-
Page 16: Unloading From The Pallet, First Commissioning
# Clean the appliance ➢ Clean the appliance thoroughly before using for the first time. Clean with a damp cloth and rub dry with a clean cloth. See ‘Ceaning, maintenance and care’, page 23 ff. Rieber GmbH & Co. KG... -
Page 17: Use
® with thermoplates Example User tip Only use correctly sized cooking units. ► Use cooking modules from the Rieber varithek ® range. Roasting, grilling, cooking, wok cooking and frying. Use ® varithek functional components. ➢ Contact Rieber customer service for assistance. -
Page 18: Ensure Undisturbed Extraction Of Steam And Vapour
‘ ’ ↑ CORRECT ↑ INCORRECT Type ‘ ’ ↑ CORRECT ↑ INCORRECT User tip If the temperature is set too high, fumes and odours can develop. ► Set the temperature to maximum 250 °C. Rieber GmbH & Co. KG... -
Page 19: Electronic Fan Control
Increase ventilation intensity, levels 1 to 4 Display LED display LED fan fault, red = alarm LED plasma fault, red = alarm LED filter usage time exceeded, red = alarm 10 LED OK, green = fault-free Rieber GmbH & Co. KG... - Page 20 TURBO is the highest ventilation intensity level. Adjust TURBO ➢ Press the TURBO button (3). ▌ The fan icon and TURBO appear in the display. ▌ After 5 minutes the fan switches back to the last selected ventilation intensity. Rieber GmbH & Co. KG...
- Page 21 Is the technical compartment closed? ➢ Are the filters in the technical compartment free from objects? ➢ Are the Rieber active carbon filters correctly inserted? ➢ Are the high-performance grease separators, grease drip trays and filter mats correctly mounted in the air supply area? ➢...
- Page 22 ➢ Replace filter mat if necessary. The time intervals for replacing the Rieber active carbon filters are maximum 500 operating hours. Only use the filter type specified in the display. Replace Rieber active carbon filters ➢...
-
Page 23: Ceaning, Maintenance And Care
See attached documents, available via the QR code on your device: Page 3 Choose the correct cleaning method ➢ See attached documents, available via the QR code on your device: Page 3 Source: DGUV regulation 3. Electrical systems and equipment Rieber GmbH & Co. KG... -
Page 24: List Of Activities To Be Performed And Intervals
Disinfect. Please clarify this with your If required hygiene officer. See attached documents, also available via the QR code on your device: Technical documentation for your special design variant, filter technology used including maintenance instructions, customer drawing etc. Rieber GmbH & Co. KG... -
Page 25: Clean Cooking Area, Air Ducts And Splash Guard
To remove the U-profile, push it to the left in the direction of the arrow and remove it on the operator side. ➢ To insert the U-profile, position the profiles on top of each other and then push the U-profile to the right into the operating position. Rieber GmbH & Co. KG... - Page 26 Ceaning, maintenance and care Example ‘ ’ ➢ Ensure exact positioning during assembly; ensure 2x fixing with pin. Example ‘ ’ ➢ For cleaning, open the cover on the left by activating the closures. Rieber GmbH & Co. KG...
-
Page 27: Clean Side Filter Unit(S)
7.6.2 Notes on assembly and disassembly Example ‘ ’ ‘ ’ The illustration shows appliance type as an example. ‘ ’ Appliance type only has a filter unit on the right, 1-sided edge extraction. Rieber GmbH & Co. KG... - Page 28 After opening the quick release fastener of the cover, part positions 1 to 3 can be pulled out at the front, then inspected and cleaned. # Assembly and disassembly may occur in any order There is a left and a right high-performance grease separator; easily distinguishable by the swivel handle for removal. Rieber GmbH & Co. KG...
- Page 29 Grease particles are deposited on the fleece filter mat. If grease stains have formed and the fleece feels greasy, you should replace it immediately. ➢ Dispose of the used fleece filter mat as domestic waste. Order no.: 61 98 05 96 Rieber GmbH & Co. KG...
- Page 30 Ensure that the parts are completely dry and undamaged prior to assembly. ➢ Secure the position of the front cover with the turn-lock fastener. Page 27 ➢ Pay attention to completely assembled, installed parts such as the cutting board /option. Rieber GmbH & Co. KG...
-
Page 31: Maintain And Clean The Technical Compartment
➢ Clean the soiled surfaces of the radial fan with a warm cloth slightly dampened with a mild detergent. After cleaning, rub surfaces dry with a soft cloth. ➢ Install again in the reverse order. Rieber GmbH & Co. KG... - Page 32 The active carbon filter cannot be cleaned. ➢ We recommend replacing the Rieber active carbon filter at least after 500 operating hours. Replace the filters early in the case of unwanted odours.
- Page 33 ➢ Clean the electrode on the plasma generator; at least every 3 000 operating hours. For this, use a scratch-free cloth. Use a little alcohol-based liquid if necessary, then rub dry. Rieber GmbH & Co. KG...
-
Page 34: Troubleshooting - What Now
IMPORTANT Customer service needs information about the type and number of your appliance. ➢ If you have a fault you cannot remedy yourself, please get in touch with your Rieber partner or Rieber central customer services. Disposing of your product Electrical appliances must not be disposed of in the household waste! The appliance is made of high-quality materials, which can be reused or recycled. -
Page 35: Warranty And Liability
• use non-original spare parts. The "Sales and delivery terms and conditions" of Rieber GmbH & Co. KG shall apply for all warranty claims made against the manufacturer. For instance, any repairs and/or overhaul during the warranty period may only be performed by the manufacturer's service department at Rieber, otherwise any arising claims may be voided.
