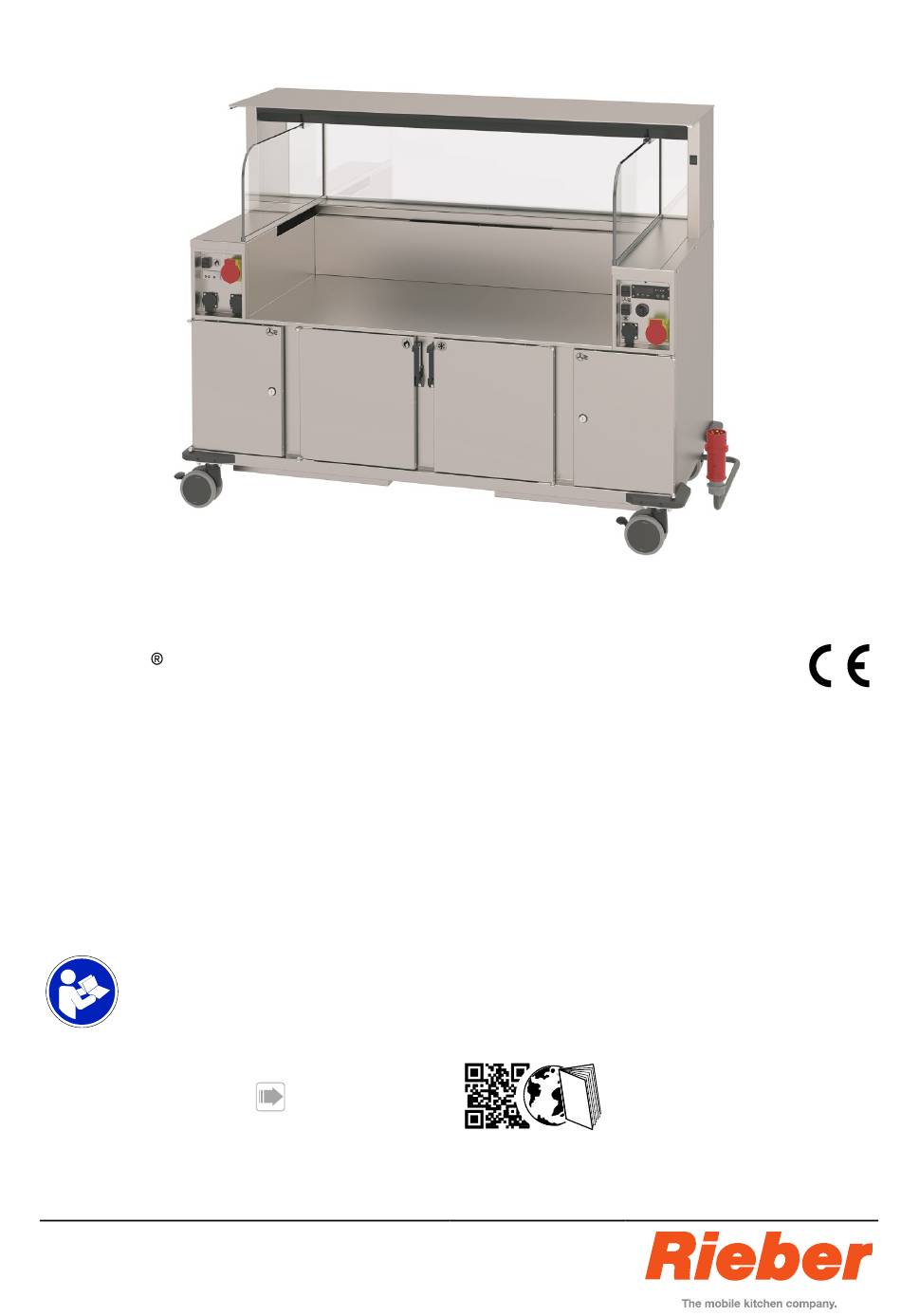

Design example
varithek acs 1600 O
... with digital control
Article no. 91 14 04 07
... acs 1600 03 digital W/K (warm / cold)
Article no. 91 14 04 08
... acs 1600 03 digital W/W (warm / warm)
Article no. 91 14 04 09
... acs 1600 03 digital N/N (neutral / neutral)
Article no. 91 14 04 10
... acs 1600 03 digital N/W (neutral / warm)
Article no. 91 14 04 11
... acs 1600 03 digital K/K (cold / cold)
Article no. 91 14 04 12
... acs 1600 03 digital N/K (neutral / cold)
Mobile unit with integrated extraction and circulating-air cleaning for food delivery
air-cleaning-system acs with patented plasma technology filters steam and vapour so that they are free from odour.
The illustrations show configuration examples, which do not necessarily have to be included in the scope of delivery.
Observe the operating instructions
Translation of the Original Operating Instructions
DOWNLOAD: USER MANUAL
QR code on type plate
Issue: 2019-02-13
3
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the varithek acs 1600 03 digital W/K and is the answer not in the manual?

Questions and answers

Related Manuals for Rieber varithek acs 1600 03 digital W/K

Summary of Contents for Rieber varithek acs 1600 03 digital W/K

  • Page 1 Design example varithek acs 1600 O … with digital control Article no. 91 14 04 07 … acs 1600 03 digital W/K (warm / cold) Article no. 91 14 04 08 … acs 1600 03 digital W/W (warm / warm) Article no.

  • Page 2: Table Of Contents

    Safety information with regard to use ........................ 29 Electronic fan control ............................32 Chilling compartment (option) ..........................36 Warming compartment (optional) ........................37 Use of cooking units (accessories) ........................38 Clean the appliance daily after use ........................38 Rieber GmbH & Co. KG...

  • Page 3: Revision Index

    11 Warranty and liability ............................ 64 12 Excerpt from EC Declarations of Conformity ..................... 64 13 Manufacturer's address ..........................64 Revision Index Revision Change 2017-09-18 First issue 2019-02-13_f1 Seal tightness of housing; Changing the filter is much easier Rieber GmbH & Co. KG...

  • Page 4: Important Information

    Select " Customer Service" at the top of the display list.  The Rieber price guide provides further information about a wide variety of accessories. www.rieber.de At the top of the display list, select: Search  price guide Or: Contact the manufacturer, Rieber, or your dealer ...

  • Page 5: Representation Conventions In The Text

    Failure to follow these warning instructions may cause serious bodily injury or even death. CAUTION indicates a potentially harmful situation. Failure to follow these warnings may cause minor bodily injury. Rieber GmbH & Co. KG...

  • Page 6: Safety Instructions

    Potential risk of fire due to heat build-up. Unwind the cable from the cable drum to prevent a possible heat build-up and/or cable fire. The coupling must have splash protection, must be made of rubber or be rubber-coated. Rieber GmbH & Co. KG...

  • Page 7: Operator's Obligations

     Throughout the period of use of the device the operator must check that the operating instructions which he has compiled comply with the current regulations and adapt them if necessary. Rieber GmbH & Co. KG...

  • Page 8: Personnelqualification Requirements

    Handling refrigerant is only permitted by an expert, such as a refrigeration expert; applies to version with chilling compartment (option).  Any repairs and/or overhaul during the warranty period may only be carried out by the manufacturer´s service department of Rieber. Chapter ‘Warranty and liability’, page 64 Rieber GmbH & Co. KG...

  • Page 9: Provide Protective Equipment For Personnel

    The cable must be routed so that it cannot be squeezed or overheated.  The socket outlet must be easily accessible so that the unit can be disconnected from the power supply at any time. Rieber GmbH & Co. KG...
  • Page 10 Risk of fire due to failure to clean grease-laden active carbon filters, grease drip trays etc. ► Only use with original filter components, which are correctly mounted. ► Clean the appliance correctly. ► Never operate the appliance unsupervised. Rieber GmbH & Co. KG...
  • Page 11 Do not use this appliance with poor floor conditions. We are not able to rule out the possibility of marks appearing on the floor due to friction with castors or the formation of scratches due to split cracks in the castors, for example. Rieber GmbH & Co. KG...
  • Page 12 There is a risk of burning one's hands and arms on hot surfaces of the warming compartment (optional), which can reach temperatures of 110 °C. 110 °C ► Wear personal protective equipment i.e. protective gloves. ► Keep unauthorised persons away from the appliance. ► Never operate the appliance unsupervised. Rieber GmbH & Co. KG...
  • Page 13 All kinds of risks may occur if the wrong cooking accessories are selected.  Only use correctly sized accessories. ®  User tip. The cooking modules in the Rieber varithek range are recommended. Roasting, grilling, cooking, wok cooking and frying. Chapter ‘Use of cooking units (accessories)’, page 38 3.6.7 Warnings concerning the use of the appliance by children ...
  • Page 14 A qualified electrician can technically assess the need for potential equalisation. Have the equipotential bonding carried out by a qualified electrician. See chapter ‘Safety information with regard to use’, page 29 et seqq. Rieber GmbH & Co. KG...

  • Page 15: Ensure Preservation Of The Product Identification

    The product identification of your appliance on the type plate provides important technical data for use and a unique identification, which is necessary for replacement and wearing parts, for example. Safety instructions assist safe handling.  Regularly check that the appliance is correctly identified. Inspect this at least 1x annually. Rieber GmbH & Co. KG...
  • Page 16  The filter mat is blue on the visible side. Order no. 91 70 05 15 Product identification in technical compartment Identification of the active carbon filter: Rieber GmbH & Co. KG...

  • Page 17: Note About Applicable Appliance-Specific Regulations

    All interference with the plasma generator is forbidden. AVERTISSEMENT Dangers pour la santé, problèmes respiratoires ► Utilisez un filtre à charbon actif de Rieber. ► Ne déposez jamais aucun objet sur le filtre. ► N’effectuez acune intervention non autorisée sur le générateur de plasma.

  • Page 18: Instructions On Behaviour In An Emergency

    The cause may be: original Rieber filter was not used; filter incorrectly installed; circulating air is disrupted, or an object is located on the active carbon filter in the technical compartment.

  • Page 19: Purpose

    Prevent any predictable misuse and abuse:  Only use with original filter components, which are correctly mounted.  Use correctly sized cooking units. We recommend the cooking modules in the Rieber ® varithek range. Boasting, grilling, cooking, wok cooking and frying. The relevant operating instructions must be observed.

  • Page 20: Description Of Device

    /removable Connection for equipotential bonding Attachment with spice container (CNS, 3 x GN 1/9), left or right, (accessories) Order no. 91 14 02 55 # Electrical operating and display elements Page23 et seqq. Rieber GmbH & Co. KG...

  • Page 21: Extraction Of Vapour And Steam

    Active carbon filter; 4 pcs. Edge extraction at front left / right and at rear. Active carbon filter. Adsorbed substances accumulate in the carbon. Substances to be filtered are physically absorbed by means of the active carbon filter. Rieber GmbH & Co. KG...
  • Page 22 The plasma generator converts odorous substances into odourless substances. Germs and odour-causing bacteria are also killed in the process. Active carbon filter. Adsorbed substances accumulate in the carbon. Substances to be filtered are physically absorbed by means of the active carbon filter. Rieber GmbH & Co. KG...

  • Page 23: Operating And Display Elements Of The Digital Control

    Description of device Operating and display elements of the digital control (warm / cold) (warm / warm) (neutral / neutral) (neutral / warm) (cold / cold) (neutral / cold) Rieber GmbH & Co. KG...
  • Page 24 CHECK app.  Auto CHECK: Retrofittable or permanently installed sensors, which send data to the database at predefined intervals. Further information: See "Services" under www.rieber.de Please contact Rieber customer service. Rieber GmbH & Co. KG...

  • Page 25: Technical Data

    Rustproof castors In accordance with DIN 18867, part 8. Wheel diameter 125 mm. 4 x swivel castors with parking brake Material Stainless steel 18/10, WN 1.4301 Emission sound pressure ≤ 70 dB(A) level Disposable packaging Rieber GmbH & Co. KG...
  • Page 26 Standard-compliant implementation with subsequent inspection of the system is carried out by a qualified electrician. IEC 60364-5-54:2011; for Germany DIN VDE 0100:540:2012-06 Dimensions Example ® … for maximum three varithek cooking units (with and without system module) Rieber GmbH & Co. KG...

  • Page 27: Before First Use

    Open the transport packaging at the positions provided for this purpose. Do not tear or cut.  Remove any packaging remnants. # Unload appliance from the pallet Transport on a pallet (option); *) Ramp for loading and unloading (option) Rieber GmbH & Co. KG...

  • Page 28: Before Using For The First Time

    Remove protective foils from the warming compartment (optional). # Clean the appliance  Clean the appliance before using for the first time. Clean with a damp cloth and rub dry with a clean cloth. See chapter ‘Cleaning, maintenance and care’, page 39 Rieber GmbH & Co. KG...

  • Page 29: Use

    When working in the area of the warming compartment (optional) there is a risk of burning one's hands and arms on hot surfaces up to 110 °C. 110 °C ► Wear protective gloves. ► Be careful. ► Keep flammable materials away from the product. ► Never operate the appliance unsupervised. Rieber GmbH & Co. KG...
  • Page 30 If only one cooking unit is used, this must also be connected to the equipotential bonding system of the acs. ® If several varithek acs 1600 O appliances are placed next to each other, these should also be connected together, to equalise any difference in voltage (static charge). Rieber GmbH & Co. KG...
  • Page 31 Do not close off at the front with a base, partition or similar. Otherwise aeration and ventilation would be impeded and safe operation would be affected. ► Maintain a minimum distance from walls, to prevent fingers, clothes, etc. from getting caught when putting food in/taking food out. Rieber GmbH & Co. KG...

  • Page 32: Electronic Fan Control

    Increase ventilation intensity, levels 1 to 4 Display LED display LED fan fault, red = alarm LED plasma fault, red = alarm LED filter usage time exceeded, red = alarm 10 LED OK, green = fault-free Rieber GmbH & Co. KG...
  • Page 33 TURBO is the highest ventilation intensity level. Adjust TURBO  Press the TURBO button (3). ▌ The fan icon and TURBO appear in the display. ▌ After 5 minutes the fan switches back to the last selected ventilation intensity. Rieber GmbH & Co. KG...
  • Page 34 Is the technical compartment closed?  Are the filters in the technical compartment free from objects?  Are the Rieber active carbon filters correctly inserted?  Are the high-performance grease separators, grease drip trays and filter mats correctly mounted in the air supply area? ...
  • Page 35  Replace filter mat if necessary. The time intervals for replacing the Rieber active carbon filters are no more than 500 operating hours. Only use the filter type specified in the display. Replace Rieber active carbon filter ...

  • Page 36: Chilling Compartment (Option)

    To change the set temperature, keep the SET button pressed and use buttons (1) and (2) to edit the value. ▌ The adjusted value is saved automatically. User tip ® ► Use Gastronorm containers and thermoplates from Rieber. Rieber GmbH & Co. KG...

  • Page 37: Warming Compartment (Optional)

    ► Be careful.  Switch the appliance OFF after use at the ON / OFF switch and turn the dial to the OFF position. User tip ® ► Use Gastronorm containers and thermoplates from Rieber. Rieber GmbH & Co. KG...

  • Page 38: Use Of Cooking Units (Accessories)

    Use only one deep-fryer per unit, otherwise odours may arise. Use the multipurpose cooking unit  "Pasta cooker 4.0 | Deep-fryer 4.0" from Rieber Order no.: 91 10 01 05 # Observe the rules for selecting and using the cooking units ...

  • Page 39: Cleaning, Maintenance And Care

    Only use with Rieber active carbon filters, which are correctly mounted. ► Do not interfere with the extraction and circulating-air cleaning: Do not place any objects on the Rieber active carbon filter in the technical compartment. Only operate with a dry Rieber active carbon filter. ►...
  • Page 40 Risk of fire due to missing or incorrectly mounted filter components or lack of cleaning. ► Only use with original filter components and grease drip trays, which are correctly fitted. ► Clean the filter components in the extraction area daily after use. Rieber GmbH & Co. KG...

  • Page 41: Cleaning Agents For Stainless Steel

    Long-term exposure to sodium hypochlorite can cause damage to the material. It should not be used if possible. Products should be used, which are specified in the list of the German Society of Hygiene and Microbiology (DHGM). Rieber GmbH & Co. KG...

  • Page 42: Choose The Correct Cleaning Method

    A mild washing up detergent diluted in hot water is ideal. Wipe the surfaces with a damp, non-scratch cloth. After cleaning, rub the surfaces dry with a soft cloth. ‘Cleaning agents for stainless steel’, page 41 Rieber GmbH & Co. KG...
  • Page 43 Cleaning, maintenance and care User tip ► We recommend Rieber cleaning agent for stainless steel for cleaning stainless steel. ▌ It is an especially thorough yet gentle cleaner, produces a dazzling shine, and cleans and protects in one. Order no.: 72 10 24 08 # Clean and service plastic parts →...

  • Page 44: Overview Of Maintenance Measures And Intervals

    Risk of fire Every 14 working days or Page 59 Clean ventilation grille on the 'chilling every 2 weeks compartment' (option) Completely replace Rieber active carbon After at least 500 hours of Page 57 filter operation Replace CHECK sensor battery...

  • Page 45: Clean Cooking Area And Splash Guard

    User tip. Place an adequately large, soft surface in the cooking area for placing the parts to be cleaned. 8.5.1 Clean air ducts The cover of the air ducts is fixed with pins at the bottom left and clipped in at the top. Rieber GmbH & Co. KG...
  • Page 46 To remove the U-profile, push it to the left in the direction of the arrow and remove it on the operator side.  To insert the U-profile, position the profiles on top of each other and then push the U-profile to the right into the operating position. Rieber GmbH & Co. KG...
  • Page 47 When inserting the part after cleaning, ensure that it is fixed with the pins on both sides simultaneously. # Note on cleaning  Clean the casing and air ducts with a hot, mild detergent diluted in water. After cleaning, rub surfaces dry with a soft cloth. Rieber GmbH & Co. KG...
  • Page 48 Ensure correct positioning and condition of the plastic profiles, replace if necessary; Order no. 37160605 /bulk goods # NOTE  Only re-install the splash guard after cleaning the side edge extraction units. Chapter ‘Insert the parts again’, page 52 Rieber GmbH & Co. KG...

  • Page 49: Clean High-Performance Grease Separator, Grease Drip Trays

    Place the part on the prepared surface. # Remove high- performance grease separator  Grasp the front filter centrally at the handle strip, tilt the part and pull it out vertically upwards.  Repeat with the rear filter. Rieber GmbH & Co. KG...
  • Page 50  Repeat with the rear grease drip tray. Slide forward around 10 cm first of all. # Remove filter mat  Grasp the filter mat centrally and pull it out. Rieber GmbH & Co. KG...
  • Page 51 Order no. 91 70 05 15 # Clean inside of appliance  Clean with a hot, mild detergent diluted in water, using a slightly damp cloth.  After cleaning, rub surfaces dry with a soft cloth. Rieber GmbH & Co. KG...
  • Page 52  Then push it back as far as it will go.  Insert the other grease drip tray at the front. Rieber GmbH & Co. KG...
  • Page 53  Make sure that the grease separators are positioned flush. # Install cover  ATTENTION Do not scratch the surface.  Install the cover. Make sure it is firmly in place. Rieber GmbH & Co. KG...

  • Page 54: Inspect Technical Compartments And Clean As Required. Clean Plasma Generator

    The steam and vapour extracted by the radial fans, which contain grease in addition to water vapour, are also deposited on the surfaces.  Inspect the condition, such as greasy surfaces. Do this by touching several points on the stainless steel surfaces with your finger and feeling it. Rieber GmbH & Co. KG...
  • Page 55 After cleaning, rub surfaces dry with a soft cloth.  The sealing frames of the doors can be removed for cleaning. # Note on basic cleaning The fan unit must be removed for this purpose. See page 56 Rieber GmbH & Co. KG...
  • Page 56 See previous image. Pull the fan unit forward.   Clean the diode on the plasma generator; For this, use a scratch-free cloth. Use a little alcohol-based liquid if necessary, then rub dry. Rieber GmbH & Co. KG...

  • Page 57: Inspect/Replace Active Carbon Filter

    The active carbon filter cannot be cleaned. Allow wet active carbon filter to dry in dry ambient air; not in the oven or dryer.  WARNING Leave the active carbon filter dry, keep away from moisture. Rieber GmbH & Co. KG...

  • Page 58: Replace The Check Sensor Battery (Optional)

    Replace the CHECK sensor battery (optional) Temperature sensor in compartment door (optional) 1 x Mignon battery AA, 1.5 V Batteries may not be disposed of in general waste and may not end up in the environment. Rieber GmbH & Co. KG...

  • Page 59: Clean Chilling Compartment (Option)

    Risk of fire Fluff may ignite on hot parts in the chilling compartment. ► Make sure there is no fluff. Use a powerful vacuum cleaner to remove the fluff from the ventilation grille underneath the appliance. Rieber GmbH & Co. KG...

  • Page 60: Clean Warming Compartment (Optional)

    8.15 Keep ready for next use in dry condition  Dry the inside of the appliance and leave the door open until the residual moisture has dried off.  Store appliance at room temperature. Rieber GmbH & Co. KG...

  • Page 61: Troubleshooting - What Now

    ► Any interference in the ‘plasma generator’ is forbidden, as considerable health risks can arise. Any repairs during warranty period may only be carried out by the Rieber service department. Please contact the manufacturer's service department at Rieber. Fault Possible cause Possible remedy ...

  • Page 62: Disposing Of Your Product

    IMPORTANT Customer service needs information about the type and number of your appliance.  If you have a fault you cannot remedy yourself, please get in touch with your Rieber partner or Rieber central customer services. Disposing of your product Your appliance is made of high-quality material which can be reused / recycled.

  • Page 63: Index

    ..14, 30 Troubleshooting ..61 Extraction ..10, 21 Warming compartment ..37, 60 Fan control ..32 Rieber GmbH & Co. KG...

  • Page 64: Warranty And Liability

     do not use original spare parts. The "Sales and delivery terms and conditions" of Rieber GmbH & Co. KG shall apply for all warranty claims made against the manufacturer. For instance, any repairs and/or overhaul during the warranty period may only be performed by the manufacturer's service department of Rieber, failing which any claims hereof may be voided.
