Summary of Contents for Wolfbox i17
- Page 1 Dash Cam i17 User Manual...
- Page 3 IC warning: This device contains licence-exempt transmitter(s)/receiver(s)/ that comply with Innovation Science and Economic Development Canada's licence-exempt RSS(s). Operation is subject to the following two conditions: 1. This device not cause interference. 2. This device must accept any interference, including interference that may cause undesired operation of the device.
- Page 4 INTRODUCTION PRE-CAUTIONS APPEARANCE ABOUT THE MICRO SD CARD INSTALLATION HOME SCREEN POWER ON/OFF MENU SETTINGS PLAY ON CAMERA PLAY ON APP PLAY ON PC TROUBLE SHOOTINGS PRODUCT SPECIFICATIONS...

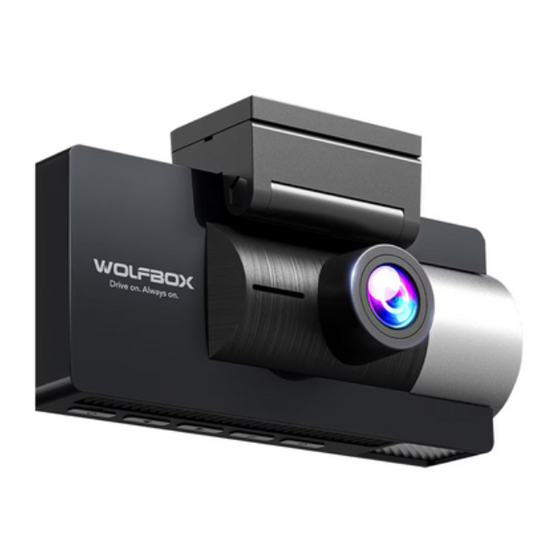

- Page 5 INTRODUCTION Thank you for purchasing the WOLFBOX i17 Dash Cam.This product is a front inside and inside 3-channel dash cam that offers a 150° front camera, a 160° inside camera, and a 155° rear camera. it can simultaneously monitor the front rear and interior of your vehicle and provides a top 4K 2160P resolution front camera, 1080P inside camera, and a 1080P rear camera, protecting you from potential accidents and liability issues.
- Page 6 Please check the dash cam and all the accessories before installation. If you need someone to help with installation, please check the function first, so as to prevent the loss caused by the cam after installation. Please use original accessories provided in the package, just in case of compatible issues after using the non-original.
- Page 7 APPEARANCE IPS Screen In-Car camera GPS built-in bracket Rotate to adjust the In-Car camera image Rear Camera input terminal(AV-IN) Type-C Power port TF Card slot Front Camera Power button Menu button Left button Right button OK button Rear camera NOTE: When inserting the rear camera cable, please insert it firmly to ensure that the circuit is unobstructed, so that the rear camera can detect.
- Page 8 About the Micro SD Card When using a new Micro SD card, be sure to format it. Do not remove or insert a Micro SD card while the power is on. Use a Micro SD card with Class 10 or higher (32GB-512GB). 64GB card is included in package.
- Page 9 Installation When you use the dash cam for the first time, the dash cam comes with factory default settings and you do not need to set it manually. NOTE ： Format SD before using! Please refer to page 5 for SD card settings. How to install the main body 1.
- Page 10 2. Make sure to clean your windshield from the dust particles and attach the electrostatic sticker to the windshield. 3. Peel off the tape attached to the GPS built-in bracket and attach it on the electrostatic sticker. About electrostatic Sticker Since the adhesive strength is strong on both sides and it is difficult to peel off once it is pasted, it will be troublesome if it is pasted in the wrong place.
- Page 11 To avoid any potential issues with the device, please only use WOLFBOX's Car Charger. Using any other charger may result in frequent reboots or LCD flickering due to insufficient...
- Page 12 How to install the rear camera In the package is the in-car rear camera which is mounted on the car rear windshield. 1. Fix camera with adhesive Find a best location, tear off the adhesive on the rear camera, fix the rear camera on car rear windshield.(The rear camera can be rotated 360°.For easier installation, please find the correct position first, and then adjust the rear camera angle before fixing it.)
- Page 13 3. Route your rear camera's power cable to the front of the car. If you'd like, use a trim removal tool to pop out the headlining panel directly above your windshield. Then, run your cable through the exposed chamber. 4. Power on the dash cam with box included car charger,don't charge it with your own chargers.
- Page 14 HOME SCREEN WHAT DOES IT MEAN? ICONS WHAT DOES IT MEAN? ICONS Recording Sound record is on Emergency recording is on TF card is inserted Date and Time GPS is on Resolution Videos Photograph Emergency recording Settings Press"OK" button to switch screen...
- Page 15 Power ON/OFF <Power ON> "When the cigar power adapter is connected and the engine is turned on (ACC on), the power will automatically turn on and the opening screen will be displayed." Press and hold the power button to turn off the power during startup, and then briefly press the power button again to turn on the power of the unit and display the opening screen.
- Page 16 NOTE ： Please confirm whether your cigar power port is ACC. (if the cigarette lighter is still charged after the car is turned off, please use the hardwire kit or unplug the car charger after the car is turned off, otherwise it may exhaust your car's power supply. ) (Note: This happens in some Ford/Audi cars, and electric cars).
- Page 17 Resolution Choose the resolution according to the needs * Front: 4K + Inside: 1080P + Rear: 1080P * Front: 2.5K + Inside: 1080P + Rear: 1080P...
- Page 18 Loop Record Choose the recording duration for your videos. Q: Why is every video recording so short? A: We set the recording interval of each video to 1min/3min/5min.This is for the convenience of finding the locked video later.The main function of the recorder is to record, especially to record emergency video.
- Page 19 Screen Saver If you want to use it as a review mirror, please turn on the screen saver.
- Page 20 System setting Find more personalized setting. Inside Image Switch NOTE: The ''Inside Image Switch'' function must be turned on to use the internal camera normally. [It is turned on by default after receiving it. If you don't want to use it, you can choose to turn it off]...
- Page 21 G-sensor Adjust the sensitivity of G-sensor, which is recommended to adjust to Low. After turning on the G-Sensor, the dash cam will lock the video when it detects bumps while driving. NOTE ： Recommended to adjust to Medium/Low...
- Page 22 Parking Monitor Avaliable when the hardwire kit is connected. Hardwire kit for parking mode is not included in the package and need to be purchased separately. Mode 1: Time-Lapse Video: 12H/24H Turn on “12H Time-lapse Video” or “24H Time-lapse Video”, After the car engine is off, the camera will turn off automatically, and prompt "Disconnect ACC, time-lapse Video begins"...
- Page 23 Mode 2: G-Trigger Recording Turn on “G-Trigger Recording” . After the car engine is off, the camera will turn off automatically, and prompt " Disconnect ACC, trigger recording begins " on the screen. The camera will turn on and start recording automatically when there’s collision or vibration detected and the video file will be locked.
- Page 24 Flip Vertically Flip Horizontally...
- Page 25 Play On Camera Enter Playback here. Front/Inside/Rear Video Front video name ends with F, In-car video name ends with I; Rear video name ends with R. You can scroll up or down to select a video to play, or you can delete a video.
- Page 26 With the 'Wolfbox' app, which is available for free, you can easily view, download and share your videos with your friends and family from your smartphone. This app also enables you to control the WLAN built-in drive recorder directly from your mobile device."...
- Page 27 Turn on the WIFI. The WIFI name and WIFI password will appear on the screen. 3. Connect WIFI Now simply join the i17 WIFI by going into your iPhone or Android phone’s Settings > WiFi > i17 WiFi. Then enter the default password:12345678 to join the network.
- Page 28 For iPhone If you get this pop up for your iPhone while using WiFi feature, make sure to tap on "ALLOW" or "OK"...
- Page 29 NOTE: Once you connect to i17, it will come up on your phone, "No internet", which is fine. Keeping the connection and use the App normally. When connected to WIFI,the dash cam can only be operated by phone. Please CONTACT US if you need any help.
- Page 30 Check/Play data on APP You can check and play the video by pressing “ ” on the recording screen to enter the data file list. On the data file screen, you can select a file to play, download, take a screenshot of, or delete. Once downloaded, you can easily share it on social media platforms like Facebook, WeChat, Line, and others.
- Page 31 FAQ about WIFI&App What is the range of the WiFi signal? The WiFi signal range is approximately 10 feet when there are no obstructions in the way. Please note that, just like your home WiFi network, you cannot expect the WiFi signal to extend beyond the 10-foot range from this small device.
- Page 32 Thank you for your support and understanding Play on PC If you need to track GPS information, please download the dedicated player, the download link as follows: Wolfbox Player: https://wolfbox.com/gps-player/ Use this player to track the speed and location information.
- Page 33 You can try checking the following: • To test whether the i17 dash cam is working normally, please unplug the TF card and GPS bracket, and use the car charger to supply power.
- Page 34 • If the dash cam is working normally, the problem may be with the car charger cable. In this case, please let us know your address so we can send you a new car charger. If the dash cam still does not work, please connect the other accessories one by one and check if the camera works normally.
- Page 35 Please lower the G-Sensor setting. This setting depends on how much vibration your car/truck is creating based on its suspensions and road conditions. 6. Why does the camera get hot? It is normal for your camera to run slightly hot. NOTE: The operation video of i17 dash cam will be posted on www.wolfbox.com/faq...
- Page 36 Product Specifications Front Camera F2.0 In-Car Camera F1.8 Model Aperture Rear Camera F2.0 Front Camera 30fps Display In-Car Camera 30fps Frame rate 3 inches IPS Rear Camera 25fps 512GB Max, Class 10 Above Operating TF Card Class 10 or above, max support 512GB temperature Working voltage DC 5V...
- Page 37 ONE YEAR LIMITED WARRANTY We are committed to giving customers the best product experience and after-sale service. We would like to provide One full year of limited warranty for your product to be free from defects in materials and craftsmanship. Please CONTACT US with your online order, and we will provide free replacement and lifetime technical support.
- Page 38 Check us out here! We have professional customer service! E-mail: service@wolfbox.com Phone: +1 888 296 8399...
