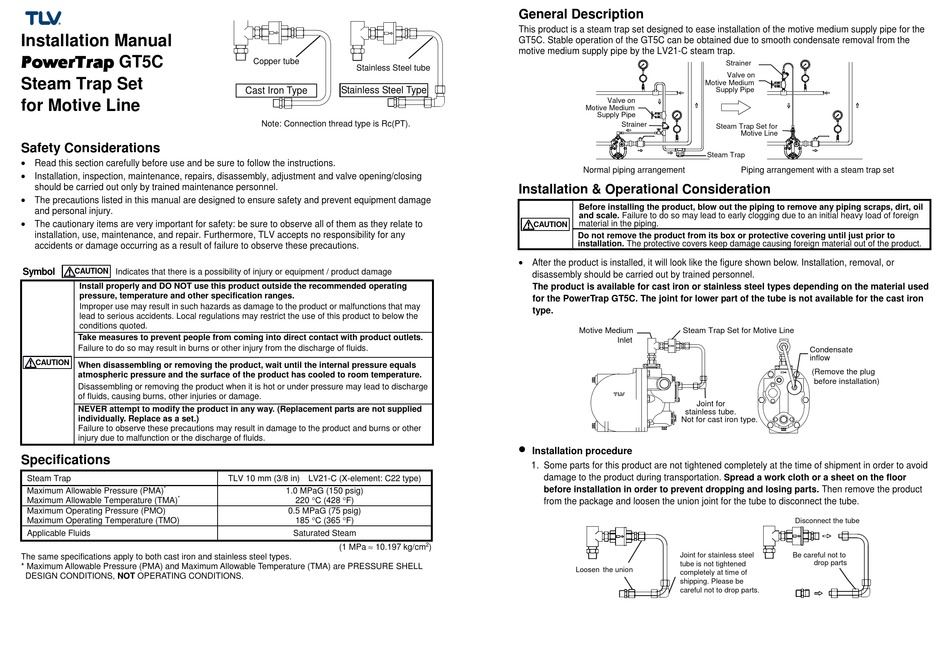

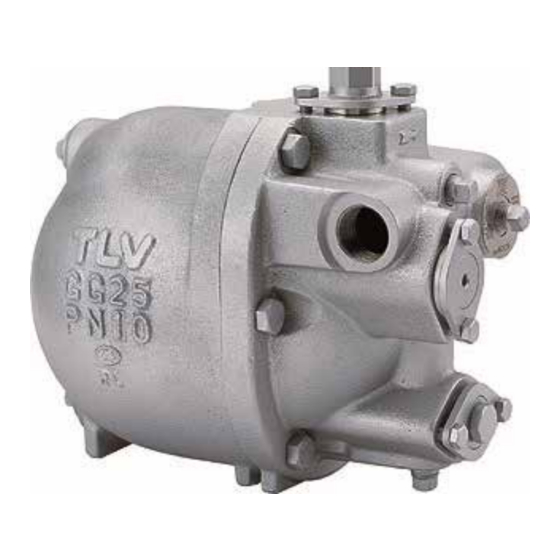

TLV PowerTrap GT5C Installation Manual

Installation Manual
PowerTrap GT5C
Steam Trap Set
for Motive Line
Safety Considerations

Read this section carefully before use and be sure to follow the instructions.

Installation, inspection, maintenance, repairs, disassembly, adjustment and valve opening/closing
should be carried out only by trained maintenance personnel.

The precautions listed in this manual are designed to ensure safety and prevent equipment damage
and personal injury.

The cautionary items are very important for safety: be sure to observe all of them as they relate to
installation, use, maintenance, and repair. Furthermore, TLV accepts no responsibility for any
accidents or damage occurring as a result of failure to observe these precautions.
Symbol CAUTION Indicates that there is a possibility of injury or equipment / product damage
Install properly and DO NOT use this product outside the recommended operating
pressure, temperature and other specification ranges.
Improper use may result in such hazards as damage to the product or malfunctions that may
lead to serious accidents. Local regulations may restrict the use of this product to below the
conditions quoted.
Take measures to prevent people from coming into direct contact with product outlets.
Failure to do so may result in burns or other injury from the discharge of fluids.
CAUTION
When disassembling or removing the product, wait until the internal pressure equals
atmospheric pressure and the surface of the product has cooled to room temperature.
Disassembling or removing the product when it is hot or under pressure may lead to discharge
of fluids, causing burns, other injuries or damage.
NEVER attempt to modify the product in any way. (Replacement parts are not supplied
individually. Replace as a set.)
Failure to observe these precautions may result in damage to the product and burns or other
injury due to malfunction or the discharge of fluids.
Specifications
Steam Trap
*
Maximum Allowable Pressure (PMA)
*
Maximum Allowable Temperature (TMA)
Maximum Operating Pressure (PMO)
Maximum Operating Temperature (TMO)
Applicable Fluids
The same specifications apply to both cast iron and stainless steel types.
* Maximum Allowable Pressure (PMA) and Maximum Allowable Temperature (TMA) are PRESSURE SHELL
DESIGN CONDITIONS, NOT OPERATING CONDITIONS.
Copper tube
Stainless Steel tube
Stainless Steel Type
Cast Iron Type
Note: Connection thread type is Rc(PT).
TLV 10 mm (3/8 in) LV21-C (X-element: C22 type)
1.0 MPaG (150 psig)
220 C (428 F)
0.5 MPaG (75 psig)
185 C (365 F)
Saturated Steam
(1 MPa  10.197 kg/cm
General Description
This product is a steam trap set designed to ease installation of the motive medium supply pipe for the
GT5C. Stable operation of the GT5C can be obtained due to smooth condensate removal from the
motive medium supply pipe by the LV21-C steam trap.
Motive Medium
Supply Pipe
Normal piping arrangement
Installation & Operational Consideration
Before installing the product, blow out the piping to remove any piping scraps, dirt, oil
and scale. Failure to do so may lead to early clogging due to an initial heavy load of foreign
material in the piping.
CAUTION
Do not remove the product from its box or protective covering until just prior to
installation. The protective covers keep damage causing foreign material out of the product.

After the product is installed, it will look like the figure shown below. Installation, removal, or
disassembly should be carried out by trained personnel.
The product is available for cast iron or stainless steel types depending on the material used
for the PowerTrap GT5C. The joint for lower part of the tube is not available for the cast iron
type.
Motive Medium

Installation procedure
1. Some parts for this product are not tightened completely at the time of shipment in order to avoid
damage to the product during transportation. Spread a work cloth or a sheet on the floor
before installation in order to prevent dropping and losing parts. Then remove the product
from the package and loosen the union joint for the tube to disconnect the tube.
2
)
Loosen the union
Strainer
Valve on
Motive Medium
Supply Pipe
Valve on
Strainer
Steam Trap Set for
Motive Line
Steam Trap
Piping arrangement with a steam trap set
Steam Trap Set for Motive Line
Inlet
Joint for
stainless tube.
Not for cast iron type.
Joint for stainless steel
tube is not tightened
completely at time of
shipping. Please be
careful not to drop parts.
Condensate
inflow
(Remove the plug
before installation)
Disconnect the tube
Be careful not to
drop parts
