COMPLETE INSTRUCTION MANUAL

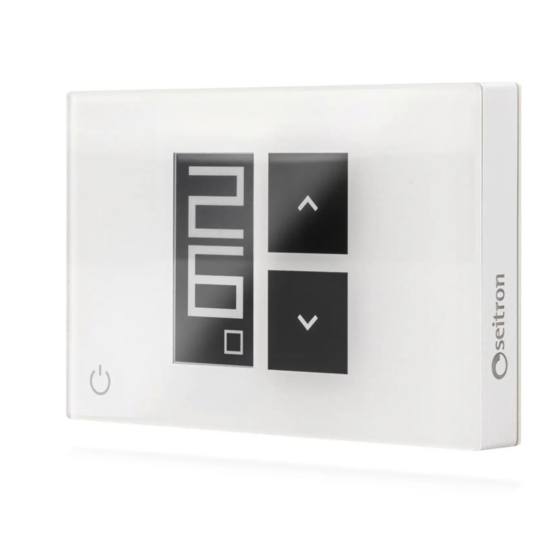

wi-time wall
Weekly Wi-Fi Programmable Thermostat

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the wi-time wall and is the answer not in the manual?

Questions and answers

Related Manuals for Seitron wi-time wall

Summary of Contents for Seitron wi-time wall

  • Page 1 COMPLETE INSTRUCTION MANUAL wi-time wall Weekly Wi-Fi Programmable Thermostat...

  • Page 3: Table Of Contents

    INDICE WIRING DIAGRAM PROGRAMMABLE THERMOSTAT-APP PAIRING UNPAIRED APP-PROGRAMMABLE THERMOSTAT OPERATION DISPLAY VISUALIZATION STARTUP OPERATION LOGIC SETTING HEATING/COOLING MODE AMBIENT TEMPERATURE REGULATION MODE Program “ “ Temporary manual mode “ ” Manual mode “ ” Antifreeze “ “ SETPOINT TEMPERATURE SETTING FOR MANUAL MODES BOOST SWITCHING OFF ANTIFREEZE FUNCTION...
  • Page 4 GCW03MR001SE 040088 230922...

  • Page 5: Wiring Diagram

    WIRING DIAGRAM The programmable thermostat wi-time wall can be powered at 85..264 V 50..60 Hz. The L and N terminals power the programmable thermostat at 85..264V and are to be connected to the mains voltage with the neutral on the terminal N. Terminals 1, 2 and 3 are the contacts, voltage free, type SPDT of the output relay.

  • Page 6: Programmable Thermostat-App Pairing

    WARNING - When the wi-time wall is not paired with the App, the only available room temperature control modes are manual and antifreeze. - If “temporary manual” mode is selected, the programmable thermostat will carry out temperature adjustment in the same way as “permanent manual”...

  • Page 7: Startup

    In “heating” mode, when the room temperature detected by the internal sensor (or alternatively by the remote probe if connected), is lower than the set temperature (by program or manually), wi-time wall activates the relay to start the boiler and the display shows the icon “...

  • Page 8: Antifreeze

    This mode is only activable using the Seitron Smart APP. By activating this mode, the wi-time wall programmable thermostat forces the cooling or heating system ON (depending on the active setting) for a time selectable between 30, 60 or 90 minutes regardless of the setpoint temperature. This function is useful if you have to heat or cool a particularly cold or hot environment.

  • Page 9: Modbus

    MODBUS The wi-time wall can be connected to a home automation control unit with which it will communicate via RS485 bus, with MODBUS® RTU protocol. In this way, both relay output status and proportional status can be read to perform proportional (modulating) control.

  • Page 10: Advanced Configuration

    Using this parameter, it is possible to correct the temperature detected by the temperature sensor inside the wi-time wall programmable thermostat or by the remote sensor if connected to the wi-time wall, by ±5°C so as to correct any systematic reading errors due to placement of the wi-time wall programmable thermostat/remote sensor in areas unsuitable for detecting room temperature.

  • Page 11: P04: Prop Band (Proportional Band)

    Adjusts the minimum temperature that can be set in normal operation using the “ “ and “ “, buttons when the wi-time wall programmable thermostat is set in “Heating” mode and can be set between 5.0 °C and 40.0 °C.

  • Page 12: P10: Modbus Id (Modbus® Id Setting)

    “ key to select the next parameter or wait 15 sec. without pressing any key. P10: MODBUS ID (MODBUS® ID Setting) The parameter allows the MODBUS® address of the wi-time wall programmable thermostat to be set. The device leaves the factory with the parameter set to 2.

  • Page 13: Technical Features

    TECHNICAL FEATURES Power supply: 85 .. 264 V~ 50 .. 60 Hz Power absorption: <2 W Contact rating: 3A 250V~ SPDT Communication port: MODBUS® RTU Frequency: 2.4 .. 2.5 GHz Modulation: DSSS / OFDM / MIMO-OFDM Max. RF power transmitted: <100 mW Type of antenna: Internal...

  • Page 14: Dimensions

    DIMENSIONS WARRANTY In the view of a constant development of their products, the manufacturer reserves the right for changing technical data and features without prior notice. The consumer is guaranteed against any lack of conformity according to the European Directive 2019/771/UE as well as to the manufacturer’s document about the warranty policy.
  • Page 16 SEITRON S.p.A. a socio unico Via del Commercio, 9/11 36065 - Mussolente (VI) ITALY +39 0424 567 842 - info@seitron.it - www.seitron.com...
