Seitron wi-time Quick Manual

Technical features

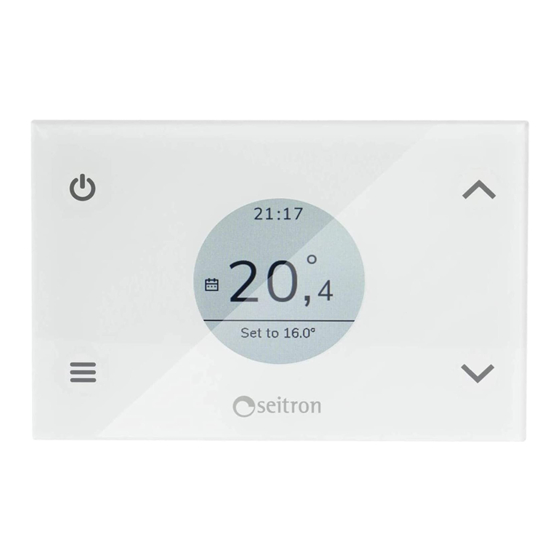

Type: Semi-recessed programmable thermostat
Available Colors: Black or White
Display: color TFT
Power supply: 100..253Vac 50..60Hz
Power absorption: less than 2W
Relay contacts ratings: max 5A @250V
Wifi: 802.11 b/g/n
Temperature adjustment range: +5.0..+40.0 °C (±0.1)
Operation mode heating/cooling
Weekly or manual programming (temporary or permanent)
No-frost function
Settable Boost via App only (30-60-90 minutes)
Predisposition for a remote temperature sensor
Clock with buffer battery set via web
Protection rating: IP 30
Size: 122x82x15 mm
Go to www.seitron.it for download instruction manual
App Android and iOS for Smartphone
Seitron Smart
Temperatura sotto controllo
Temperature under control
WARRANTY
In the view of a constant development of their products, the manufacturer reserves
the right for changing technical data and features without prior notice. The consumer is
guaranteed against any lack of conformity according to the European Directive 1999/44/
EC as well as to the manufacturer's document about the warranty policy. The full text of
warranty is available on request from the seller.
Touch buttons functionalities
Display icons
GIW01MR001SE 033296 141019
Long push (at least 1 sec.): ON/OFF
Brief push: returns to the previous menu
Temperature decrease,
Moving down with the cursor
Heating mode On
Cooling mode On
Permanent Manual Mode
Temporary Manual Mode (until 24)
Program mode
Menu, Option selection
Temperature increase,
Moving up with the cursor
WiFi connected
WiFi disabled
(blinking icon)
Thermostat not connected to cloud
Device in configuration mode:
waiting for pairing
Tamper Proof mode On
