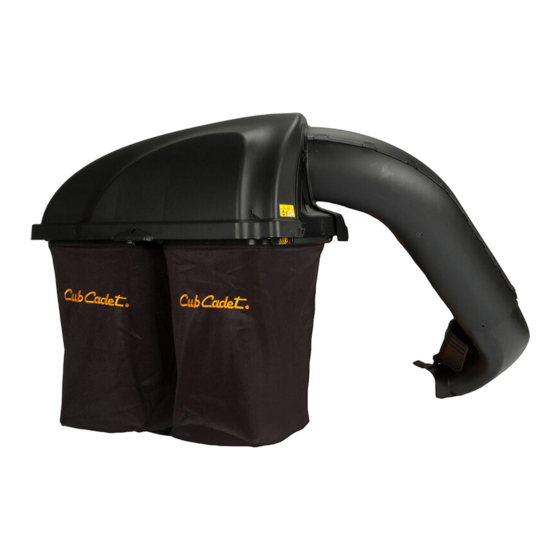

Twin Rear Bagger - Model No. 19A70006100
WARNING
READ AND FOLLOW ALL SAFETY RULES AND INSTRUCTIONS IN THIS MANUAL
BEFORE ATTEMPTING TO OPERATE THIS MACHINE.
FAILURE TO COMPLY WITH THESE INSTRUCTIONS MAY RESULT IN PERSONAL INJURY.
CUB CADET LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019
Printed In USA
FORM NO. 769-04709
2/09/09
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Cub Cadet 19A70006100
Summary of Contents for Cub Cadet 19A70006100
- Page 1 READ AND FOLLOW ALL SAFETY RULES AND INSTRUCTIONS IN THIS MANUAL BEFORE ATTEMPTING TO OPERATE THIS MACHINE. FAILURE TO COMPLY WITH THESE INSTRUCTIONS MAY RESULT IN PERSONAL INJURY. CUB CADET LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019 Printed In USA FORM NO. 769-04709...
-
Page 2: Table Of Contents
Visit us on the web at www.cubcadet.com ◊ Call a Customer Support Representative at (800) 965-4CUB ◊ Locate your nearest Cub Cadet Dealer at (877) 282-8684 ◊ Write us at Cub Cadet LLC • P.O. Box 361131 • Cleveland, OH • 44136-0019... -
Page 3: Safe Operation Practices
Important Safe Operation Practices WARNING! This symbol points out important safety instructions which, if not followed, could endanger the personal safety and/or property of yourself and others. Read and follow all instructions in this manual before attempting to operate this machine. Failure to comply with these instructions may result in personal injury. - Page 4 Use slow speed. Choose a low enough speed setting so General Service that you will not have to stop or shift while on the slope. Before cleaning, repairing, or inspecting, make certain the Tires may lose traction on slopes even though the brakes blade(s) and all moving parts have stopped.
- Page 5 2 — i ectiOn MpOrtant peratiOn ractices...
-
Page 6: Carton Contents & Hardware Packs
Contents of Carton Before beginning installation, remove all parts from the carton to make sure everything is present. Carton contents are listed below and shown in Fig. 3-1. Two hardware packs are included in this kit and are detailed on the following page. •... - Page 7 CONTENTS OF HARDWARE PACKS This grass collector kit is shipped with two loose hardware packs enclosed. Please check your hardware packs against the illustrations below. The quantities for each item is listed in parenthesis while the part number is listed near each item. Hardware Pack 689-00098 Hardware Pack for 689-00097 712-04065...
-
Page 8: Assembly & Installation
Assembly & Installation Assembling The Bag Support Assembly Assemble Mounting Brackets Locate the upright support bracket and the bagger support To assemble the bagger mounting assembly, locate the hitch assembly. Assemble it by following these steps: bracket kit and follow these steps: Lay the bag support assembly topside down with the Attach the right-hand and left hand rider hitch bracket mounting bracket portion facing upwards. - Page 9 Install the bag support assembly onto the mounting assembly on the tractor by hooking it over the cross mounting bracket outside of the two tabs. See Fig. 4-7. Tabs Top View Figure 4-5 Install the clevis pin (711-0309A) from hardware pack Figure 4-7 689-00097 into the tractor’s hitch and the assembly’s hitch Secure the hanger assembly to the mounting assembly...
- Page 10 Assembling Remaining Bagger Components Install the bagger screen into the bagger cover by first inserting the end closest to the side with the cutout into the Now that the mounting brackets are assembled and are in place mounting hole, as in Fig. 4-10. Make sure to feed the screen on the tractor, follow these steps to assemble the remaining under the lip, as in Fig.
- Page 11 Open Hood by pushing in on the rear, right-side tab with your right hand, as seen in 1 of Fig. 4-15, and lifting the cover with your left hand in the center rear of the bagger cover, 2. Install both grass bags, with the tight mesh side facing Figure 4-12 Figure 4-15 forward, onto the bag support assembly by inserting the...
- Page 12 Attaching Blades Installing the Deck Baffle Note: If the deck is still flipped upside down with the blades WARNING! Always protect your hands while exposed, it may be easiest to flip the deck back over to complete the servicing blades by wearing heavy work gloves or following installation of the deck baffle and chute stop bracket.
- Page 13 Replace the discharge chute and secure with two flange lock nuts (712-04065) included in the hardware pack 689- 00098. Securely tighten the hardware at this time. Attaching Chute Stop Bracket Remove the carriage bolt and lock nut holding the chute stop to the deck.
-
Page 14: Operation
Install the chute adapter onto the chute elbow by lining up Bagger Operation the tabs and sliding the adapter over the chute elbow, as in NOTE: When both grass bags are full, place the tractor on a firm, Fig. 4-23. Secure the chute adapter by installing two ratchet level surface, disengage the PTO, turn the tractor engine off and clips (726-3046), included in hardware pack 689-00098, set the parking brake. - Page 15 This page intentionally left blank...
-
Page 16: Parts List
Twin Rear Bagger 19A70006100 Parts List... - Page 17 Ref. Part Number Description 931-04295 Upper Chute Assembly 931-04292 Double Bagger Cover Assembly 731-06497 Upper Chute Support 731-06504 Bagger Cover Screen 710-0276 Carriage Screw, 5/16-18 x 1.00” 710-3008 Hex Head Screw, 5/16-18 x .75” 711-0309A Clevis Pin, .62” Dia. 631-04300 Bagger Discharge Chute, Elbow 683-0617A-0637 Chute Stop Bracket...
- Page 18 Notes...
-
Page 20: Warranty
Service completed by someone other than an authorized service The limited warranty set forth below is given by Cub Cadet LLC with respect to new merchandise purchased or leased and used in the United dealer.
