Summary of Contents for Kohler LISON 21729T-PP020-01R

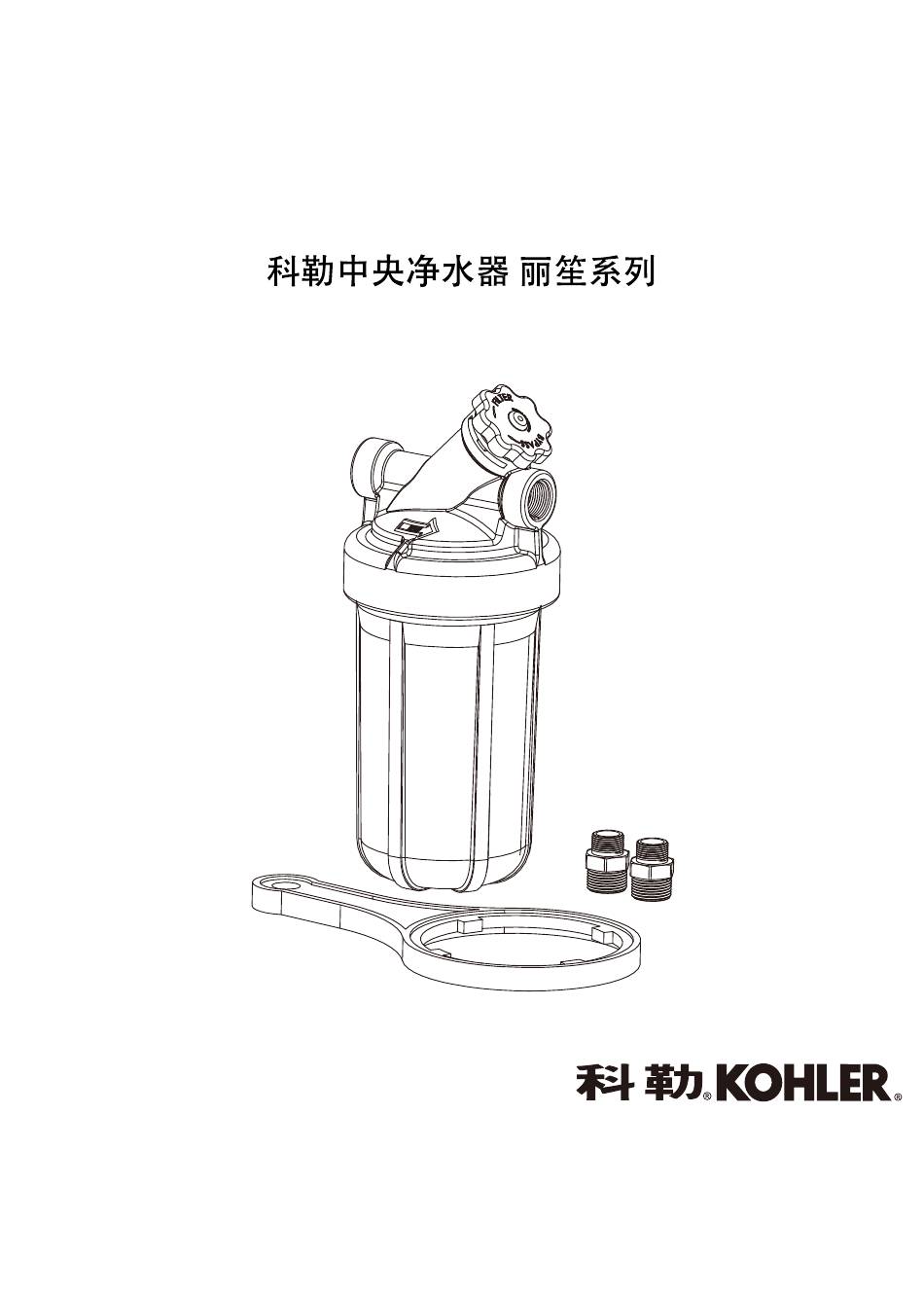

- Page 1 *使用产品前请仔细阅读本说明书并且严格遵照说明书操作, 并请妥善保管以备需要。 安装使用说明书 Installation Guide KOHLER Central-Filter LISON Series 21729T-PP020-01R/21729T-PP010-01R ©版权为 科勒(中国)投资有限公司 所有 © All Copyright for KOHLER (China) investment Co., Ltd. 135671 -T01-B...
-
Page 3: Table Of Contents
PRODUCT SPECFICATIONS 1.PRODUCT FUNCTION 一、 产品功能 科勒牌管道净水器以市政自来水为原水，经滤芯过滤净 Thank you for choosing KOHLER Water product, LISON series is complying with the (Sanitary Standard for Hygienic Safety 化处理后，制得符合卫生部《生活饮用水质处理器卫生 and Function Evaluation on Treatment Device of Drinking 安全与与功能评价规范—一般水质处理器》(2001)要求 Water Filter - General Devices) (2001 Edition) on drinking 的饮用水。... -
Page 4: 三、结构示意图
3. SCHEMATIC DIAGRAM 三、结构示意图 滤瓶盖(含Ø1”旁通阀、减压 钮 )/CAP (Ø1”Bypass,Air releaser) O型密封圈/O-RING 滤芯/FILTER 滤瓶/HOUSING 螺纹接头 (Ø1” NPT转 ؾ”外螺 纹)/FITTINGS (1”NPT to G3/4) 扳手/WRENCH 4.PACKING LIST 四、包装内清单 净水器 CENTRAL-FILTER UNIT 滤芯 FILTER CARTRIDGE WRENCH 扳手 USER GUIDE 说明书 COMPLIANCE CERTIFICATION 1X 合格证 FITTING CONNECTOR 螺纹连接件... -
Page 5: 五、注意事项
If the cap of the housing has been in Δ 该产品滤瓶一般使用寿命约为5年。为保证过滤效 use for longer than this period, it should be replaced 果，请务必选择KOHLER牌该产品匹配的滤芯使 immediately. Date the top of any new cap to indicate 用并定期更换滤芯。 the next recommended replacement date. -
Page 6: 六、安装指南
六、安装指南 6. INSTALLATION INSTRUCTIONS Choose a location on the water line to install the filter. 选择自来水管路上的一个合适的位置来安装净水器。 Select a location that will be easily accessible when 也要考虑这个位置在更换滤芯时是容易且可操作的。 changing filter cartridges. 只连接冷水管道。 Connect to cold water line only. Measure the diameter of the existing pipe to determine 测量现有管道的直径，以确定需要什么尺寸的配件或... -
Page 7: 七、 安装/更换滤芯
七、滤芯安装/ 更换 7.FILTER CARTRIDGE REPLACEMENT The cartridge’s life depends on the local water quality and 滤芯的使用寿命取决于当地水质情况及处理水量。具 the amount of water it purifies. Please refer to the 体的更换周期请参考规格说明，若出水量明显减少或 specification for the specific replacement cycle. Please 净水效果明显下降时，请尽快更换滤芯。 replace the filter if the amount of water is significantly reduced or the effect of water treatment is significantly 顺时针方向旋转二分之一圈旁通阀至停止过滤（此时... -
Page 8: 八、 常用故障诊断及解决方法
DO NOT OVERTIGHEN. 3.Turn on water supply. If there is still leakage or other leaks, please turn off the water supply and contact the KOHLER local service. Leakage of Cap Fittings are not 1.Turn-off the water supply, press the red relief button on the cap to release the... -
Page 9: 十、 产品保修服务
十、产品保修服务指南 10.PRODUCT WARRANTY SERVICE Kohler warrants this water product to be free of 科勒为其产品在正常家庭使用情况下提供自购买 defects in material and workmanship during normal 之日起3年的保修(但必须以付款收据作为凭证)， residential use for three years from date of purchase. 有关详细的保修条件，请参阅包装盒内的单独保 please refer to Warranty Sheet in packing for more 修卡，如果您需要服务或者更多信息，又或者有... -
Page 10: 十一、主要技术参数
十一、主要技术参数 11.PRODUCT SPECIFICATIONS 产品名称 科勒中央净水器丽笙系列/ KOHLER Central-Filter LISON Series 配套滤芯 /CARTRIDGE Product Name CENTRAL-FILTER FOR LIGHT USER: 21731T-R1-01R 科勒牌TW010/HP010/PP010 MODEL: TW010/HP010/PP010 型管道净水器 CENTRAL-FILTER FOR HEAVY USER: 21732T-R1-01R 科勒牌TW020/HP020/PP020 MODEL: TW020/HP020/PP020 型管道净水器 主要成分或部件 聚丙烯 聚丙烯滤壳 (1套） HOUSING Key Media/Parts 湿式成型活性炭净水滤芯/ 5μm孔径/活性炭纤维...
