* 使用产品前请仔细阅读本说明书并且严格按照说明书操作，并请妥善保管以备需要 *

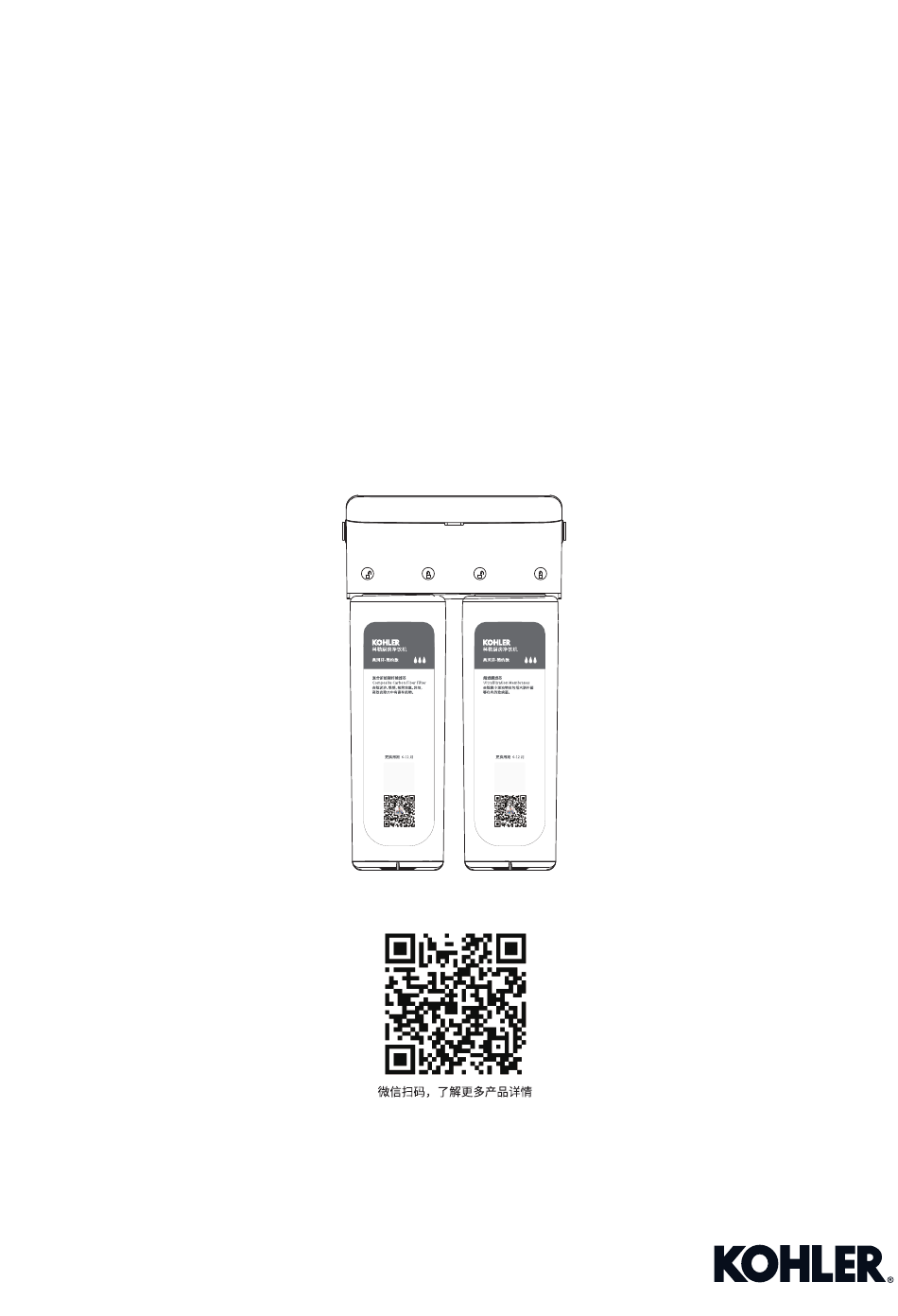

Installation Guide
产品安装使用说明书

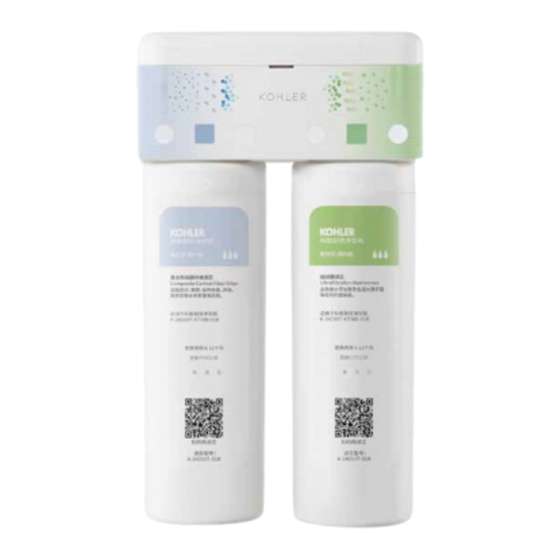

Aquifer Water Filtration System
科勒厨房净饮机奥珂芬系列
K-24210T-KT300-01R/K-24210T-KT310-01R
FREE SERVICE HOT LINE: 800 820 2628
MOBILE:400 820 2628 (China area only)
免费服务热线： 800 820 2628
手机用户：400 820 2628 （ 仅限中国地区）
KOHLER CHINA INVESTMENT CO., LTD
NO.158, JIANG CHANG SAN ROAD,
JINGAN DISTRICT, SHANGHAI, PRC
POST CODE: 200436
科勒（中国）投资有限公司 上海市静安区江场三路158号 邮编：200436
1400467-T01-C
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Kohler K-24210T-KT300-01R
Summary of Contents for Kohler K-24210T-KT300-01R
- Page 1 FREE SERVICE HOT LINE: 800 820 2628 MOBILE:400 820 2628 (China area only) 免费服务热线： 800 820 2628 手机用户：400 820 2628 （ 仅限中国地区） KOHLER CHINA INVESTMENT CO., LTD NO.158, JIANG CHANG SAN ROAD, JINGAN DISTRICT, SHANGHAI, PRC POST CODE: 200436 科勒（中国）投资有限公司 上海市静安区江场三路158号 邮编：200436...
- Page 2 尺寸图 ROUGHING-IN Reference Value UNIT: mm 参考值 单位：毫米 Refer to Service Parts Page for the Exploded Diagram. 结构示意请参见维修零件图。 Kohler reserves the right to change marked dimensions without prior notice. 科勒公司保留随时变更图中标示尺寸的权利，无需另行通知。 1400467-T01-C © Copyright Kohler China Investment Co., Ltd. © 版权为科勒（中国）投资有限公司所有...
- Page 3 准备安装 GETTING STARTED 装箱清单 Packaging List 本系列产品的主体部件清单： Main Parts Included: 主体基座 Main Base 第一级滤芯 Filter Cartridge Level1 第二级滤芯 Filter Cartridge Level2 本系列产品的配件清单： Other Parts Included: 供水三通阀（1 个） Water Supply T - Valve (1 pcs) 3 分 PE 软管（2 根） 3/8" PE Tubing (2 pcs) 快接管插片（2 个）...
- Page 4 Installation Manual for tools and detailed installation steps of 水龙头连接口为 3 分管快接接头。 ） （图 1） water filtration faucet. For water filtration faucet other than Kohler brand, please make sure the inlet with a 3/8" adapter). (Figure 1) Figure 1 图 1 1.
- Page 5 Step 2 Mount the Filtration System • Align the mounting holes of the filter head at the determined mounting loaction (Filter bottom from ground should be more than 51mm), mark it with a permanent marker ; predrill the mounting holes, partially thread the Screws into the cabinet wall, and slide the filter head over the Screws, then tighten it to secure.
- Page 6 步骤四：安装更换两级滤芯 Step 4 Installing or Replacing Filter Cartridge 注意：每次更换滤芯之前，请关闭冷水进水阀。 NOTE: Before changing the filter, please make sure the cold water valve is turned off. 去掉滤芯头部的防尘盖。 • • Remove and discard the dustproof cap (sanitary protective cap) from the cartridge; 检查所有涉水部件的 O 型圈无缺失脱落且在原有位置。 •...
- Page 7 如发现系统漏水，请第一时间关闭进水总阀门，并联系科 • • If leaks occur and persist on system, please first turn off 勒公司或当地授权经销商上门。 the water supply valve. Call Kohler-Free Technical Support line directly or your local distributor authorized by Kohler; 当提示器寿命警示，请更换一下对应型号滤芯。 • • Please replace filter when prompted by the indicator.
- Page 8 产品性能参数表 PERFORMANCE DATA SHEET K-24210T-KT300-01R K-24210T-KT310-01R Description Aquifer Water Filtration System Aquifer Water Filtration System 产品描述 厨房净饮机奥珂芬系列 厨房净饮机奥珂芬系列 科勒牌 KT300型厨房净饮机 科勒牌 KT310型厨房净饮机 Name 产品名称 Model 产品型号 KT300 KT310 MOH Certificated System Capacity 额定总净水量 3000 L 2800 L MOH Certificated Flow Rate 净水流量...
