* 使用产品前请仔细阅读本说明书并且严格按照说明书操作，并请妥善保管以备需要 *
FREE SERVICE HOT LINE: 800 820 2628
KOHLER CHINA INVESTMENT CO., LTD
1461397-T01-B

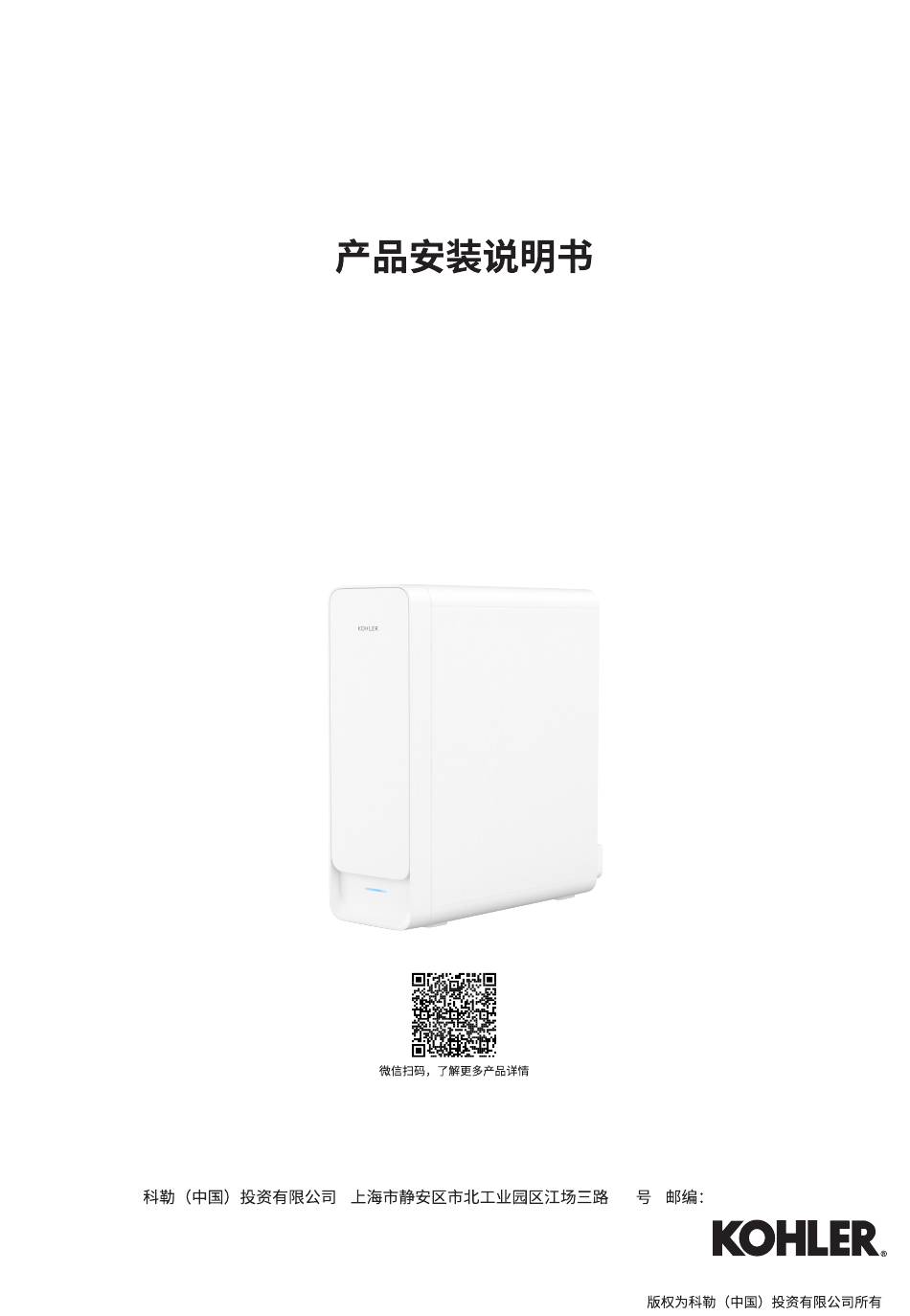

Installation Guide
Kitchen Water Filtration RO System
科勒厨房反渗透净饮机
K-32435T-KP040-01R
K-32435T-KP060-01R
科勒牌 RO400-B 型反渗透净水机
科勒牌 RO600-B 型反渗透净水机
免费服务热线： 800 820 2628
MOBILE:400 820 2628 (China area only)
手机用户：400 820 2628 （ 仅限中国地区）
NO.158, JIANG CHANG SAN ROAD,
158
© Copyright Kohler China Investment Co., Ltd.
©
200436

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the K-32435T-KP040-01R and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kohler K-32435T-KP040-01R

Summary of Contents for Kohler K-32435T-KP040-01R

  • Page 1 FREE SERVICE HOT LINE: 800 820 2628 MOBILE:400 820 2628 (China area only) 免费服务热线： 800 820 2628 手机用户：400 820 2628 （ 仅限中国地区） KOHLER CHINA INVESTMENT CO., LTD NO.158, JIANG CHANG SAN ROAD, 200436 © Copyright Kohler China Investment Co., Ltd. 1461397-T01-B ©...

  • Page 2: Before You Begin

    0.1-0.4MPa pressure exceeds 400kPa, please install pressure 0.4MPa limiting valve. (Please consult plumbing professionals or dealers authorized by Kohler for water pressure measurement). CAUTION! Do not install where water hammer conditions may occur. If water hammer conditions exist you must install a water hammer arrester.
  • Page 3 Welcome To Your New World Of Elegant Living With KOHLER Kitchen And Bath Water System. System function information: this reverse osmosis system use composite polypropylene & activated carbon block and reverse osmosis membrane as purification unit to remove Turbidity, Organic matters, Dissolved heavy metals and microorganisms from municipal tap water, That will help you to improve drinking water quality.

  • Page 4: Electrical Diagram

    ELECTRICAL DIAGRAM Inlet Solenoid Valve Drain Solenoid Valve Pump PCBA Power Adapter Display Board 220VAC/50HZ 24VDC Leakage Detection Inlet TDS Outlet TDS Temperature Sensor GETTING STARTED PACKAGING LIST Main Parts Included: Kitchen Water Filtration RO system PPC Filter High Efficacy RO Membrane Installation Parts Included: 3/8"...

  • Page 5: Installation

    (Refer to Water filtration Faucet Installation Manual for tools and detailed installation steps of water filtration faucet. For water filtration faucet other than Kohler brand, please make sure the inlet with a 1/4" adapter). (Figure 2) Figure 2...
  • Page 6 电源 漏水保护器 designed to accept the drain tubing from Power Cord the RO system. Kohler offers a saddle kit, Kitchen Water Filtration RO System PN 1396876, designed for φ50mm undersink drain plumbing (Figure 4).
  • Page 7 If the power cord from the transformer to CAUTION! the unit looks or becomes damaged, the cord and transformer should be replaced by a Kohler Service Agent or similarly qualified person in order to avoid a hazard. Do not touch the power plug with a wet CAUTION! hands.

  • Page 8: Performance Indicator

    Step 6: System Test Turn off the water production, Keep the cold water supply valve turned on. Check all fittings and tubings for leaks. If it leaks, see Troubleshooting. Complete the installation and cleanup. PERFORMANCE INDICATOR Plug in Flush • Short press button ‘ ’, unit gives a Plug IC self-test Status: beep after release.
  • Page 9 第一级滤芯强制冲洗 Filter ‘I’ Reset Filter ‘I’ Force Flush • Long press button ‘　’>5s , after • After reset filter I, after the system will do releasing the button with a beep Auto Flush 5 minutes with Flush symbol sound, then the Filter ‘　’ indicator blinking.
  • Page 10 • If leaks occur and persist on system, please first turn off • the water supply valve. Call Kohler-Free Technical Support line directly or your local distributor authorized by Kohler; • Please replace filter when prompted by the indicator.

  • Page 11: Replacing Filter Cartridges

    “ ” to fix. 第一级 First stage 第二级 Second stage Please replace filter when prompted by the indicator System Model K-32435T-KP060-01R K-32435T-KP040-01R PPC filter First Stage K-32439T-R1-01R K-32439T-R1-01R High Efficacy Reverse Osmosis Membrane Second Stage K-32439T-R2-01R K-32440T-R2-01R Note: Filtration performance varies depending on local water quality.

  • Page 12: Performance Data Sheet

    Purified Water Electrical Requirements/ Electrical Power Consumption 220V~,50Hz, 58W 220V~,50Hz, 72W Kohler China Investment Co.,Ltd Company Name & Address No.158, Jiang Chang San Road, Jingan District, ShangHai, PRC 科勒 （中国） 投资有限公司 / 上海市静安区市北工业园区江场三路158号 Zhejiang Aibote Environmental Protection Technolog Co.,Ltd Actual Production Factory & Address No.

  • Page 13: Troubleshooting Guide

    Pump or Solenoid Valve failure. Contact Kohler service. Note: Should service, adjustment or trouble-shooting information be needed which is not covered in the Use Guide, contact Kohler service and dealer. WARNING! Electrical shock hazard! Unplug the unit before maintaining. 1461397-T01-B...
  • Page 14 X : Indicates that at least one of the homogeneous substance in the material composition is below the high limits of the current requirements in GB/T 26572. The product "service life for environment protection" is 10 years; Kohler Company will specify product service life based on product characteristics. The product "service life for environment protection" is only effective when the product is used as described in the product specifications.
