Summary of Contents for HeyCafe Buddy

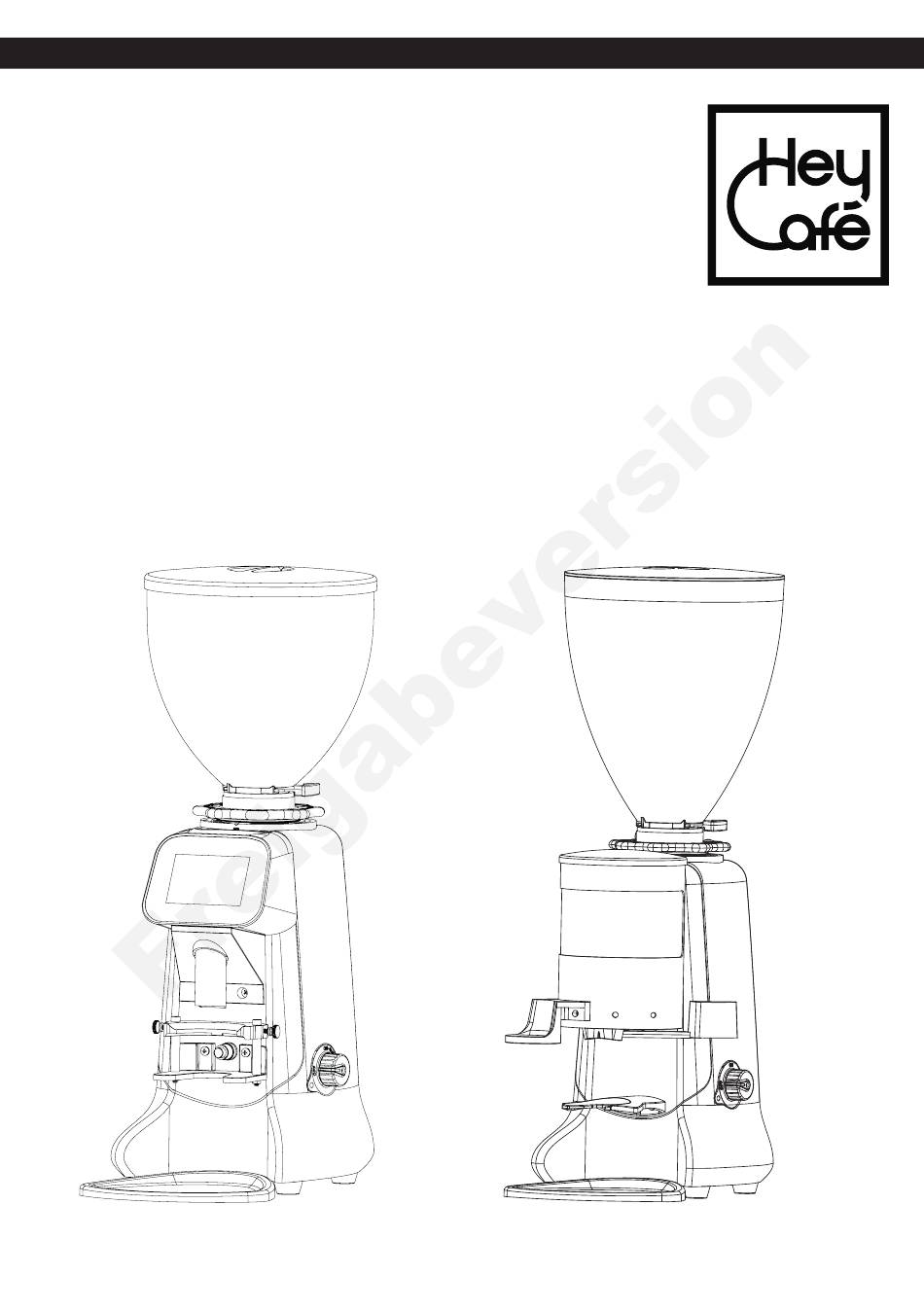

- Page 1 Operating manual Single Espresso Grinder Buddy / Buddy Doser Buddy Buddy Doser...
-
Page 2: Overview
Single eSpreSSO grinder Overview Buddy... - Page 3 Buddy / B uddy doser | en Buddy Doser...
-
Page 4: Scope Of Delivery
Single eSpreSSO grinder Scope of delivery Designation Bean hopper (with lid) Sliding valve Bean hopper intake On/Off switch power cable (with power plug) Trigger switch drip tray portafilter support portafilter intake Screw for adjusting the portafilter support (left and right), 2× Spout Touchscreen (display) grinding degree adjustment (with grinding degree scale) -
Page 5: Table Of Contents
Buddy / B uddy doser | en Buddy / Buddy Doser Contents Overview ......2 grinding process Buddy ....13 Switching on the grinder ....13 Scope of delivery .....4 Setting or changing General Information ..6 the recipe/grinding time ....14 grinding espresso beans ....14 reading and retaining the operating manual .... -
Page 6: General Information
Single espresso grinderBuddy or Buddy Doser will only be referred to as "grinder" in the following. Keep this operating manual for future reference. Also pass this operating manual on to subsequent owners and users of the grinder. -
Page 7: Safety
Buddy / B uddy doser | en eTl listed seal of approval: products marked with this symbol meet the requirements of electrical product safety in the United States of America. products marked with this symbol meet the criteria required by the nSF (national Sanitation Foundation) regarding cleanliness and hygiene in the food industry. - Page 8 Single eSpreSSO grinder – Do not use the grinder if you notice any visible damage or if the power cable or plug is faulty. – If the grinder power cable is damaged, it must be replaced by the manufacturer or by qualified personnel, in order to avoid hazards.
- Page 9 Buddy / B uddy doser | en – Do not open the grinder casing; leave repairs to the experts. If repairs are required, please contact a specialist workshop. In the event of unauthorised repairs, faulty connection or incor- rect operation, all liability and guarantee claims are excluded.
-
Page 10: Before Commissioning
The shot sizes, i.e. the grind quantities per shot, are defined by the grinding time in the Buddy grinder model. The user can either use one of the two recipes (Single Shot / double Shot) for the grinding process or he or she can control the grinding time manually (Manual Grinding). -
Page 11: Check The Grinder And Scope Of Delivery
Buddy / B uddy doser | en Check the grinder and scope of delivery 1. remove the grinder from the packaging. 2. Check that the delivery is complete. 3. Check for damage to the grinder or the individual parts. if this is the case, do not use the grinder. Contact your dealer (see chapter „Maintenance and service“). -
Page 12: Operation
Single eSpreSSO grinder 4. push the portafilter support upwards until the portafilter fits exactly between the portafilter support and the portafilter intake. if the supplied portafilter support does not fit, contact your dealer (see chapter „Maintenance and service“). 5. Hold the portafilter support in position and retighten the two screws for adjusting the portafilter support (left and right) clockwise. -
Page 13: Changing The Espresso Bean Type
Buddy / B uddy doser | en Changing the espresso bean type 1. Close the bean hopper (1) to the grinding mechanism by pushing in the sliding valve (2). 2. Use the Manual Grinding function to grind the espresso beans remaining in the grinder until the grinder idles. -
Page 14: Setting Or Changing The Recipe/Grinding Time
The preset break time is 5 seconds. Grinding process Buddy Doser Grinding espresso beans 1. Make sure that you have inserted the power plug (5) in a properly installed earthed socket. -
Page 15: Removing The Ground Coffee
Buddy / B uddy doser | en Removing the ground coffee 1. push the portafilter all the way into the portafilter support (8) (see Fig. B). 2. pull the dispensing lever (20) forwards as far as it will go, in order to dispense the ground beans into the portafilter. -
Page 16: Cleaning
Single eSpreSSO grinder Cleaning CAUTION! Risk of injury! When moved, the grinder may fall down and injure you. – Always place the grinder on a stable surface that is safe from tipping over. – If necessary, ask another person to help if the grinder is too heavy. -
Page 17: Cleaning The Housing
Buddy / B uddy doser | en 3. Clean the installation surface and the underside of the grinder with a damp cloth and dry the installation surface when you are done. The surfaces must be dry and free of oil and grease. -
Page 18: Cleaning The Bean Hopper
Cleaning the grinder mechanism • The manufacturer recommends the use of grindZ grinder cleaner. at www.heycafe.com. You will find more information on grindZ • The grinder should be cleaned every 2-5 days. 1. Close the bean hopper (1) to the grinding mechanism by pushing in the sliding valve (2). -
Page 19: Troubleshooting
Buddy / B uddy doser | en 11. grind the same amount of espresso beans as you did grinder cleaner in order to remove leftover cleaning particles. 12. dispose of the ground grinder cleaner and the ground espresso beans in the commercial/domestic waste. -
Page 20: Technical Data
Technical data Model: Buddy Buddy Doser Voltage / frequency: 220–240 V; 50 Hz 220–240 V; 50 Hz 220–240 V; 60 Hz 220–240 V; 60 Hz 110 V; 60 Hz 110 V; 60 Hz 100 V;... -
Page 21: Disposal
Buddy / B uddy doser | en Disposal Disposing of the packaging dispose of the packaging by correctly sorting the recyclable materials. dispose of card and cardboard as waste paper and film as recyclable material. Disposing of the grinder electrical appliances are labelled with the symbol opposite. - Page 22 info@hemrogroup.com HEMRO INTERNATIONAL AG +41 44 864 18 00 Länggenstrasse 34 CH-8184 Bachenbülach, Switzerland...
